assembly instructions

Family: Anna Item No. 5784 CM/SE

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. Remove mounting plate (1) from fixture backplate (5) by removing the 4 flathead
screws (4) - see Drawing 1.
2. Take main mounting plate (1) and slide the wires from the junction box through the
large center hole. Line up the curved slots (3) with the threaded holes in the junction
box. Using 2 screws (2) attach the main mounting plate to the junction box.
• Make sure mounting plate tabs are 90 degrees to the ceiling line - see Drawing 2.

1. Mount the fixture by sliding the backplate (5) over the mounting plate (1) - see
Drawing 1.
2. Attach the backplate (5) to the fixture using the screws (4) that were removed prior.

1. To install glass, remove threaded socket ring (C) from socket (A) - see Drawing 3.
2. Place glass (B) over exposed section of socket (A).
3. Thread socket ring (C) onto socket (A) to secure glass (B).
4. Repeat steps 1-3 for remaining glass.
5. Fixture can now be lamped accordingly.

*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the fixture glass.

start here

5784

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

5

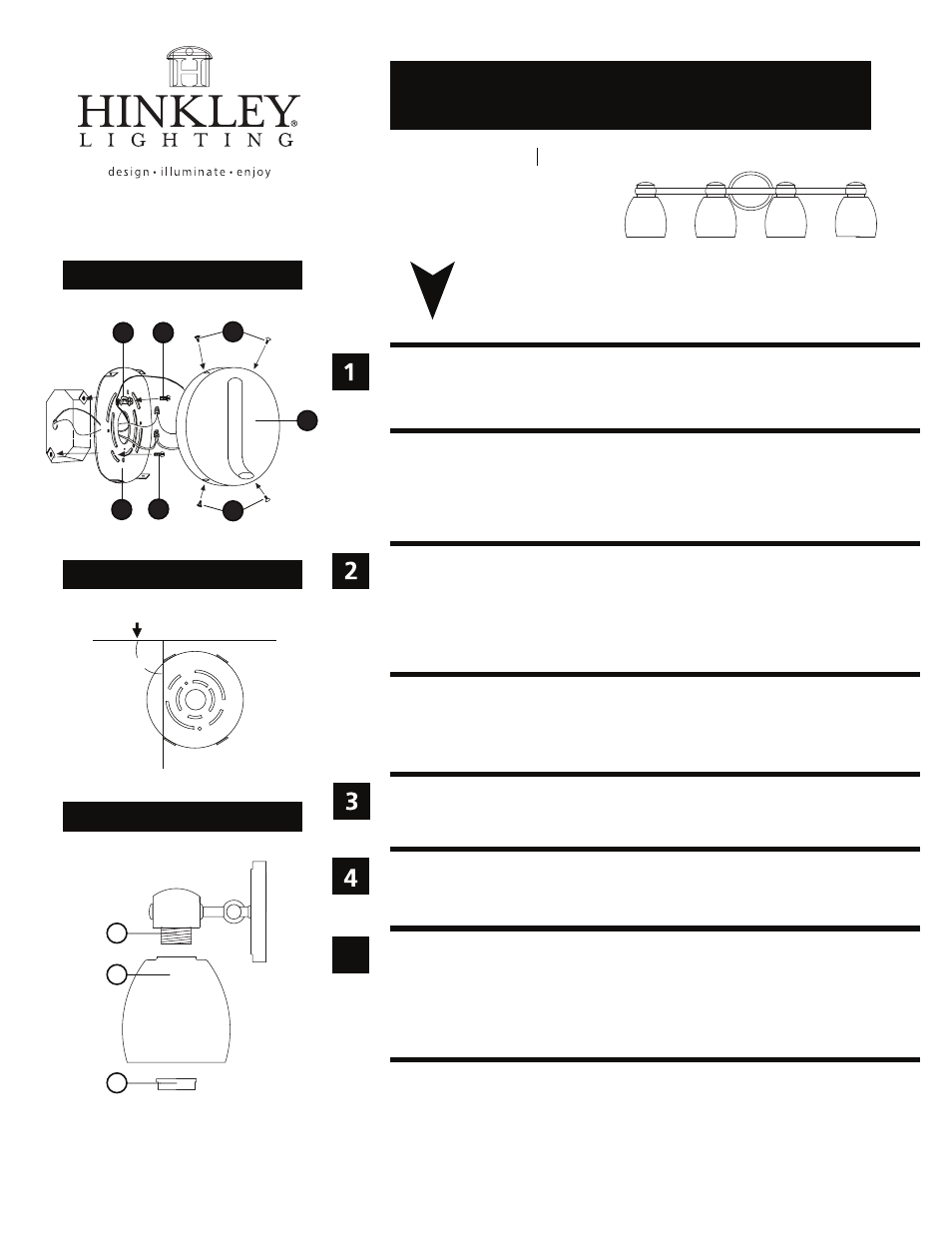

Drawing 1 - Fixture Mounting

Drawing 2 - Mounting Plate

Drawing 3 - Glass Installation

ceiling line

fixture

plate

90°

1

2

22

23

4

4

5

C

B

A

2.7.08

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
