Hinkley Lighting ATLANTIS 1646 - Manual

assembly instructions
Family: Atlantis Item No. 1645/1646
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prepare mounting strap (A) by threading the two 8-32 x 1 mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (E)
in the backplate (F).
2. Attach mounting strap (A) to junction box (J) by threading 2 screws (C) provided
into holes (D) of junction box (J).
1. To prepare fixture for mounting, remove bottom panel (1) by removing the four
corner screws (2). Set parts aside to be used later - see Drawing 2. Note: on 1645
fixtures, the bottom panel is recessed into the body.
2. To mount fixture, line up holes (D) in backplate (E) and slide fixture over both screws
(B) - see Drawing 1.
3. While holding fixture in position, thread the two ball knobs (F) onto end of screws
(B) and tighten to secure fixture.
1. Bottom of fixture can now be lamped accordingly.
2. Re-place panel (1) removed earlier and screws (2) to complete assembly - see
Drawing 2.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then lamping the fixture.
start here
1645 1646
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 1645/1646 fixture is 75 watts

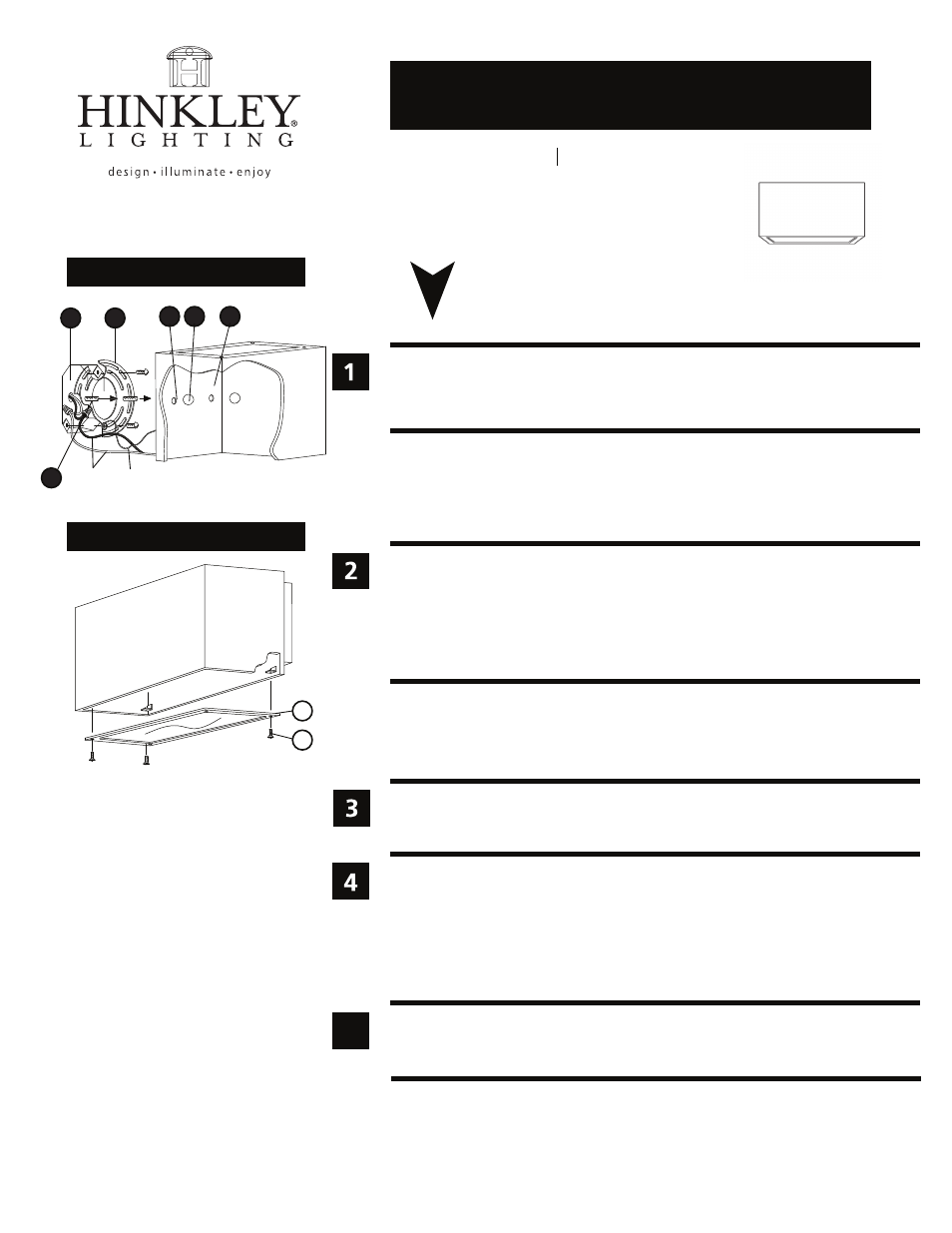

Drawing 1 - Fixture Mounting
Drawing 2 - Fixture Lamping
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
B
1
2
J A E F D
10.28.10
lead
wires
ground
wire
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
