Hinkley Lighting BRANTLEY 4631BN - Manual

assembly instructions
Family: Brantley Item No. 4631
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
1. Hang the fixture by slipping the holes (D) in the ceiling pan (1) over the screws (B)
in the mounting strap (A) - see Drawing 2.
2. Thread on ball knobs (F) to secure fixture to the ceiling.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
hanging the fixture from the ceiling, and then installing the glass.
start here
4631
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

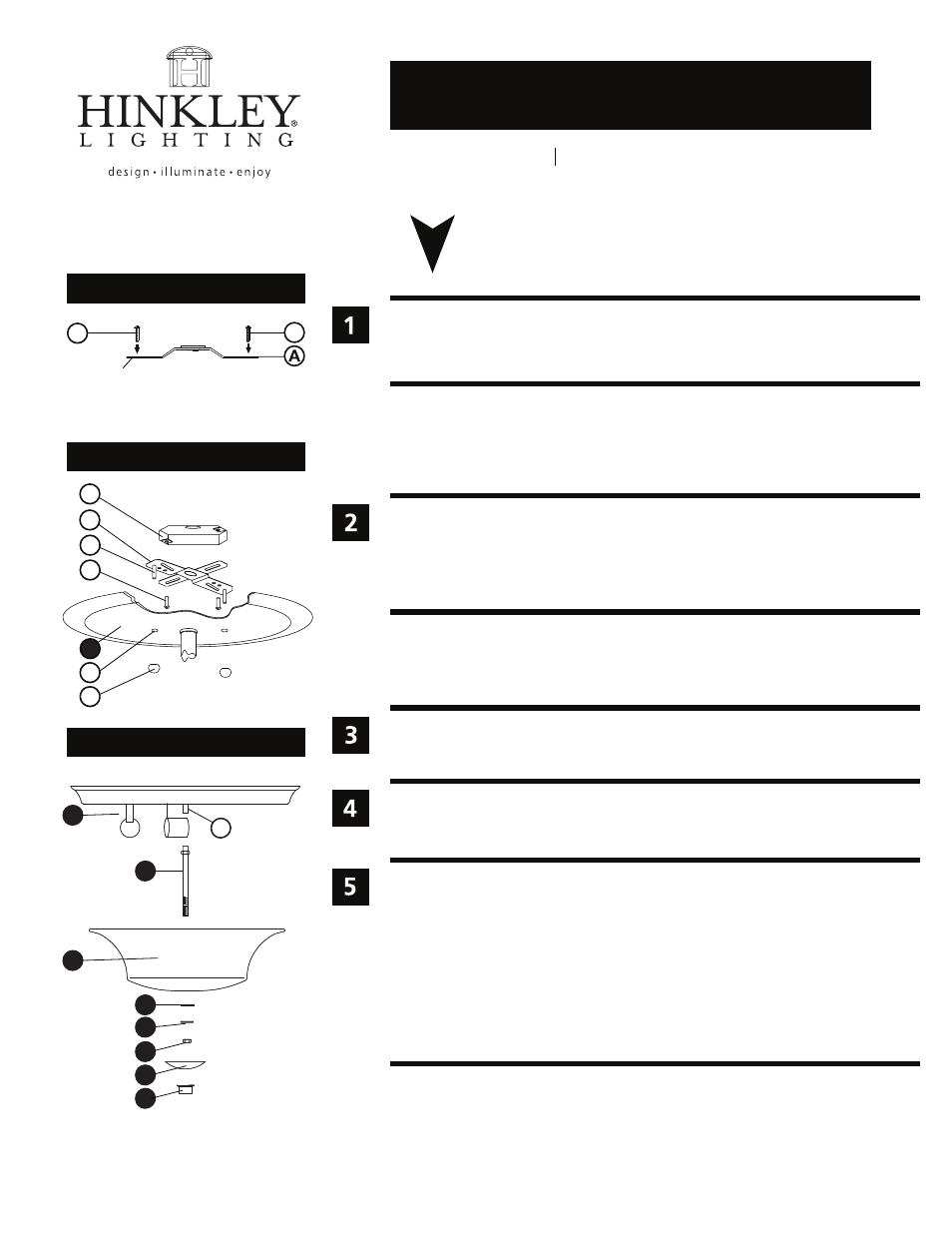

Drawing 2 - Fixture Mounting
Drawing 3 - Glass Installation
B
D
F
J
C
A
1
Drawing 1 - Strap Detail
B
(side view)
gull wing
bracket
B
09.16.09
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1. Prepare gem strap (A) for mounting by threading two screws (B) provided into
back of gull wing bracket of gem strap (A) - see Drawing 2.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the ceiling pan (1) - see Drawings2 and 3.
2. Mount gem strap (A) to junction box (J), using the two 1” screws (C) provided.
1
3
2
4
6
7
8
5
E
1. Prior to installing the glass, fixture can be lamped accordingly.
2. Thread center stem (2) into nipple (E) - see Drawing 2.
3. To install glass, slip glass (3) onto center stem (2) and hold in position.
4. Slip rubber washer (4) onto center stem (2) followed by metal washer (5) and hold in
position.
5. Thread hex nut (6) onto center stem (2) and tighten up against glass (3).
Note: Hand tighten only. Over tightening could cause glass damage.
6. Slip cap (7) and thread finial (8) onto center stem (2) and tighten.
Note: Hand tighten only. Over tightening could cause glass damage.
