Hinkley Lighting PANDORA FR42400BRC - Manual

FR42400BRC
PANDORA
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first installing the mounting strap to
the junction box, making all necessary electrical connections, mounting the fixture to
the wall and then attaching fixture glass.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1 Prepare mounting strap (a) by threading the two longest mounting screws (b)
into the back of the mounting strap (a), making sure the holes into which the
screws are threaded match the spacing of holes (d) in the backplate (e) - See
Drawing 1.
2 Attach mounting strap (a) to junction box (j) using two screws (c).
3 Make electrical connections from supply wire to fixture lead wires. Refer to
instruction sheet [FRIS18] and follow all instructions to make all necessary
wiring connections. Then refer back to this sheet to continue installation of
this fixture.
4 To mount fixture, slip the two mounting screws (b) through the two mounting
holes (d) in the backplate (e).
5 While holding fixture in place, thread the two ball knobs (f) onto the end of the
mounting screws (b), and tighten.
STEP 2

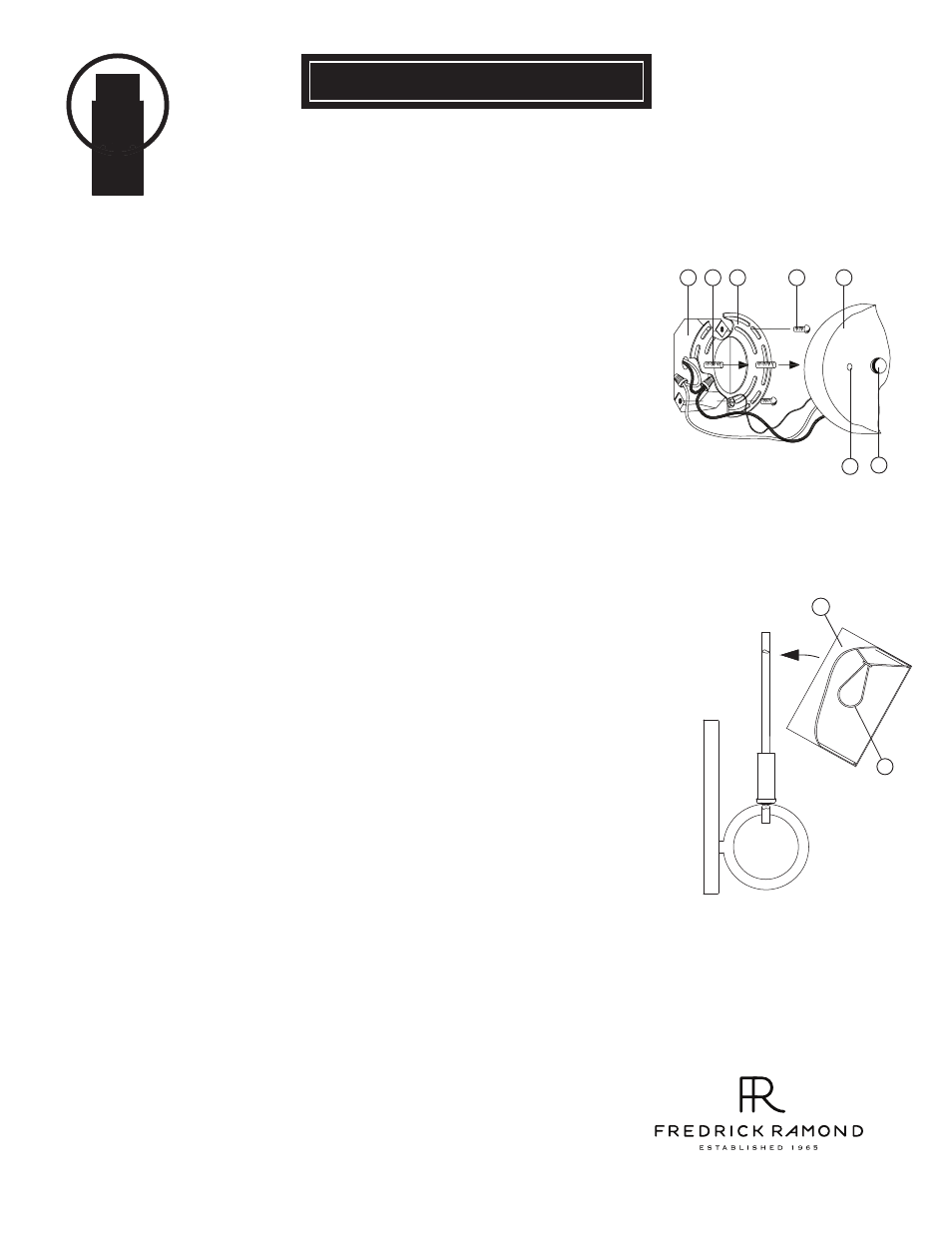

[DRAWING 1]
[DRAWING 2]
j
Bulbs: 60 W CAND. Replacement Parts: SHADE: R42400SH
b a c e
f
06.01.11
800.421.3517 WWW.FREDRICKRAMOND.COM
1
2
1
Fixture can be lamped accordingly at this point. It is recommended that flame
tip candlelabria bulbs NOT be used, since the flame tip may interfer with the
shade setting properly on the fixture - see Drawing 2.
To attach shade (1) turn shade so inside bulb clip (s) is perepndicular to the
outside of the fixture. Spread bulb clip (s) and slip onto bulb. Shade can now
be adjusted.
d
s
