assembly instructions

Family: Castelle Item No. 1397

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

Prior to assembling the main body, fixture can now be lamped accordingly.

2. To assemble main body, take the main body assembly (1) and attach roof strap (2)
using ball knobs (3) - see Drawing 2.

Slip roof (4) over nipple (6).
Thread top finial (5) onto top of fixture to secure roof (4).

*** The construction of this fixture will be accomplished by first mounting main
body of the fixture to pier top, making all necessary electrical connections and
then assembling the main body.

start here

1397

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 1397 fixture is 100 watts per bulb.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

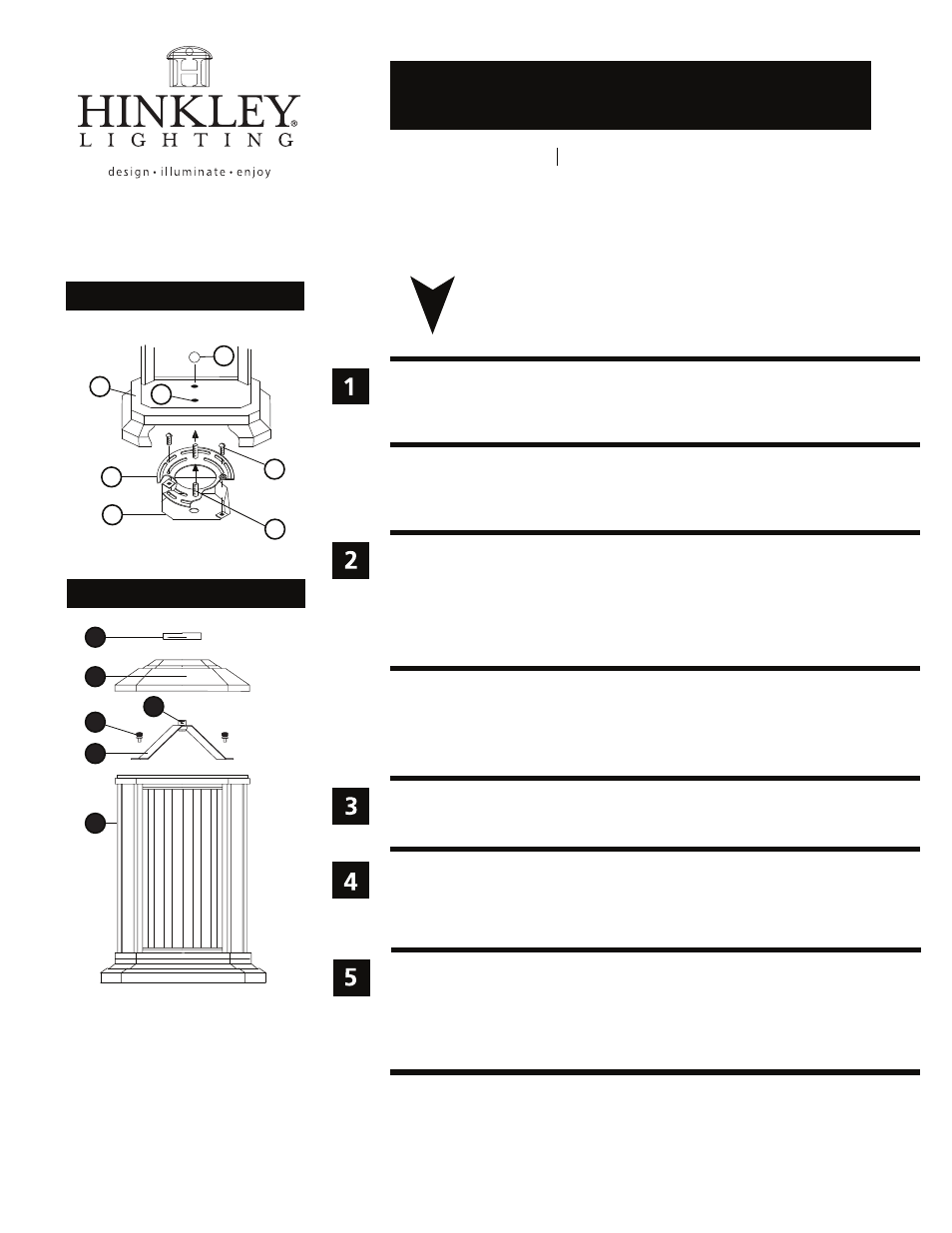

Drawing 1 - Fixture Mounting

Drawing 2 - Fixture Assembly

1

2

6

4

5

3

11.4.10

B

J

A

E

F

D

C

1. To mount fixture, line up holes (D) in baseplate (E) and slide fixture over both screws
(B) - see Drawing 1.
2. While holding fixture in position, thread the two ball knobs (F) onto end of screws
(B) and tighten to secure fixture.

1. Prepare mounting strap (A) by threading the two 8-32 x 1 mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.

• Be sure the holes into which the screws are threaded match the spacing of holes (E)
in the baseplate (F).
2. Attach mounting strap (A) to junction box (J) by threading 2 screws (C) provided
into holes (D) of junction box (J).

1.

3.

4.
