- 1 -
____ Assembly Instructions ____
Item No. 3285
start here
1. Find a clear area in which you can work.
2. Unpack Fixture and glass from carton.
3. Carefully Review Instructions Prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
stems to the main body, attaching the mounting strap to the junction box,
making all necessary electrical connections, hanging the fixture from the
ceiling, installing the shade, and then installing the glass lens.
Drawing 2 – Glass Installation
SAFETY WARNING: READ WIRING AND GROUNDING
INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS.
TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW
WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR
LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

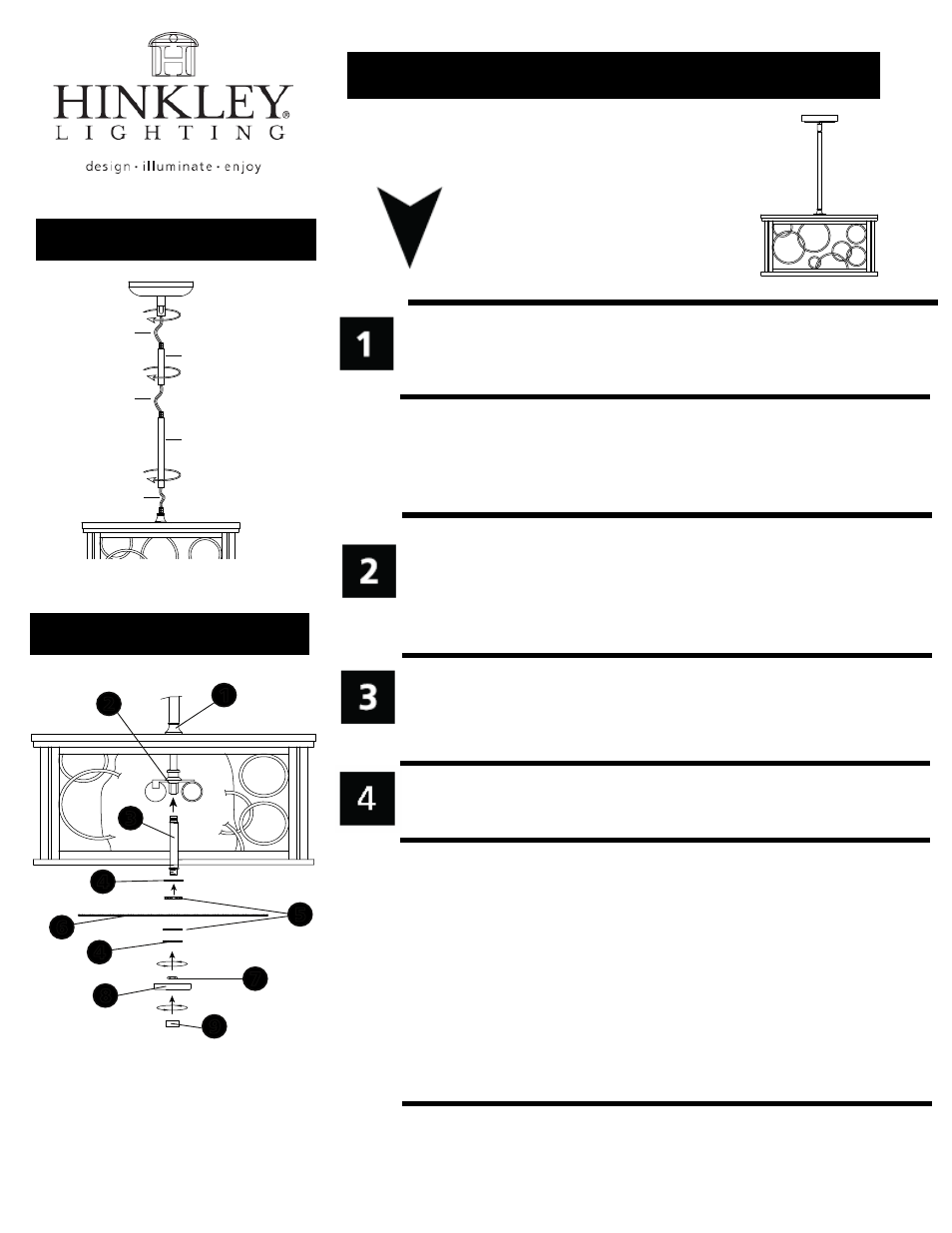

Drawing 1 – Mounting Detail
1. Determine the desired height the chandelier will be installed at.
2. The fixture is supplied with a variety of stem lengths. Determine what combination
of stems are needed to achieve desired length - see Drawing 1.
3. Slip stems over wire and thread first stem onto top of chandelier. Repeat this process
until all required stems are threaded together.
4. Slip wire through center of canopy swivel and thread onto stem assembly.
stem
wire
wire
wire
stem
Drawing 1 – Stem Installation
3285
01.01.13
1. Fixture is ready for installation. Please follow instruction sheet (IS19-93) to
continue assembly.
2. Return to this section of the instruction sheet for glass installation.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1
2
3
4
5
6
7
8
9
NOTE: Fixture can be lamped accordingly prior to glass installation.
1. To install glass, first thread center tube (3) into coupler (2) locked in the center of
the socket assembly (1) - see Drawing 2.
2. Slip flat metal washer (4) onto center tube (3) followed by rubber washer (5).
3. Slip center hole in glass (6) onto center tube (3) and hold in position.
4. Slip second rubber washer (5) onto center tube (3) and up against glass (6),
followed by second flat metal washer (4). Hold parts in position.
5. Thread on hex nut (7) and tighten to secure glass.
6. Slip cap (8) onto center tube (3) and hold in position, then thread on knob (9)
and tighten to secure parts.
