Hinkley Lighting PANDORA FR42405BRC - Manual

FR42405BRC
A SSEMBLY INSTRUCTIONS
STEP 1
STEP 2

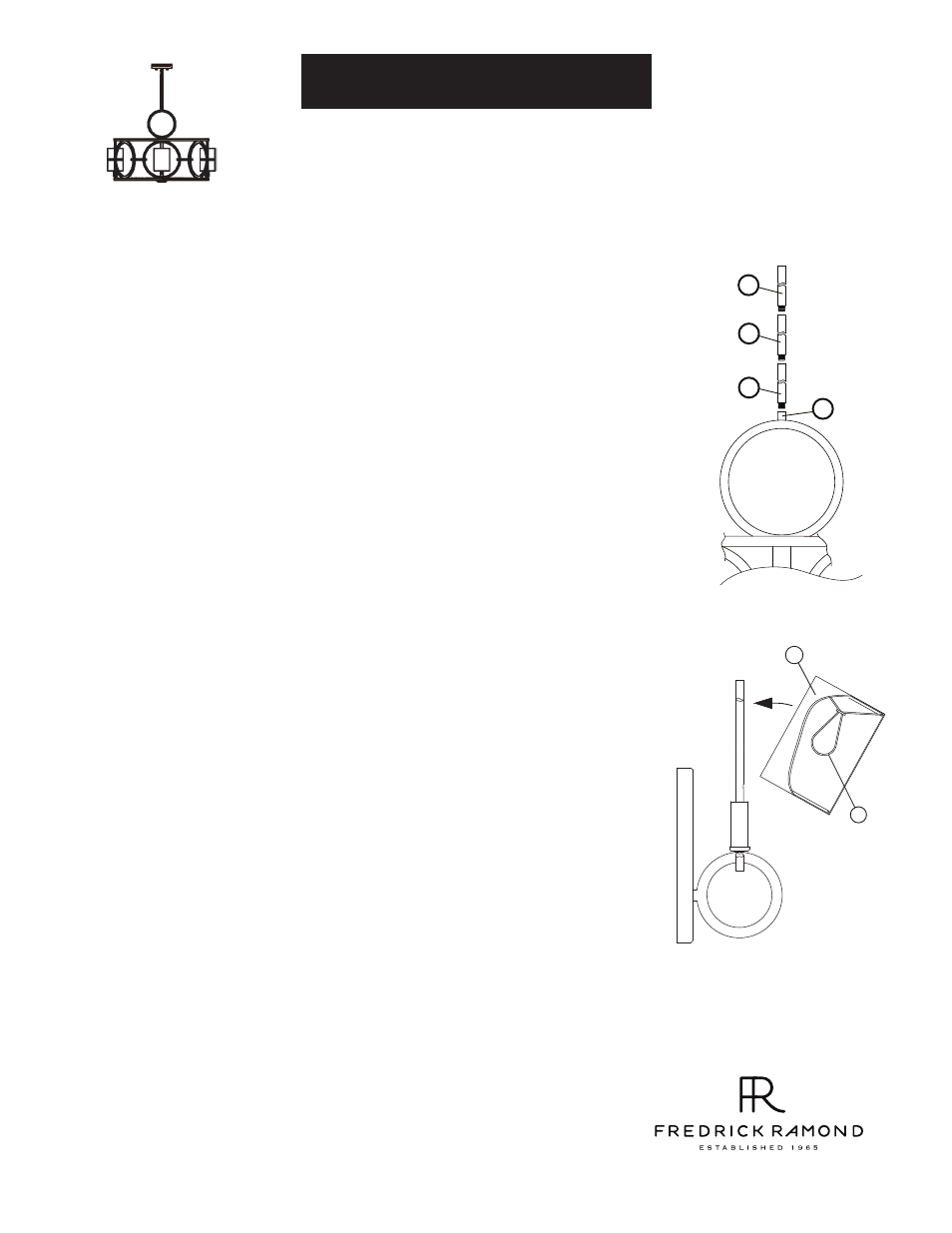

[DRAWING 1]
[DRAWING 2]
Bulbs : 60W CAND. Replacement Parts: SHADE: R42400SH
06.01.11
800.421.351 7 WW W.FREDRICKRA MO ND.CO M
B
C
A
C
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
1 Determine the overall length you will need the assembled fixture to be.
2 Determine what stems will be needed to achieve the overall length you
require. (Additional stems are available and can be ordered. Ask your local
Fredrick Ramond representative or visit ww w.fredrickramond .com for
information).
3
and threading it into coupler (A) - see Drawing 1.
4 Continue adding stems (C) in this fashion until the desired lenght is achieved.
[IS-19-91] supplied and then refer back to this sheet for instruction on
Install first stem (b), threaded end first, by slipping it along supply wire
To complete fixture installation, please refer to mounting instruction sheet
completing the fixture assembly.
5
PANDORA
1
2
Fixture can be lamped accordingly at this point. It is recommended that flame
tip candlelabria bulbs NOT be used, since the flame tip may interfer with the
shade setting properly on the fixture - see Drawing 2.
To attach shade (1) turn shade so inside bulb clip (s) is perepndicular to the
outside of the fixture. Spread bulb clip (s) and slip onto bulb. Shade can now
be adjusted.
1
s
Assembly of this fixture will be accomplished by first, determining the lentgh of stems
required, attaching the mounting strap to the junction box, making all necessary electrical
connections, hainging the fixture from the ceiling, and then installing the shade.
