Hinkley Lighting STOWE 4724MC User Manual

Start here, Assembly instructions

background image

assembly instructions

Family: Stowe Item No. 4724 MC

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling the main
body of the fixture, installing the mounting hardware, making all necessary electrical
connections, hanging the fixture from the ceiling, and then installing the glass.

start here

4724

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

1. To assemble main body, thread center stem (B) into coupler (A) slip parts (1), (C),
(D), and (E) over center stem (B). Thread hex nut (F) onto center stem (B) but do not
tighten.

2. Slip stud (I) of upright (3) into hole (J) located on crossbar of cluster assembly (2).
3. Thread ball knob (5) onto end of stud (I) to secure upright (3).

4. Align holes in top body (D) with holes in top of uprights (3). Rotate top of body (D)
if necessary. Tighten hex nut (F). Slip cap (G) onto center stem (B), then thread loop (H)
onto end of (B) and tighten.
5. Thread knob and stud (4) through upright (3) and into body (D).

6. Thread center stem (6) approximately 3/8” into coupler (K) located on the bottom of
center cluster assembly (2).
7. Tighten hex nut (L) up against coupler (K) to secure center stem (6).
8. Please refer to the hanging instruction sheet (I.S. 19) provided to hang fixture. Then
refer back to this sheet to install glass.

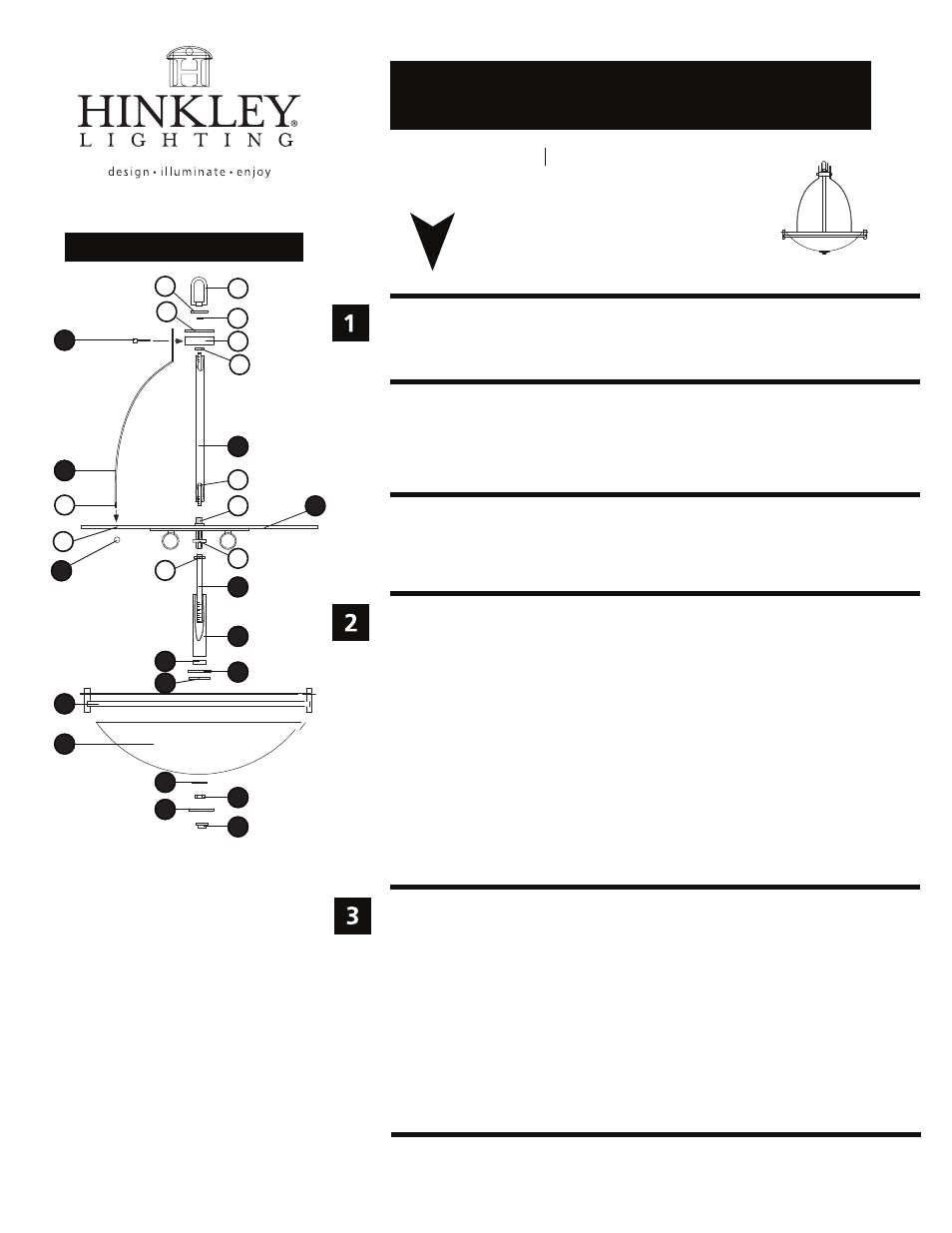

Drawing 1 - Fixture Assembly

H

D

A

2

11

17

6

FF

1

14

1

16

19

1. To install glass, slip tube (7) over center stem (6) and hold in position.
2. Slip cap (8) onto center stem (6) and up against tubing (7) and hold in position.
3. Slip flat washer (9) onto center stem (6) and hold in position.
4. Slip rubber washer (10) onto center stem (6) and hold in position.
5. Fixture can now be lamped accordingly.
6. Ring (12) must be placed on the top of the glass (11) at this time.
7. Slip glass (11) with ring (12) resting on top, onto center stem (6) and hold in position.
8. Slip flat washer (13) onto center stem (6) and hold in position.
9. Thread hex nut (14) onto center stem (6) and tighten to secure glass.
10. Slip cap (15) onto center stem (6) and hold in position.
11. Thread bottom cap (16) onto end of center stem (6) and tighten.

8

FF

13

FF

15

FF

12

FF

5

FF

3

FF

11

FF

10

FF

3

FF

4

B

C

F

E

K

G

I

J

L

2.7.08

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
