Start here, Assembly instructions

assembly instructions
Family: Veranda Item No. 4893 SU
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble fixture, thread nipple (A) into coupling (B).
2. Thread finial (C) into nipple (A).
3. Holding the wires tight, thread loop (F) onto nipple (G).
4. Spread arms (D) until they are aligned with the holes in coupling (B).
5. Slip ball screw (E) through arm (D), threading it into the holes in coupling (B).
6. Repeat steps 4-5 for remaining arm.
7. Please refer to the hanging instruction sheet (I.S. 19) provided to hang fixture. Then
refer back to this sheet to continue installation of this fixture.
1. Slip tube (H) over socket (I).
2. To attach crystals, hang crystal drop (J) from small ring (K) and repeat with remaining
crystals .
3. Fixture can now be lamped accordingly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging the
fixture from the ceiling, and then attaching crystal pentalogues.
start here
4893
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

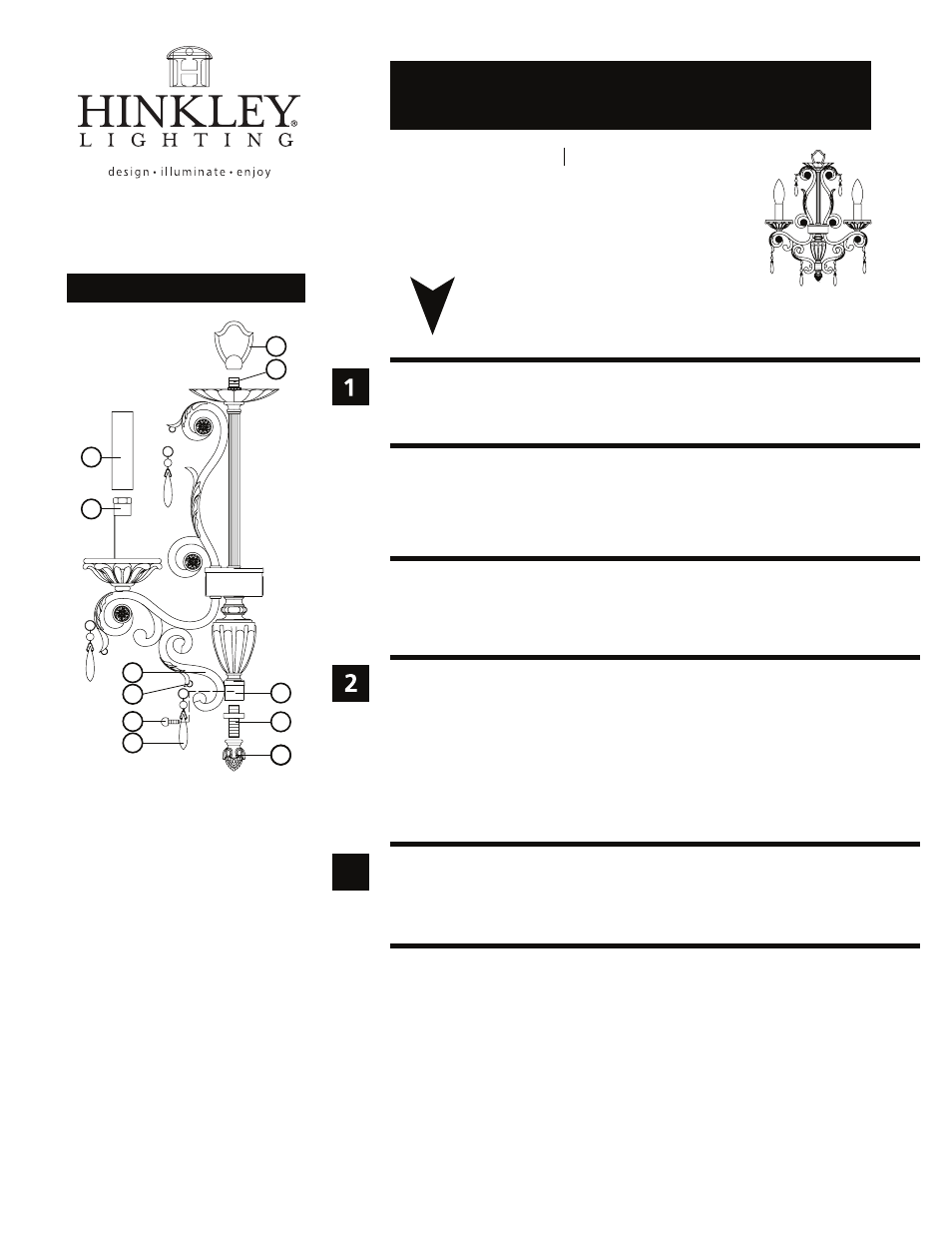

Drawing 1 - Fixture Assembly
A
3
C
C
B
D
H
I
E
J
K
F
G
