Hinkley Lighting MARION 4475TB - Manual

assembly instructions
Family: Marion Item No. 4475
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling.
start here
44
75
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

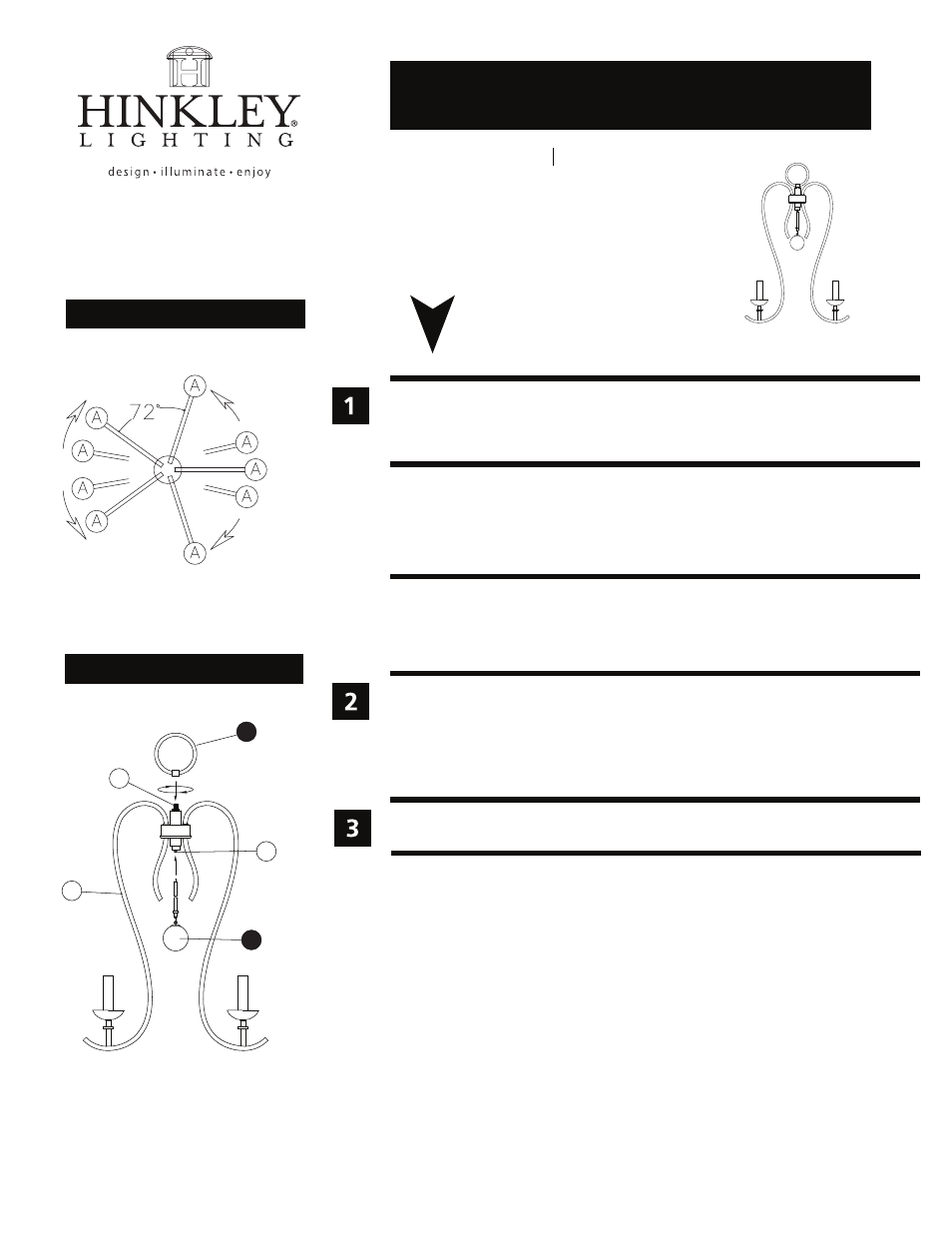

Drawing 1 - Fixture Assembly
06.01.11
1. Rotate arms (A) until they are approximately 72 degrees apart - see Drawing 1.
2. Slip loop (1) along wire and thread onto tube (B) at top of center column.
3. Please refer to hanging instruction sheet (I.S. 19) provided to hang this fixture.
Then refer back to this sheet to install glass.
1. To install crystal pendant (2) hook onto small loop (C).
B
A
1
2
C
Drawing 1 - Arm Spacing
