Broadway
fR41439pal
BROADWAY
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first determining the length of stem
required, attaching the mounting strap to the junction box, making all necessary
electrical connections, hanging the fixture from the ceiling and then installing the
lamps.
SAFETY WARNING:
Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1

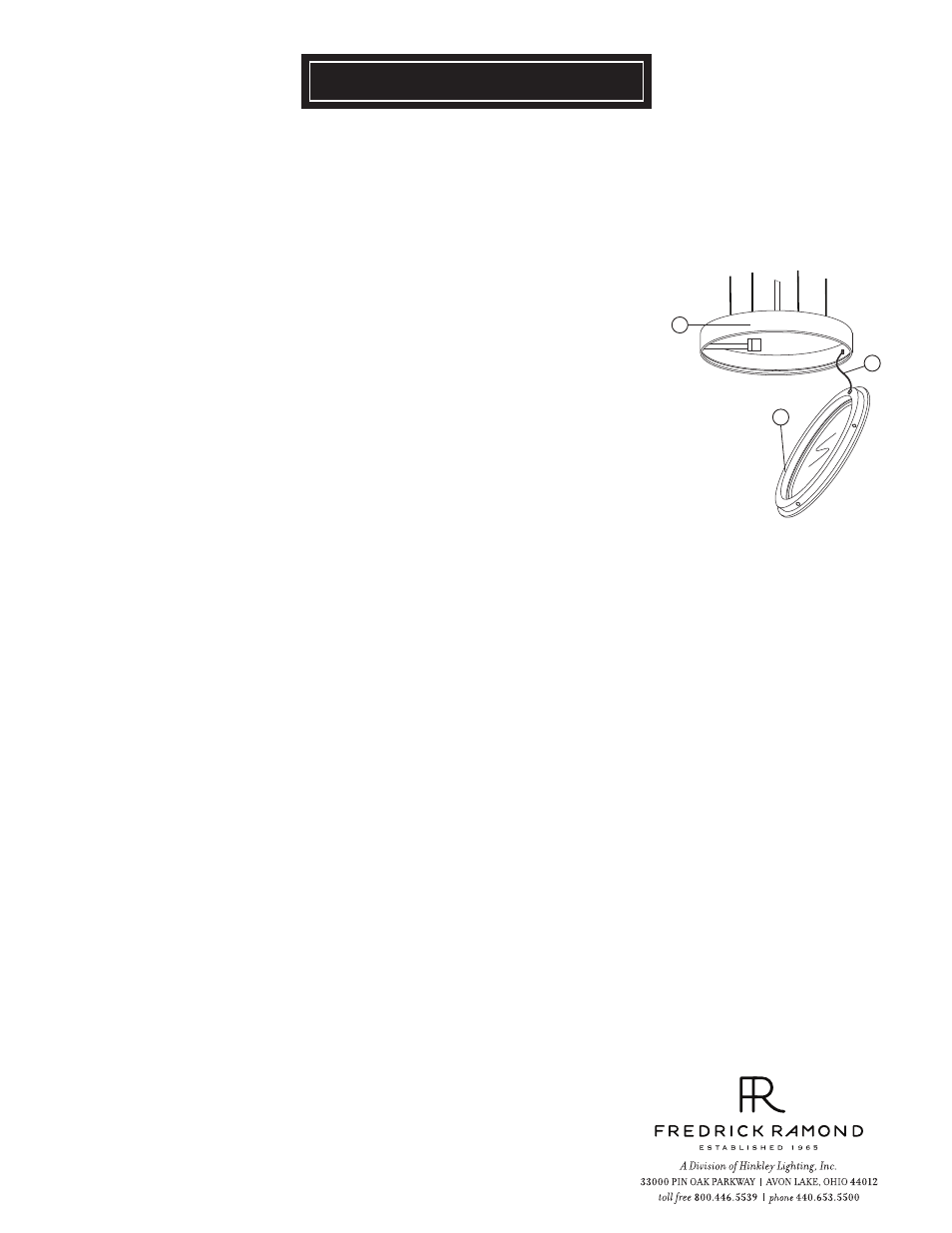

[DRAWING 1]
Bulbs:
60W g-9.
Replacement Parts:
GLASS: R41430GL
06.01.11
1
3
2
1 Follow mounting instruction sheet FRIS19-30 provided with fixture. After installation
return to this section of the instructions on lamping the fixture.
STEP 2
1
To lamp center hub of fixture, remove glass retainer ring (2) frombottom of the
main body (1). NOTE: the glass retainer ring is held in position by spring tension
and can be easily removed by pulling firmly on the edge at the split line. Retainer
ring is attached to the fixture by a wire cable (3) and will not fall when
released - See Drawing 1.
