Hinkley Lighting PLYMOUTH 4249OB - Manual

assembly instructions
Family: Plymouth Item No. 4249 OB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging the
fixture from the ceiling, and then attaching the fixture shades.
start here
42
49
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble fixture, slip top cap (4) with loop, along wire and thread onto top of
fixture - see Drawing 1.
2. Spread bottom arms (A) until they are equally spaced 60 degrees apart .
3. Spread top arms (B) until they are equally spaced 120 degrees apart, and equally
spaced between bottom arms (A).
4. Please refer to the hanging instruction sheet (I.S. 19-50) provided hang fixture.
Then refer back to this sheet to attach fixture shades.

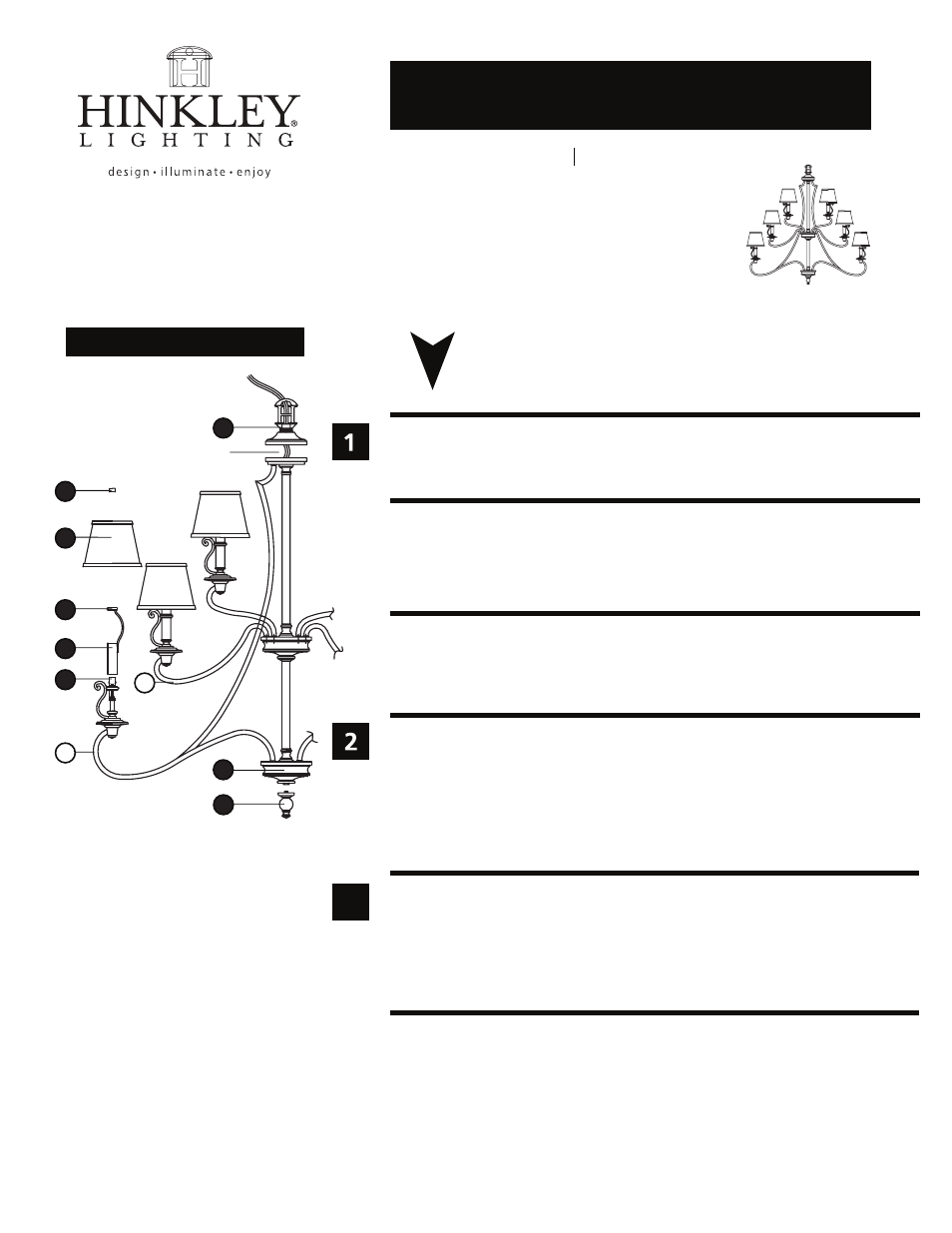

Drawing 1 - Fixture Assembly
4
8
wire
6
5
3
2
1
A
B
7
1. To attach shades, slip candle sleeve (2) through ring, and over socket (1). To prevent
scratching the candle sleeve when slipping it through the ring, wrap the sleeve in a
piece of paper. After candle sleeve is set, the paper can be removed.
2. Fixture can now be lamped accordingly.
3. Set shade (5), on top of harp (3) and thread in knob (6) to secure it.
4. Thread bottom finial (7) onto coupler (8) located at the bottom of the fixture. 3
5.29.08
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
