assembly instructions

Family: Drake Item No. 1991

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, mounting
the fixture to pre-installed post, and then installing the glass.

start here

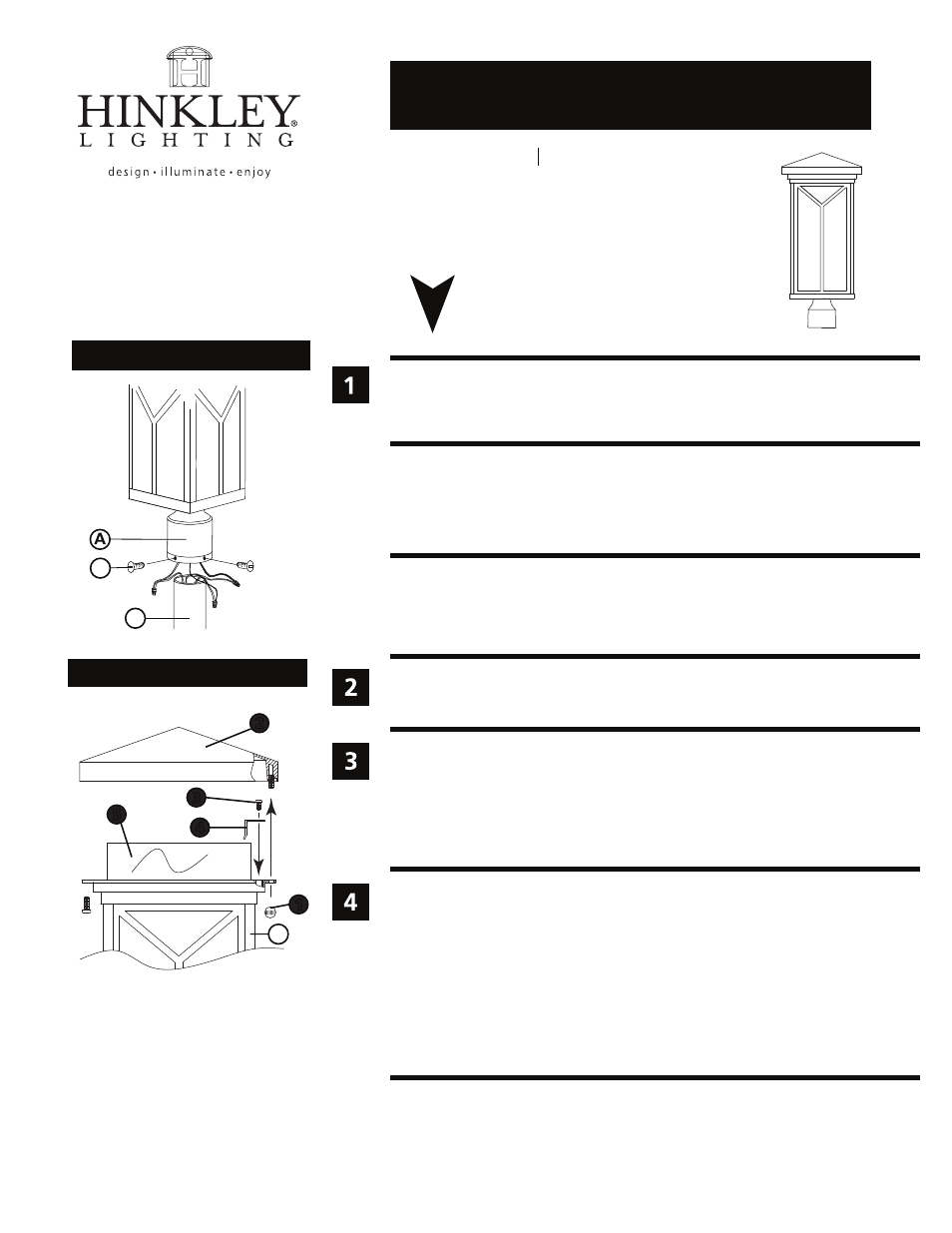

Drawing 1 - Fixture Mounting

1991

C

B

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet 18 (I.S. 18) and follow instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B)making sure all wire connections are tucked inside the pole - see Drawing 1.

2. When fixture is slipped over pole make sure no wires are being pinched between

the

top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screw (C) to secure fixture to post.

06.01.13

1. To lamp fixture remove screw (1) located under roof (2) lip. After screws are remove

roof (2) can be removed from cage (C), fixture can now be lamped accordingly -see

Drawing 2.

2. To replace a glass panel (5), remove screw (1) located under the roof lip. Lift roof (2)

off of cage (C).

3. Remove screw (3) holding the glass clip (4) in place.

4. Remove broken glass and slip new piece into place. Making sure bottom of glass fits

behind the tabs located in the bottom of the cage.

5. Replace glass clip (4) and thread screw (3) back into place to secure glass.

6. Replace roof (2) and secure with screws (1) removed earlier.

Drawing 2 - Glass Replacement

1

2

3

4

5

C

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
