HINKLEY LIGHTING 33000 Pin Oak Parkway, Avon Lake, Ohio 44012 800.446.5539 ww w.hink leylighting.com

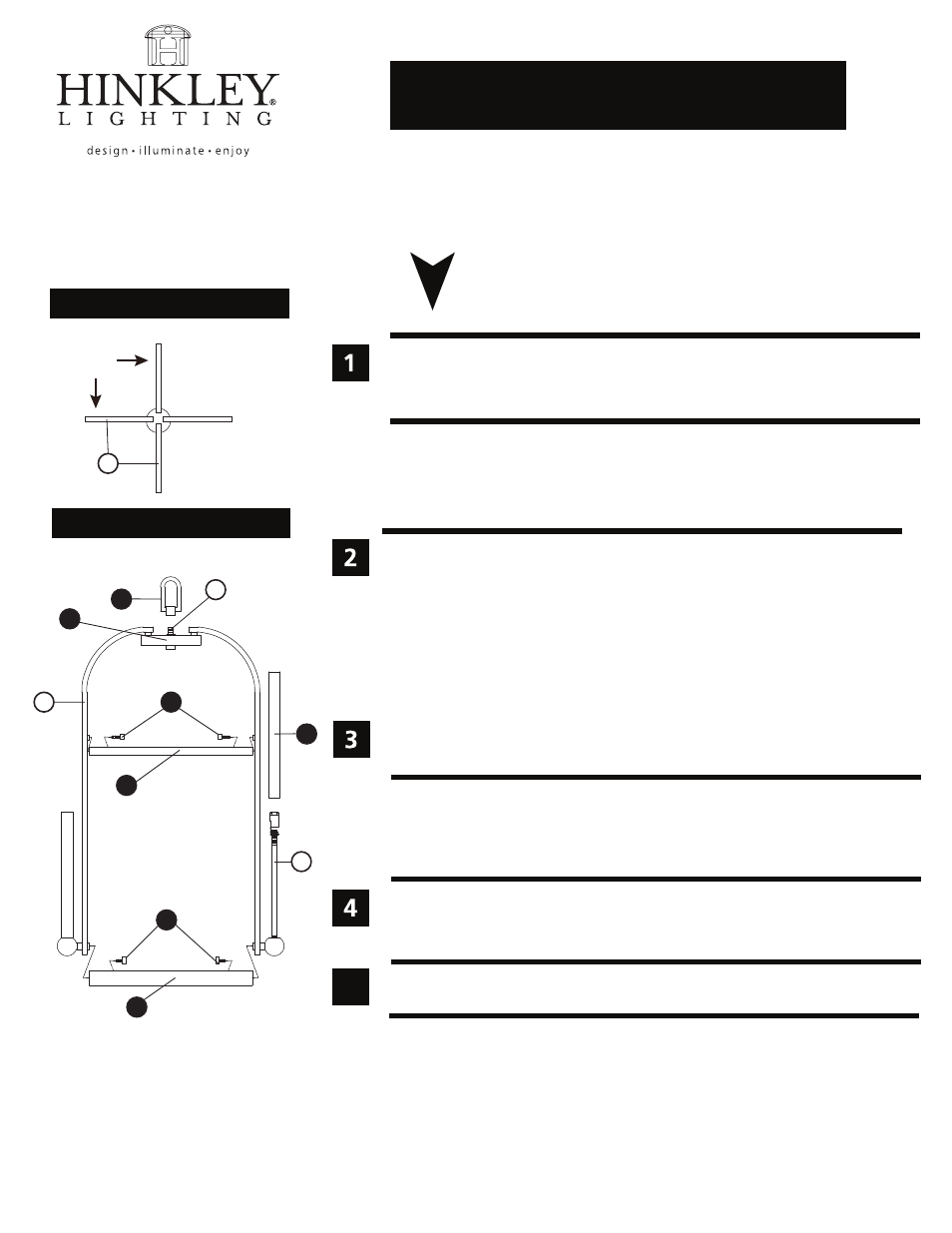

Drawing 1 - Arm Spread
Item No. 3014
assembly instructions
3014
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by assembling main
body of fixture, mounting the mounting strap to the junction box, making all
necessary electrical connections and then mounting the fixture to the ceiling.
start here
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet 18 (I.S. 18) and follow instructions to make all necessary wiring connections. 5
6.1.12
1
2
4
6
7
A
C
3
5
B
Drawing 2 - Fixture Assembly
1. Slip loop (1) along supply wire and thread onto threaded tube (A) located at the top of the
central body (2) see Drawing 2.
2. Rotate arms (B) until they are equally spaced 90 degrees apart - see Drawing 1.
3. Take thin ring (3) and slip it inside the arms (B). Line up holes in ring (3) with holes in arms (B)
and thread knob with stud (4) into holes in arms (B) to secure ring (3).
4. Take wide ring (5) and slip inside arma (B). Line up holes and attach ring (5) using knob and
studs (6).
5. Slip candle sleeve (7) over candle socket (C).
6. Fixture is ready for installation.
1. Please refer to the hanging instruction sheet (I.S. 19) provided to continue installation of this fixture.
2. After installation the fixture can be lamped.
90
B
o
