KARMA

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first determining the length of stem

required, attaching the mounting strap to the junction box, making all necessary

electrical connections, and hanging the fixture from the ceiling.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

1

Determine the overall length you will need the assembled fixture to be.

2

Determine what stems will be needed to achieve the overall length you

require.(Additional stems are available and can be ordered. Ask your local

Fredrick Ramond representative or visit www.fredrickramond.com for

information.

3

Install first stem (a) by slipping it along the supply wire of the fixture, and

threading it into decorative coupler (b) of the main body.

4

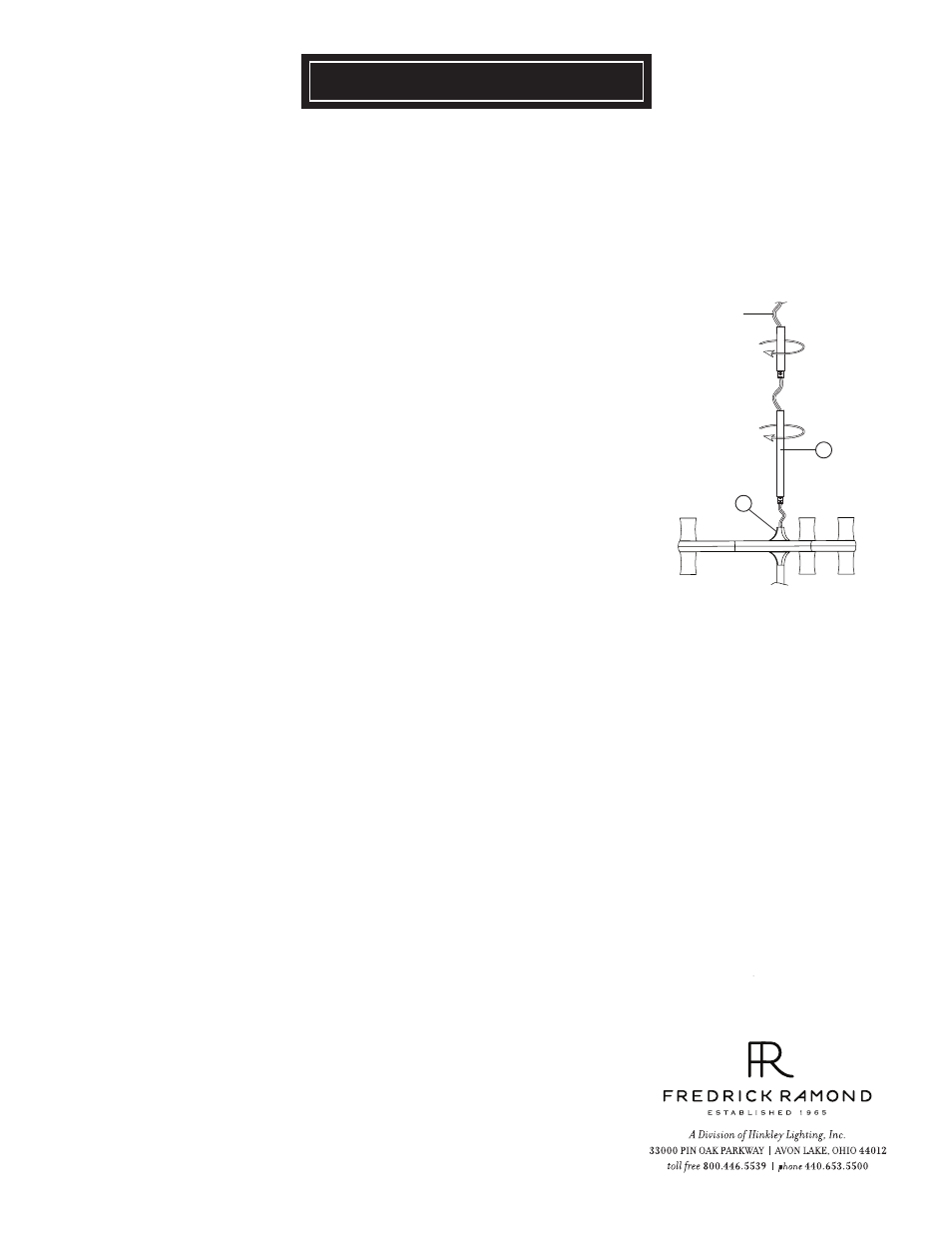

[DRAWING 1]

Bulbs:

60W CAND.

01.01.13

Continue adding stems (a) until determined length is acheived.

Fixture is ready for installation. Follow instruction sheet [FRIS19-70T] provided.

After installation fixture can be lamped accordingly.

5

supply

wire

a

b

6
