Hinkley Lighting MONTAUK 1202 User Manual

Start here, Assembly instructions

assembly instructions

Family: Montauk Item No. 1202

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the ceiling, and then lamping the fixture.

start here

1202

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

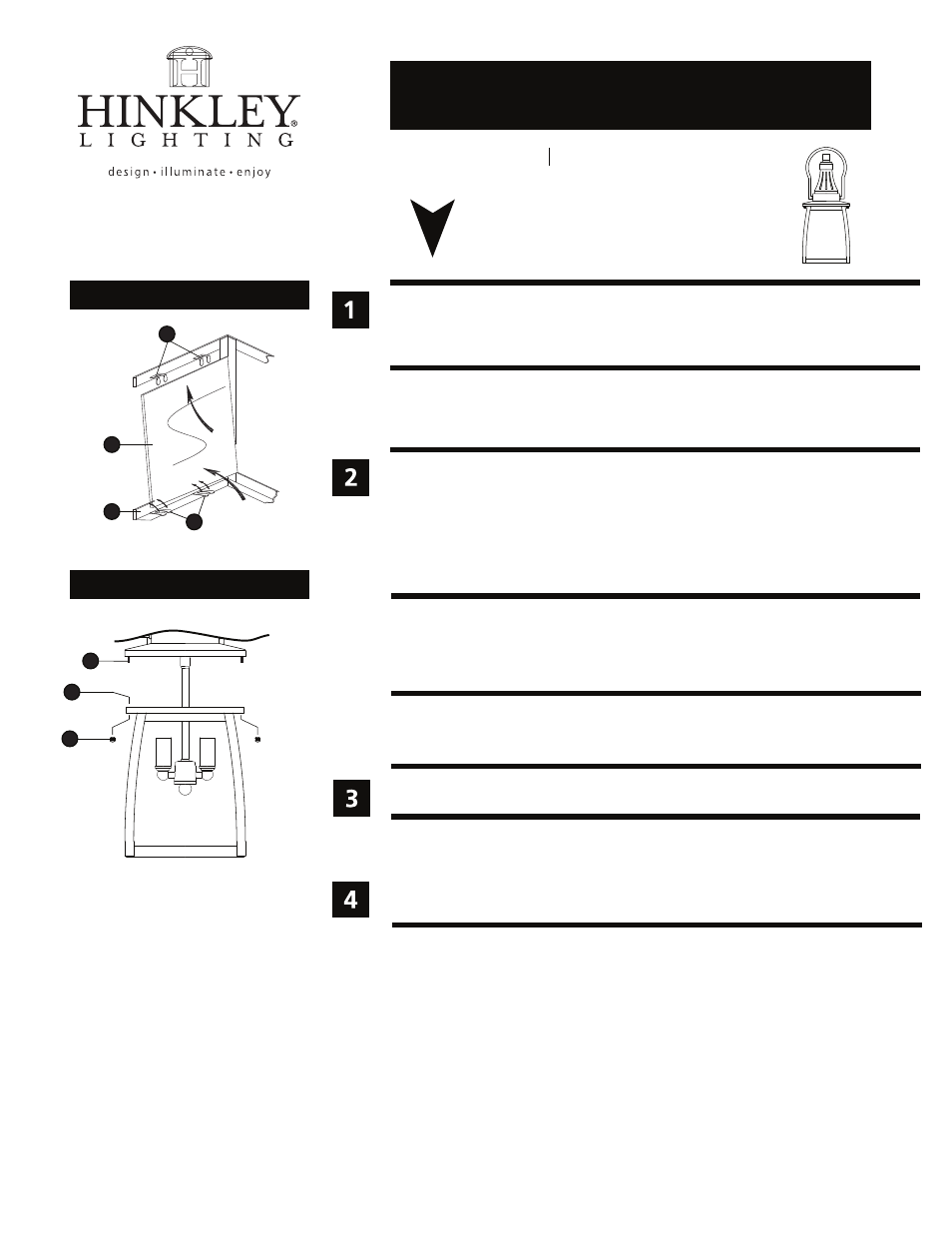

Drawing 2 - Fixture Assembly

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

1.01.12

Drawing 1 - Glass Installation

1. To install glass, slip glass panel (1) into the cage assembly (2) - see
Drawing 1.
2. Slip top of glass panel (1) under top glass clips (3) .
3. Slip bottom of glass panel (1) into the bottom of the cage assembly (2) .
4. Bend lower glass clips (4) up to retain glass panels (1).
5. Repeat steps 1-4 for remaining panels.

6. Set cage aside after installing glass, this will be attached to fixture after main body

is mounted to the wall.

1. After mounting main fixture body to ceiling, fixture can be lamped accordingly.
2. Attached cage assembly with glass to fixture by slipping studs (6) of main fixture
body into holes (7) of cage assembly - see Drawing 2.
3. Thread ball knobs (8) onto end of studs and tighten to secure cage assembly to
fixture body. Fixture is complete.

1. Please refer to the hanging instruction sheet (I.S. 19) provided to continue installation

of this fixture.

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
