assembly instructions
Family: Bravo Item No. 4133
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the main body of the
fixture, installing the mounting hardware, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the glass.
star t here
4133
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To install glass, remove socket ring (6) and socket spacer (7) from socket (S).
2. Slip glass (8) over socket (S).
3. Slip spacer (7) and thread socket ring (6) to secure glass (8).
4. Fixture can now be lamped accordingly.

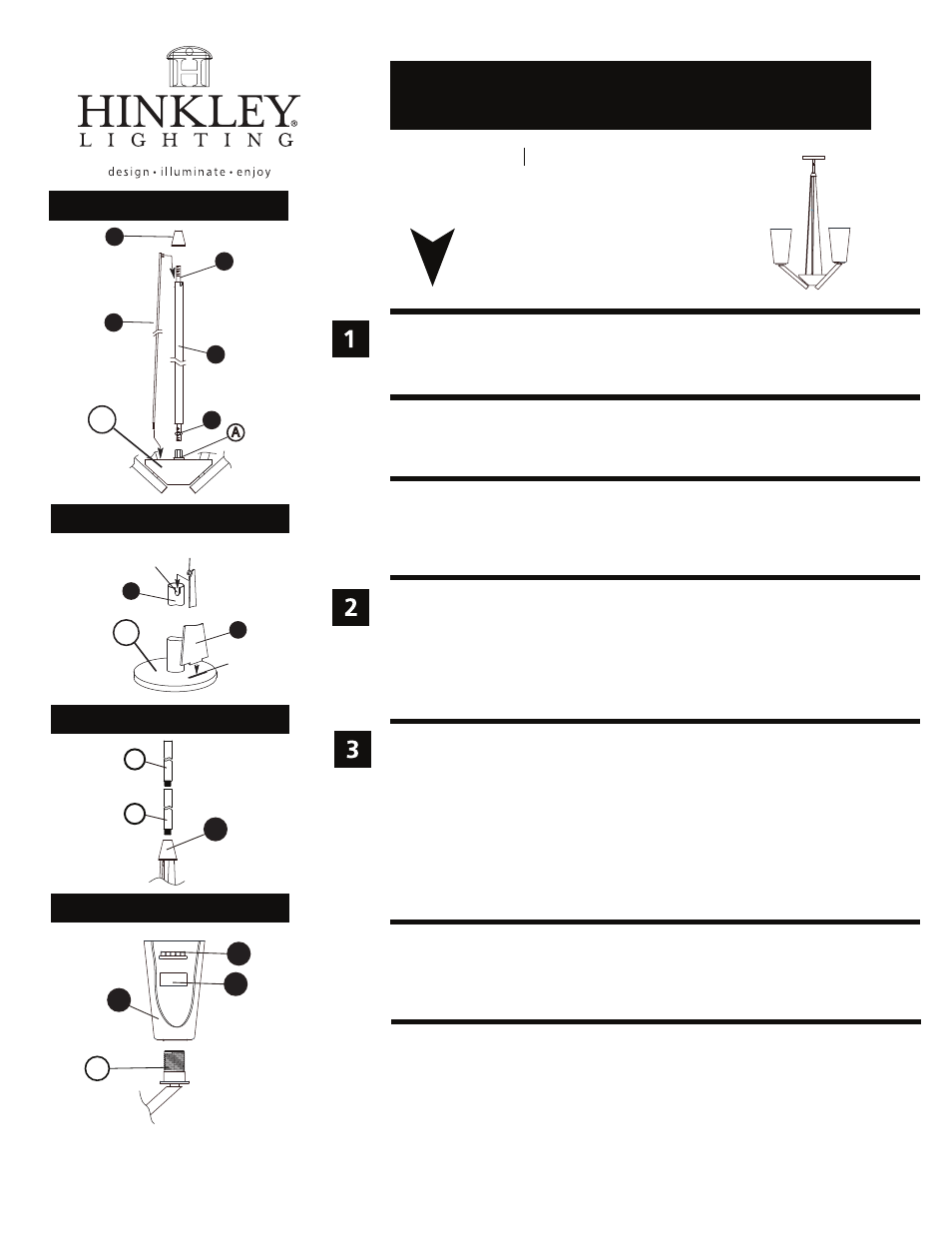

Drawing 1 - Body assembly
01.01.12
5
4
2
1
3
A
1. To assembly main body, first slip center tube (1) along wire and thread into coupler (A)
approximately 3/8”. Then tighten down hex nut (2) against coupler (A) to secure - see
Drawing 1.
2. Slip center column tube (3) over center tube (2).
3. Slip decorative plates (4) into notch on top of main body (MB) - see Drawing 1 & 2.
4. Slip top tab of decorative plate (4) into notch located at top of center column tube (3).
5. Thread on cap (5) to secure asssembly.
MB
4
notch
tab
MB
notch
Drawing 2 - Assembly Detail
Note: It will be necessary to determine the length of rods you will require to hang your
fixture at the desired height. After this has been established, please follow the
instructions belo w .
1. Slip first rod section (B) along wire and thread into top of cap (5)
2. Slip next section of rod (C) along wire and thread into top of previously installed
rod -
- See Drawing 3.
3. Continue adding sections of rod until all necessary lengths have been attached to
the fixture.
4. Fixture can now be mounted to the ceiling by following mounting instruction sheet
(IS19-91) provided. Return to this sheet for glass installation instructions.
Drawing - 3 Rod installation
3
B
C
5
Drawing - Glass installation
6
7
8
S
