assembly instructions

Item No. 1891 / 1921

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, and then
mounting the fixture to pre-installed post.

start here

1891

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

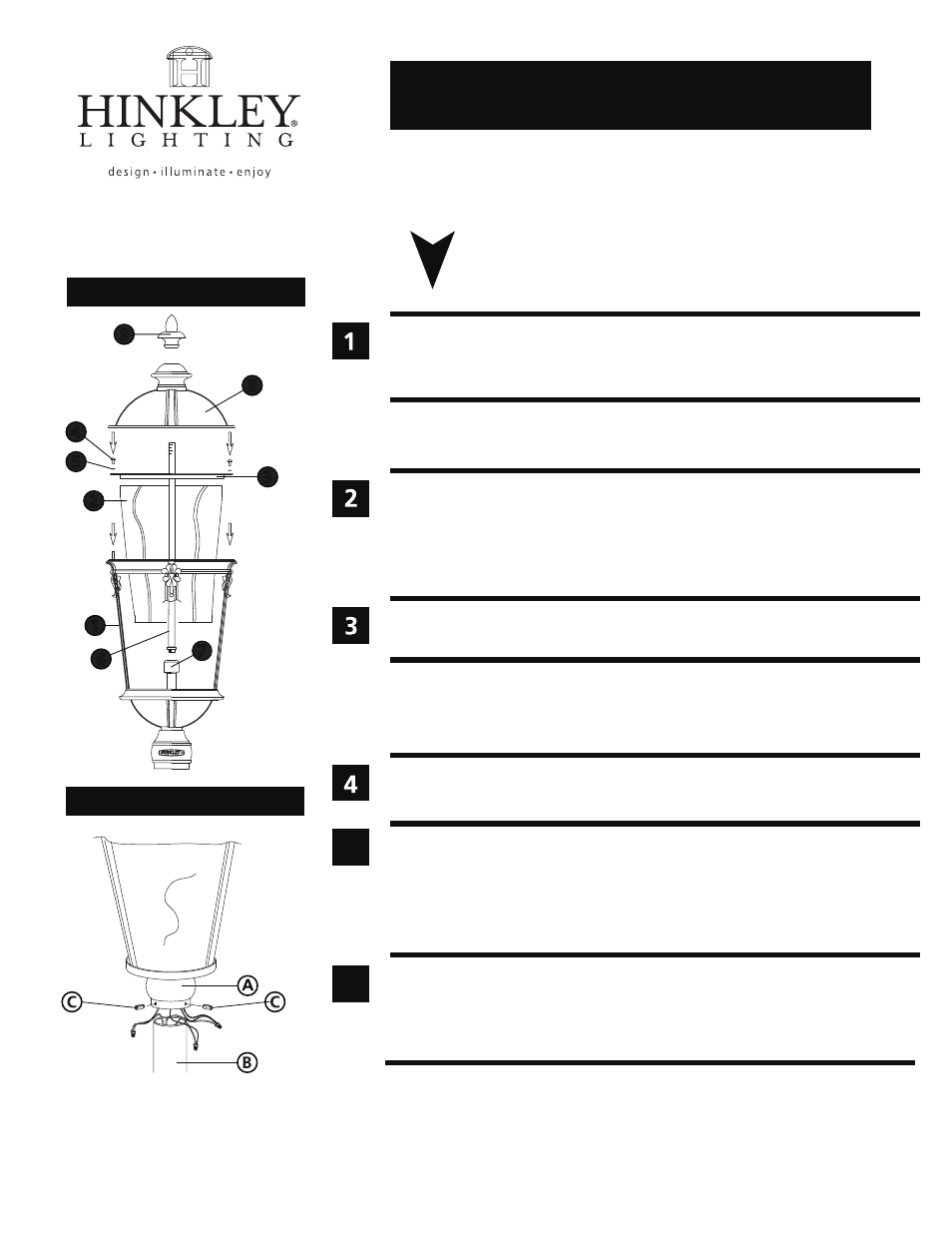

Drawing 2 - Fixture Mounting

Drawing 1 - Fixture Assembly

1. Fixture is mounted using 3 - 1/4-20 set screws.
2. Make all necessary electrical connections following wiring instructions below.

5

1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 2.
2. When fixture is slipped over pole make sure no wires are being pinched between
the top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to pre-installed post.

01.01.13

1. To install glass (2), remove retainer ring (3) from cage assembly (1) by removing
the four screws (4) and lockwasher (5) - see Drawing 1.
2. Lift retainer ring (3) off of studs (S).
3. Slip glass (2) into cage assembly (1), replace retainer ring (3) and replace lockwashers

(5) and thread screws (4) onto studs (S) and tighten to secure glass.
4. Thread center stem (6) into top of cluster assembly (7).
5. Fixture can be installed at this time.

6

1. Fixture can be lamped prior to attaching roof.
2. To attach roof, slip center hole of roof (8) onto center stem (6) and slide roof down
until it seats properly on top of cage assembly (1) - see Drawing 1.
3. Thread decorative knob (9) onto end of center stem (6) protruding from top of roof,
and tighten to complete assembly.

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com

1

2

3

4

5

6

7

8

9

1921
