Hinkley Lighting SLOAN 4548RB User Manual
Start here, Assembly instructions

assembly instructions
Family: Sloan Item No. 4548 RB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the shades.
start here
4548
Note: Maximum wattage for 4548 fixture is
60
watts per bulb.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble main body, spread arms (A) of the body assembly (1) until they are
equally spaced 60 degrees apart - see Drawing 1.
2. Spread arms (B) of the body assembly (1) until they are equally spaced 60 degrees
apart - see Drawing 1.
3. Make sure all candle sleeves (3) are slipped over the sockets (5) - see Drawing 2.
4. Please refer to hanging instruction sheet (I.S. 19) provided to hang fixture. Then
refer back to this sheet to continue installation of this fixture.
1. To install shades, slip shade cup (4) onto top of candle sleeve (3) - see Drawing 2.
2. Fixture can now be lamped accordingly.

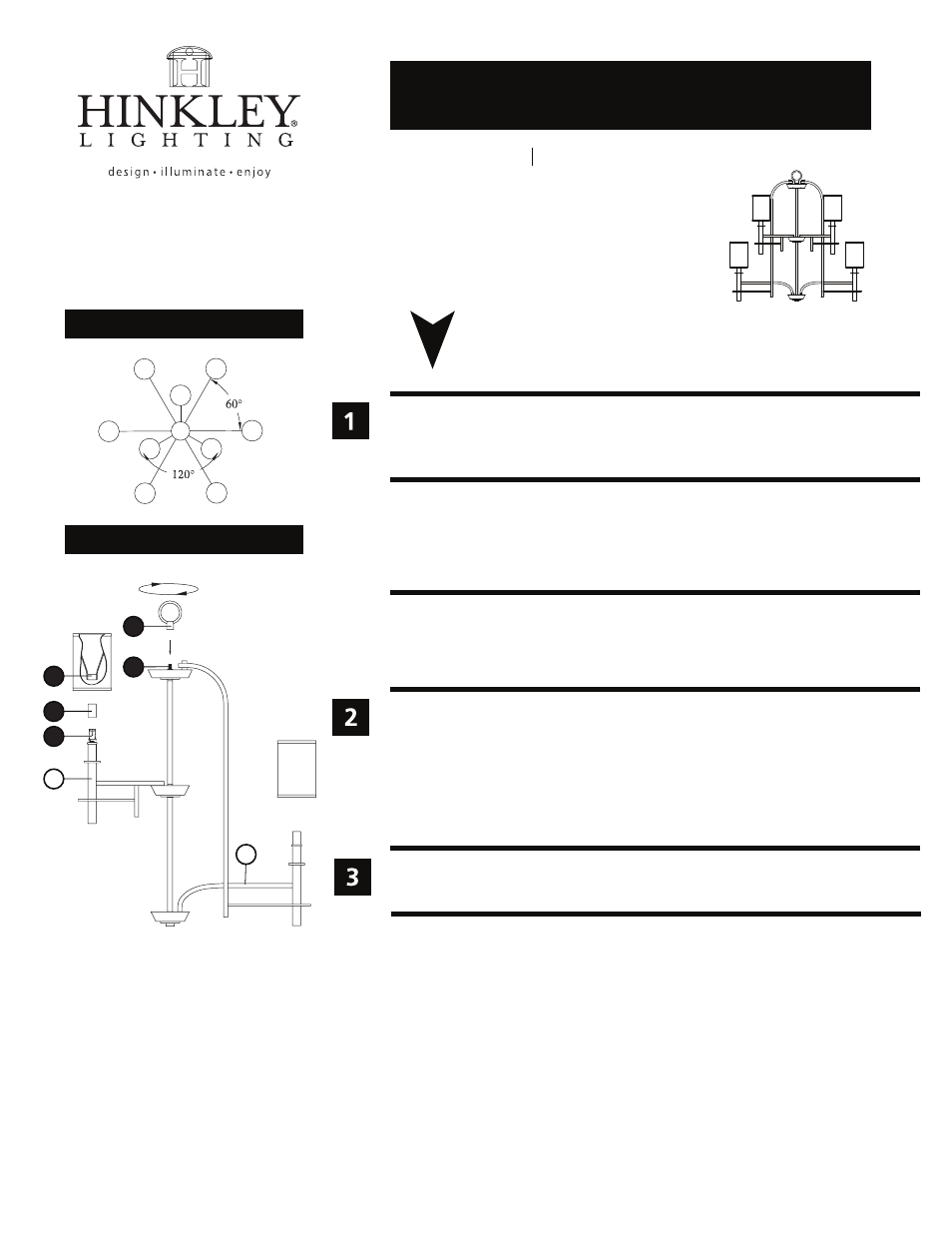

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Assembly
4
3
5
B
A
2
1
B
A
A
A
A
A
A
B
B
11.4.09
