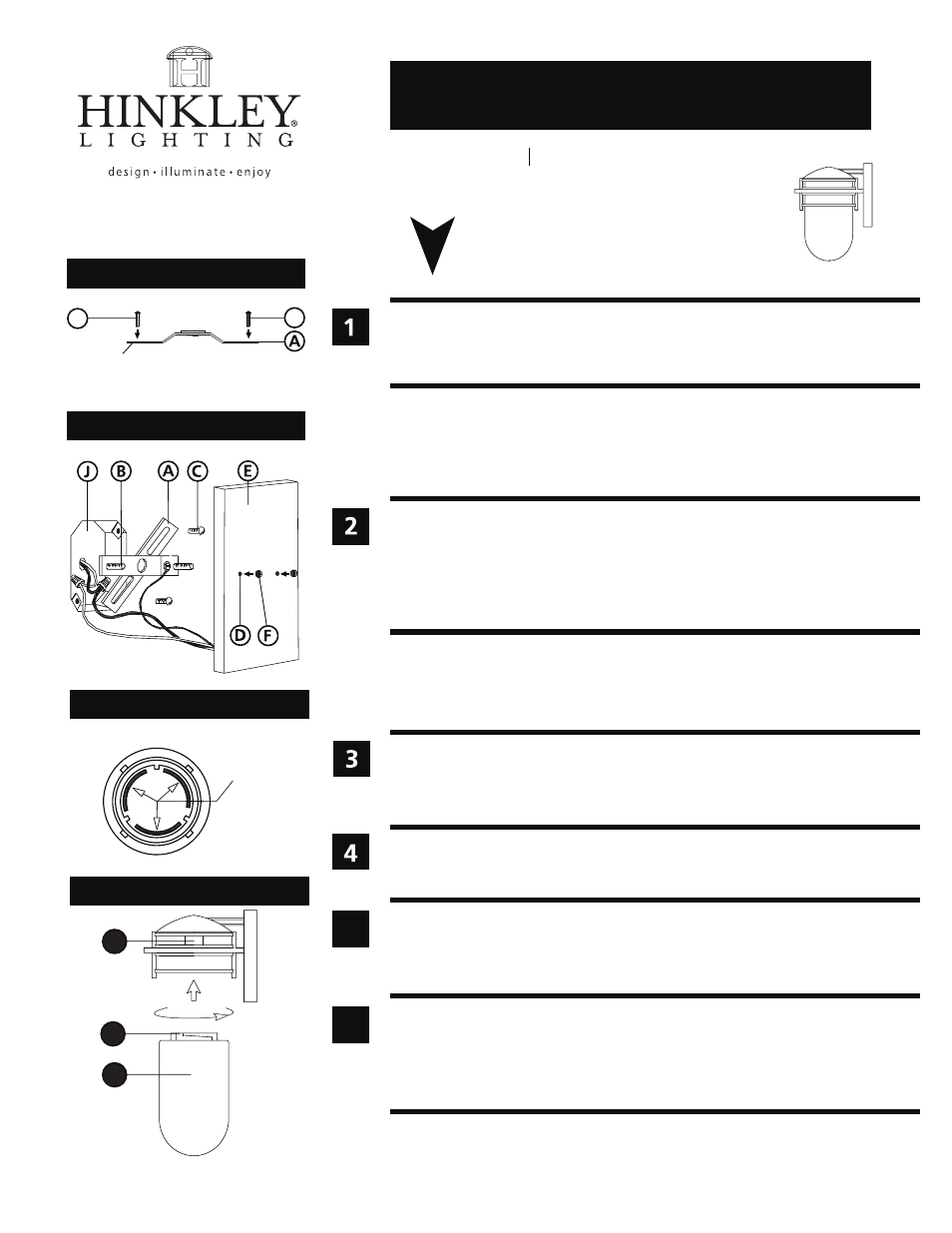

assembly instructions

Family: Reef Item No. 1950 HE/VZ

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. Prepare mounting strap (A) by threading the two 8-32 long mounting screws (B)
into the back of the gull wing bracket - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the back plate (E) - see Drawings 1 and 2.
2. Attach mounting strap (A) to junction box (J) using two 8-32 screws (C) 1” long (not
provided) - see Drawing 2.

1. Prior to installing glass, it is necessary to install foam weather stripping in the roof of
the fixture - see Drawing 3.
2. Cut 3 strips approximately 1-1/2” long from the foam weather stripping provided in
the parts bag with the fixture.

1. Slip the two mounting screws (B) through the two mounting holes in the backplate
(E) - see Drawing 2.
2. While holding fixture in place, thread the two ball knobs (F) onto mounting screw
(B) and tighten.

1. Fixture can now be lamped accordingly.
2. The glass in this fixture is installed by lining up the three grooves (3) in the glass with
the three tabs located inside the roof - see Drawing 4.
3. To install glass (2) align grooves and slip glass up into roof. Turn glass clockwise to
lock it in.

*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then assembling the main body of the fixture.

start here

1950

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Drawing 1 - Strap Detail

Drawing 2 - Fixture Mounting

B

(side view)

gull wing

bracket

backplate

B

Drawing 4 - Fixture Assembly

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

5

6

Drawing 3 - Gasket Installation

foam weather
stripping
application
location

7.6.10

2

1

3

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
