Hinkley Lighting PLYMOUTH 4259OB - Manual

assembly instructions
Family: Plymouth Item No. 4259 OB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections and hanging
the fixture from the ceiling.
start here
4259
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble fixture, thread center column (1) onto threaded stem (2) - see
Drawing 1.
2. Thread top stem (3) into top of center column (1).
3. Take top spider assembly (4) and spread out arms (A) until they are equally spaced
apart.
4. Slip hole (B) in end of arms (A) over studs (C) on the top of cage assembly (D).
Making sure center column stem (3) passes through center hole (E) of spider
assembly (4).
5. Attach spider assembly (4) to cage assembly (D) with ball knobs (5) provided.
6. Thread loop (6) onto end of top center stem (3) and tighten.
7. Slip candle sleeve (7) over socket (F).
8. Thread bottom cover (8) onto base of cage assembly (D).
9. Please refer to the hanging instruction sheet (I.S. 19) provided to hang fixture.

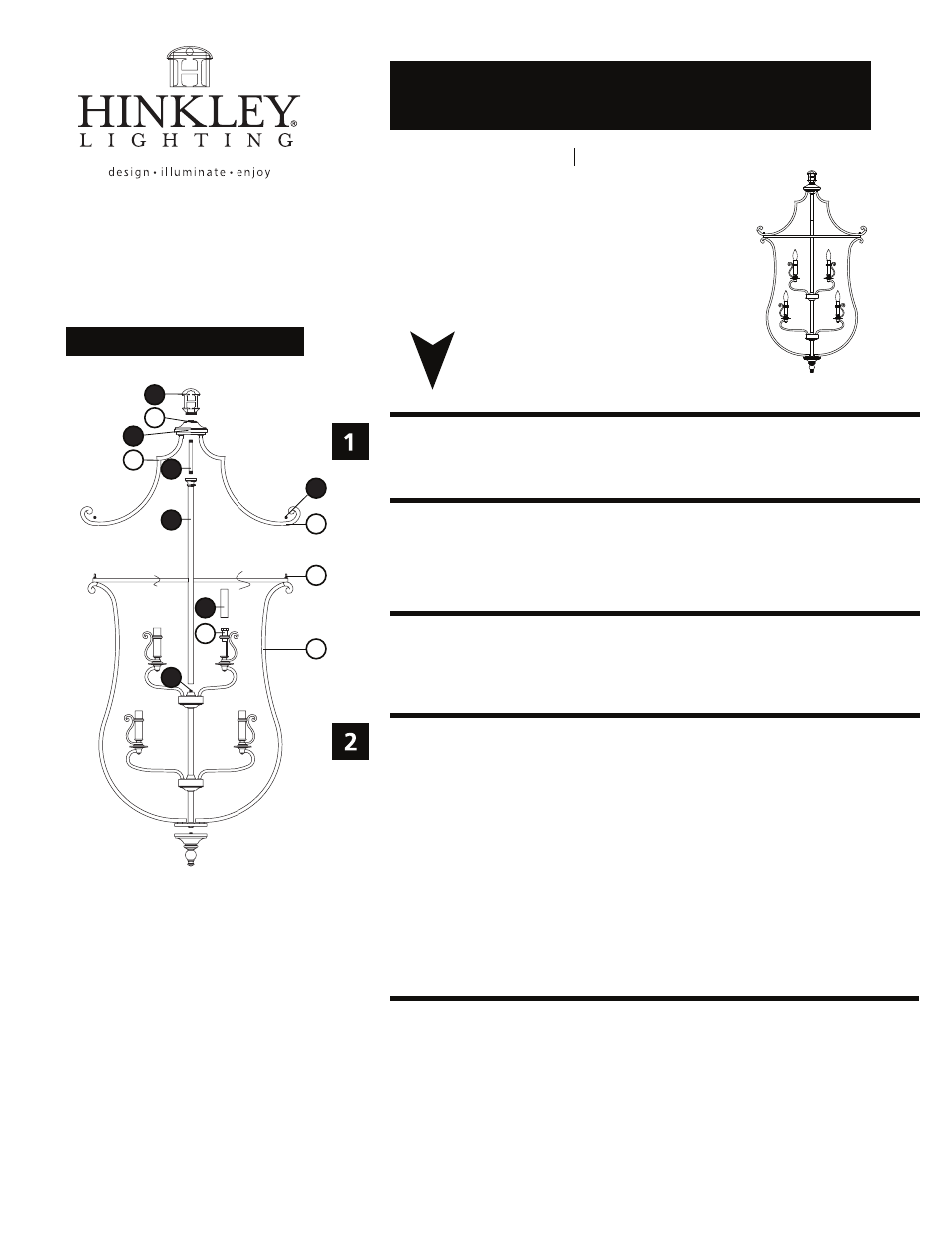

Drawing 1 - Fixture Assembly
6
3
1
7
F
D
2
4
A
E
12.01.08
C
B
5
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
