Hinkley Lighting YORK 1841 - Manual

assembly instructions
Item No. 1841
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first installing the glass, making
all necessary electrical connections, and then mounting the
fixture to the pole.
star t here
1841
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.

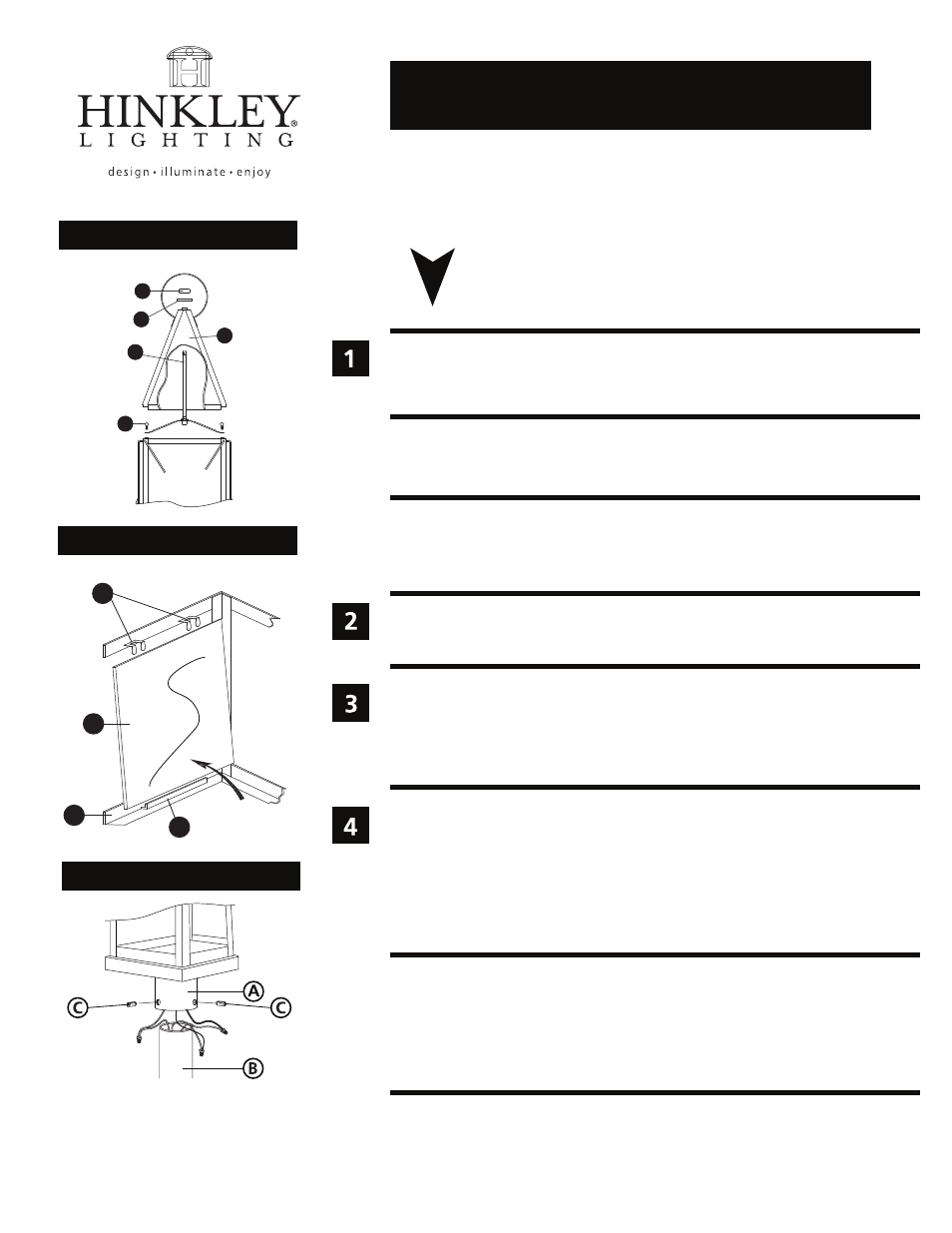

Drawing 3 - Fixture Mounting
Drawing 1 - Roof Installation & removal
1. After wiring connections are complete, slip post fitter (A) over top of pre-installed post (B)
making sure all wire connections are tucked inside the pole - see Drawing 3.
2. When fixture is slipped over pole make sure no wires are being pinched between the top edge of
the pole and the inside of the post fitter.
3. Thread the 3 screws (C) into pre-tapped holes in post fitter.
4. Tighten screw (C) to secure fixture to post.
6.1.12
1. To install glass, it is necessary to remove the roof (3) first. This is accomplished by first unthread-
ing top knob (1), then removing top cap (2) see Drawing 1.
2. Roof (3) can now be lifted off the cage of the fixture.
3. To remove cross bar and center tube assembly (4), unthread ball knob studs (5).
25
21
23
24
22
Drawing 2 - Glass Installation
9
8
6
7
1. To install glass panels (7), slip them up through the open bottom of the cage (6). The center
stem that is attached to the socket cluster assembly (not shown) is on a swivel and can be moved
to aid in installing the glass - see Drawing 2.
2. Slip bottom of glass panels (7) into channel (8) in bottom of cage (6) tip top of panel into
position, and bend over clips (9) to secure glass in cage. Repeat procedure for remaining panels of
glass.
3. Fixture is ready for installation, roof (3) can be installed after the fixture is mounted to the pole
by following Step 3 in reverse order.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
