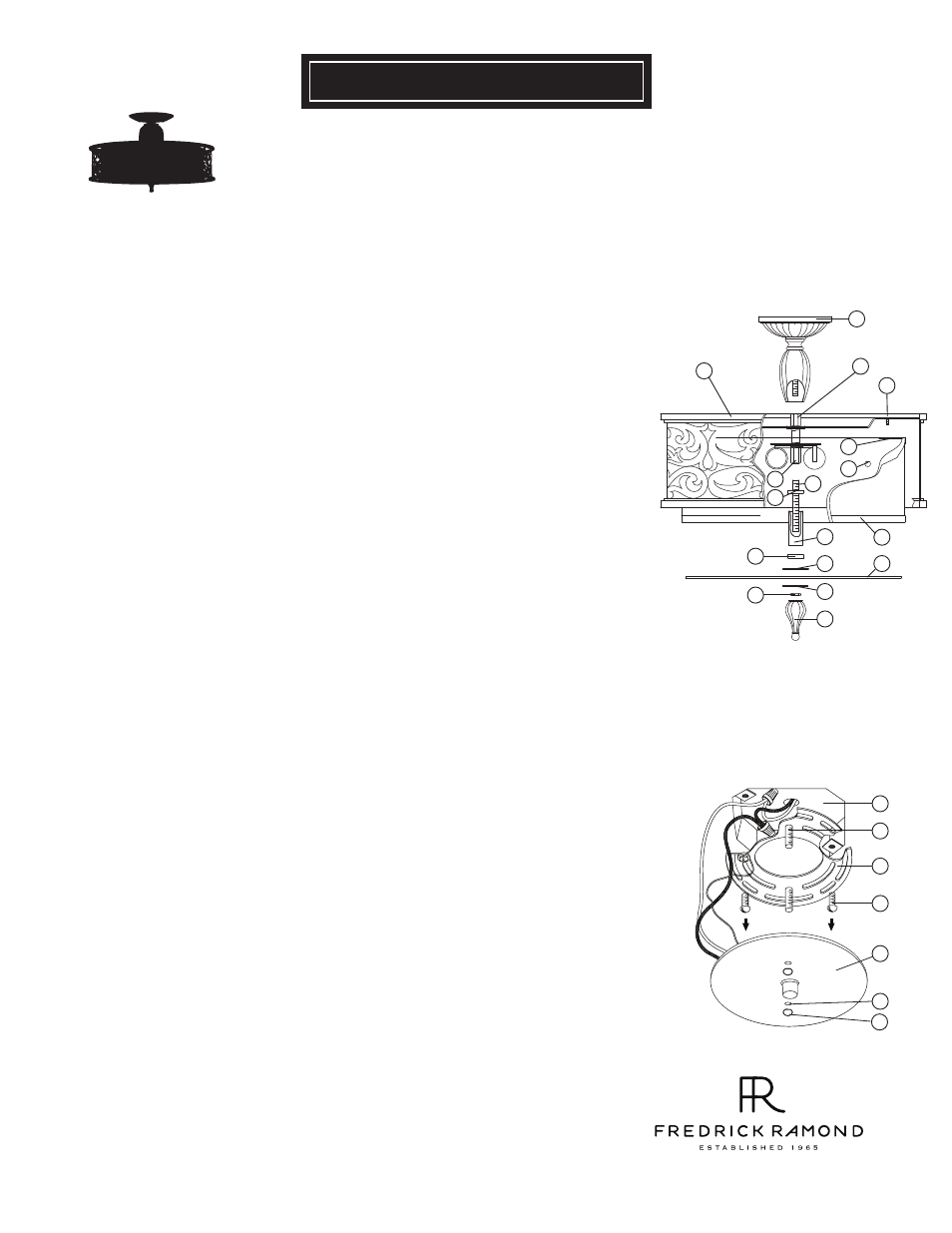

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first assembling the main body,

installing the mounting hardware to the junction box, making all necessary electrical

connections and then hanging the fixture.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

STEP 2

[DRAWING 1]

Bulbs:

100W MED.

12.1.09

800.421.3517 WWW.FREDRICKRAMOND.COM

[DRAWING 2]

1

a

c

13

12

9

7

2

b

5

6

d

11

10

3

8

1

Remove ball knob (2) from stud (c) located on arm of cage (4).

- See Drawing 1.

2

Slip shade (3) into the cage assembly (4). Making sure to line up holes (b) in

shade tab with stud (c) on cage arms.

3

Thread ball knob (2) onto end of stud (c) to secure shade.

4

Thread stem (5) into coupler (d) located in the center of the socket assembly,

approximately 3/8”.

5

Slip cap (6) flat part up, onto stem (5) followed by tube (7) and hold in position.

6

Slip bottom cap (8) flat side down, onto stem (5) and over end of tube (7) ,

followed by rubber washer (9). Rubber washer will hold parts in position.

7

Fixture can now be lamped accordingly.

8
9

10

Slip center column (1) along wire and thread onto coupler (a).

Slip steel washer (11) onto stem (5), then thread hex nut (12) onto stem (5) and tighten
to secure glass lens.

Thread finial (13) onto end of exposed stem (5) to complete assembly.

Slip glass lens (10) onto stem (5) and hold in position.

4

j

a

c

e

d

f

b

1

Prepare mounting strap (a) by threading the two long mounting screws (b)

into the back of the mounting strap (a), making sure the holes into which the

screws are threaded match the spacing of holes (d) in the backplate (e)

- See

Drawing 1.

2

Attach mounting strap (a) to junction box (j) using two screws (c).

3

Make electrical connections from supply wire to fixture lead wires. Refer to

instruction sheet [FRIS18] and follow all instructions to make all necessary

wiring connections. Then refer back to this sheet to continue installation of

this fixture.

4

To mount fixture, slip the two mounting screws (b) through the two mounting

holes (d) in the canopy (e).

5

While holding fixture in place, thread the two ball knobs (f) on to the end of the

mounting screws (b), and tighten.
