Hinkley Lighting REEF 1952 User Manual

Start here, Assembly instructions

background image

assembly instructions

Family: Reef Item No. 1952 HE/VZ

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first making all
necessary electrical connections, hanging the fixture from the ceiling, and then
installing the glass.

start here

1952

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

1. Please refer to the hanging instruction sheet (I.S. 19) provided to hang this fixture.
Then refer back to this sheet to install the glass.

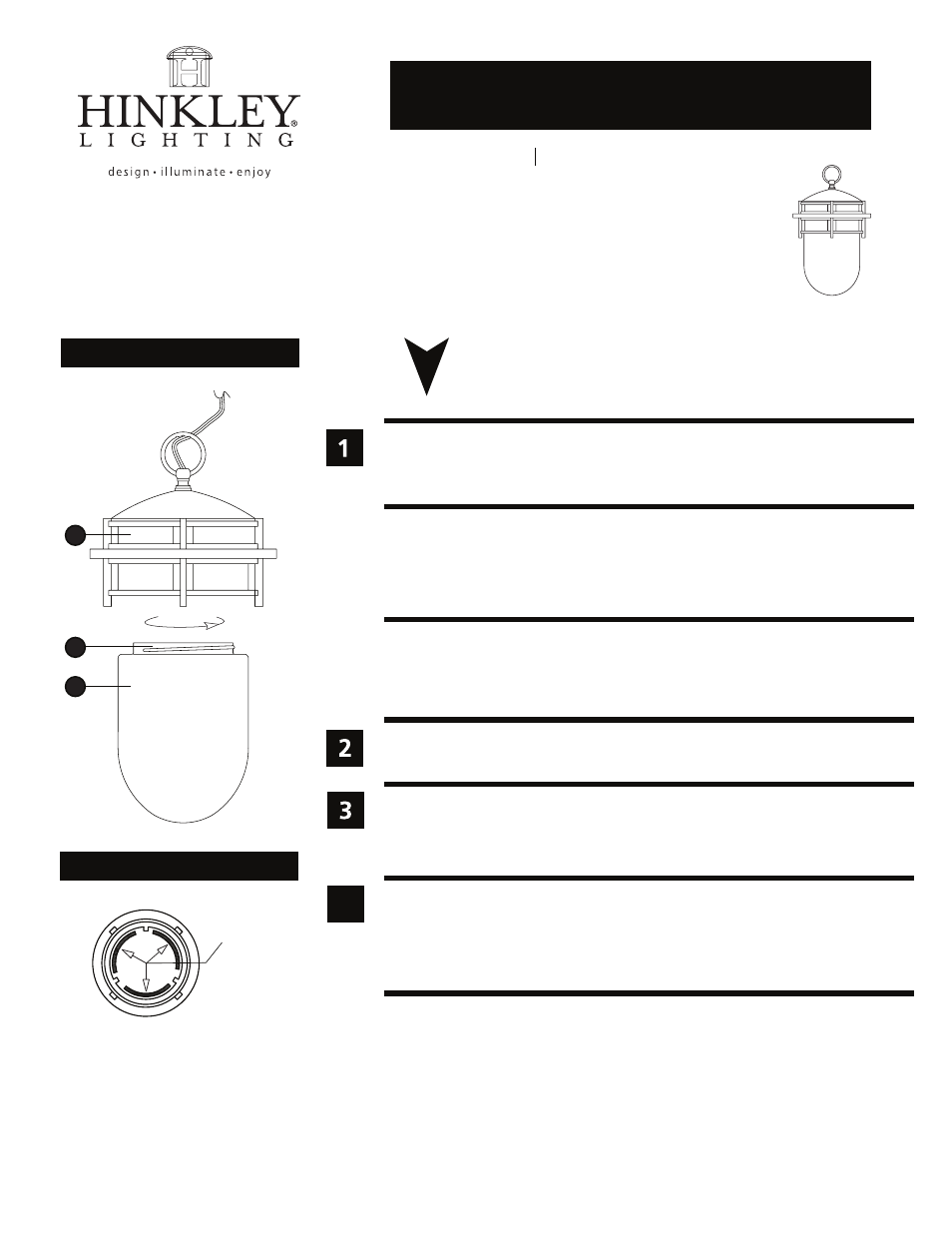

Drawing 1 - Fixture Assembly

1

2

3

7.6.10

1. Prior to installing glass, it is necessary to install foam weather stripping in the roof of
the fixture - see Drawing 3.
2. Cut 3 strips approximately 1-1/2” long from the foam weather stripping provided in
the parts bag with the fixture.

Drawing 2 - Gasket Installation

foam weather
stripping
application
location

4

1. Fixture can now be lamped accordingly.
2. The glass in this fixture is installed by lining up the three grooves (3) in the glass with
the three tabs located inside the roof - see Drawing 1.
3. To install glass (2) align grooves and slip glass up into roof. Turn glass clockwise to
lock it in.
