Hinkley Lighting KINGSLEY FR42720SLF - Manual

FR42720SLF
KINGSLEY
ASSEMBLY INSTRUCTIONS

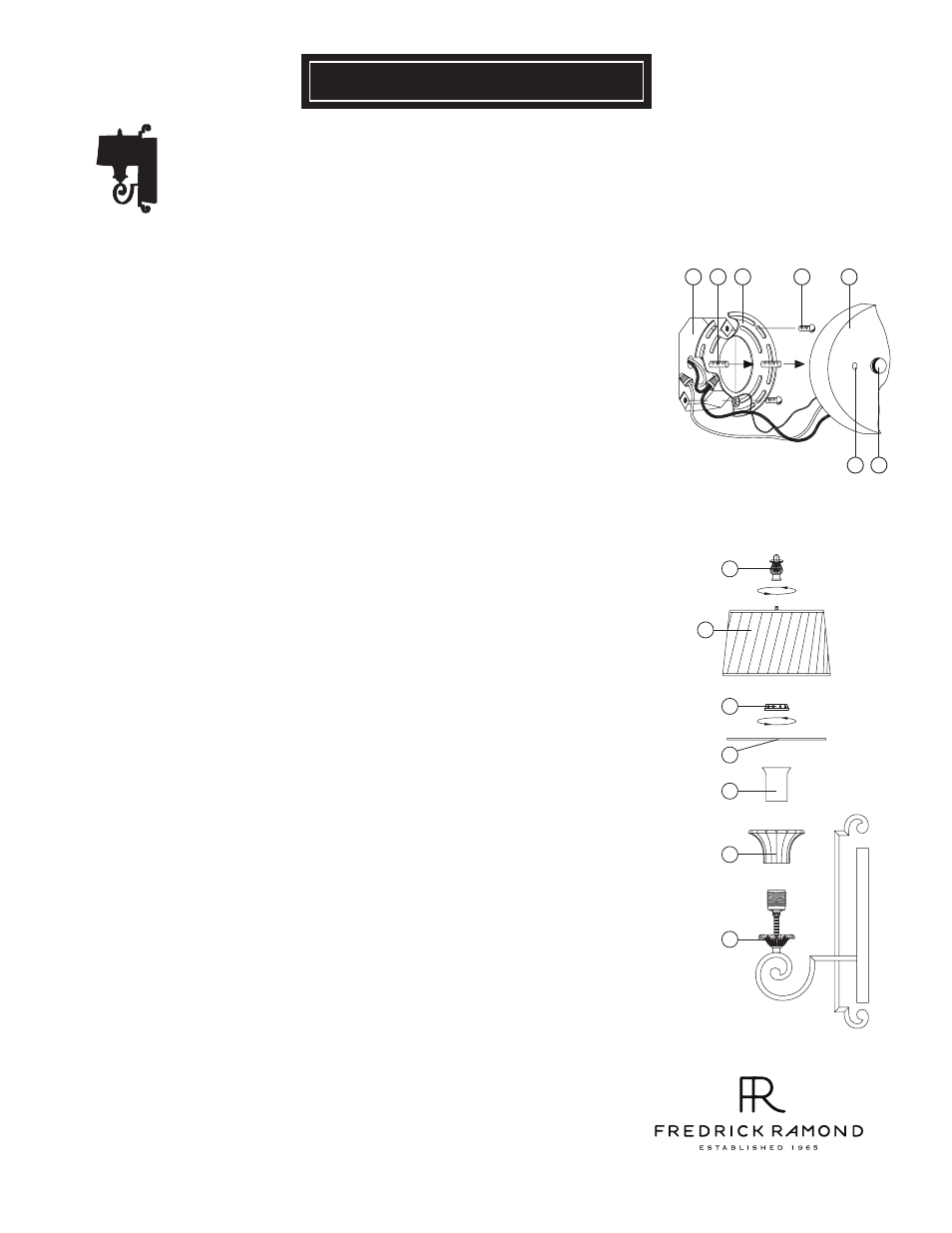

Assembly of this fixture will be accomplished by first installing the mounting strap to
the junction box, making all necessary electrical connections, mounting the fixture to
the wall and then installing the glass and shade.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1 Prepare mounting strap (a) by threading mounting screws (b) into the back of
the mounting strap (a), making sure the holes into which the screws are threaded
match the spacing of holes (d) in the backplate (e) - See Drawing 1.
2 Attach mounting strap (a) to junction box (j) using two longest mounting
screws (c).
3 Make electrical connections from supply wire to fixture lead wires. Refer to
instruction sheet [FRIS18] and follow all instructions to make all necessary
wiring connections. Then refer back to this sheet to continue installation of
this fixture.
4 To mount fixture, slip the two mounting screws (b) through the two mounting
holes (d) in the backplate (e).
5 While holding fixture in place, thread the two ball knobs (f) on to the end of the
mounting screws (b), and tighten.
STEP 2
1 To install glass, slip glass bobesche (2) over socket (1) - See Drawing 2
2 Slip cover sleeve (3) over socket (1) and into glass bobesche (1).
3 Slip center hole of glass lens (4) over socket (1).
4 Thread socket ring (5) onto socket (1) to secure parts (2, 3 and 4). Hand-tighten
only, over tightening could damage the glass lens (4).
5 Fixture can now be lamped accordingly.
6 Clip shade (6) onto lamp.
7 Thread shade finial (7) onto top of shade (6).
[DRAWING 1]
[DRAWING 2]
j
Bulbs: 75W MED.
b a c e
d f
6.1.09
800.421.3517 WWW.FREDRICKRAMOND.COM
1
2
3
5
7
6
4
