Hinkley Lighting HAMPTON 3205AN - Manual

assembly instructions
Family: Hampton Item No. 3205 AN/BR
1. Find a clear area in which you can work.
1. Rotate the three uprights (A) until they are approximately 120 degrees apart - see
Drawing 1 .
2. Attach acrylic lens assembly (1) by threading coupler (B) onto end of lower upright
stems (C) - see Drawings 2 and 3.
3. Refer to hanging instruction sheet (I.S.19) provided to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
1. Fixture can now be lamped accordingly.
2. Slip shade (2) onto acrylic lens assembly (1) - see Drawing 3.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body structure, installing the mounting hardware to the junction box, hanging
the fixture from the ceiling and then installing the shade.
start here
3205
8.31.09
3

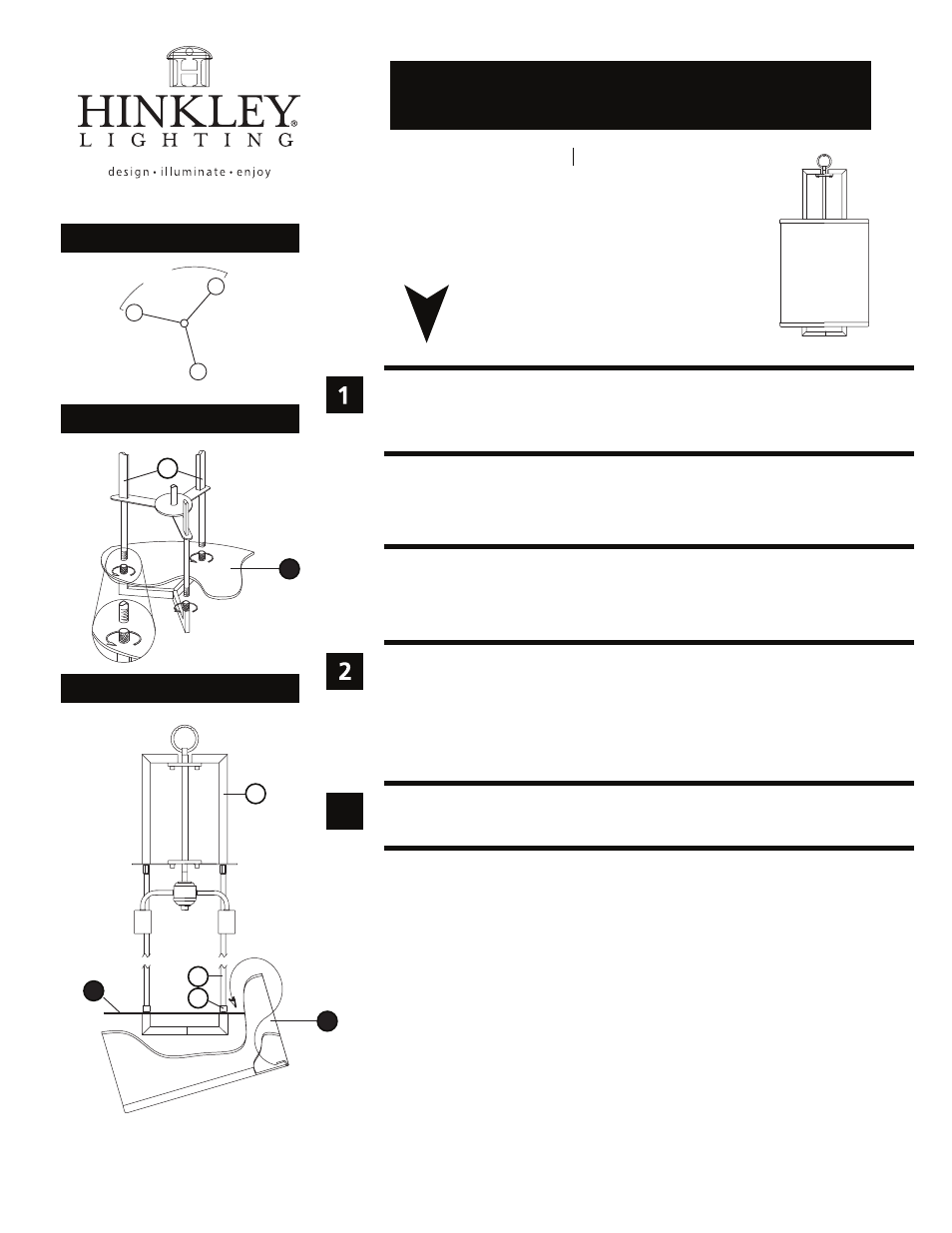

Drawing 1 - Fixtu
Drawing 2 - Fixture Assembly
Drawing 3 - Fixture Assembly
re Assembly
A
A
A
120º
A
1
A
C
B
1
2
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
