Star t here, Assembly instructions

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, Ohio 44012
800.445.5539 www.hinkleylighting.com
assembly instructions
Item No. 3017
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first determining the length of
stem required, attaching the mounting strap to the junction box, making all necessary
elctrical connections, hanging the fixture from the ceiling, and then installing the glass.
star t here
3017
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. Determine the overall length you will need the assembled fixture to be.
2. Determine what stems will be needed to achieve the overall length you require.
(Additional stems are available and can be ordered. Ask your local Hinkley Lighting representa-
tive or visit www.hinkleylighting.com for information.)
3. Install stems by slipping them onto the supply wire of the fixture, threaded end up, and
threading them together.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.
1. To install glass, remove socket ring (4) and spacer (3) from socket (1) - see Drawing 3.
2. Slip glass (2) over socket (1) followed by spacer (3).
3. Thread socket ring (4) onto socket to secure glass.
4. Fixture can now be lamped accordingly.

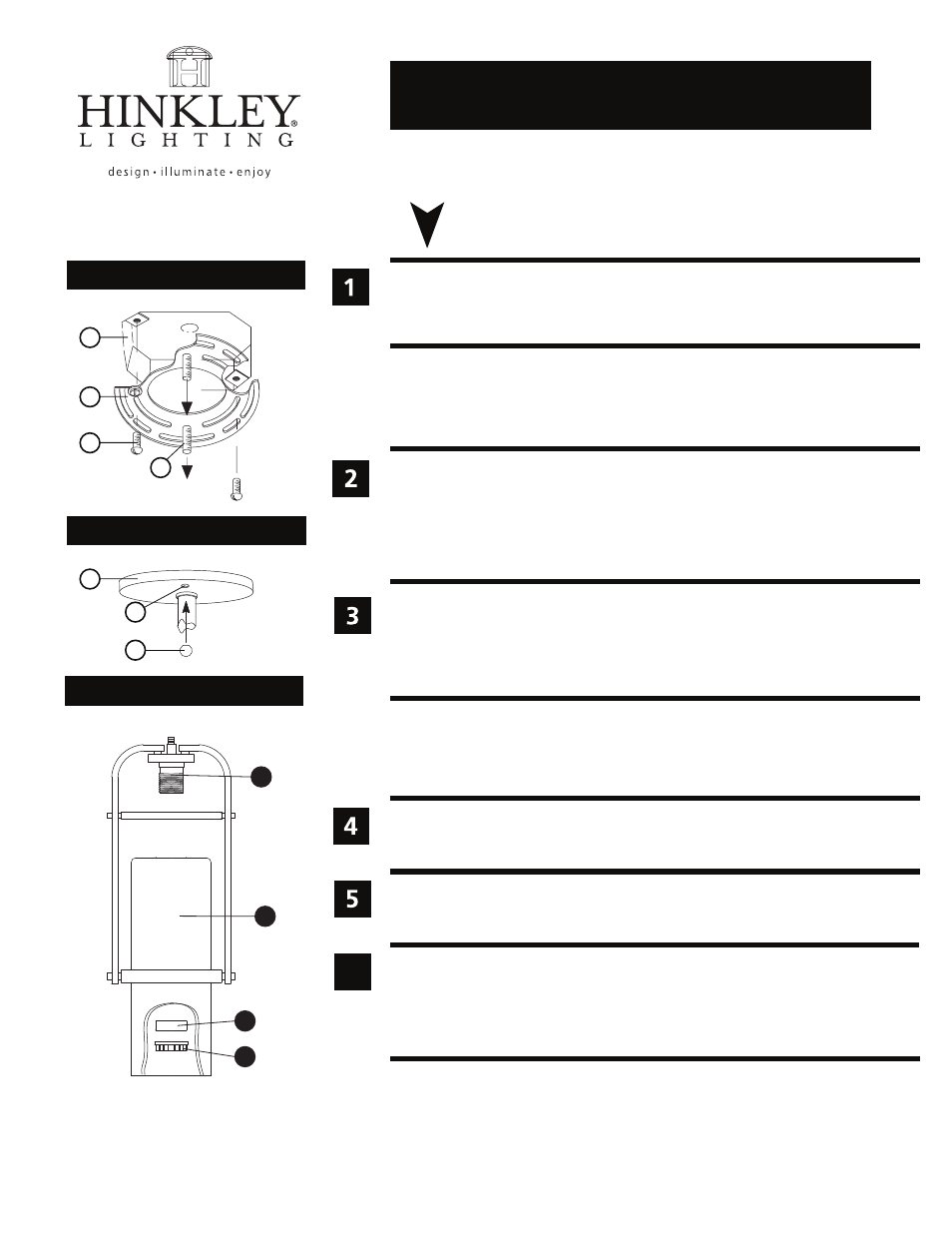

Drawing 3 - Glass Installation
6
Drawing 2 - Fixture Mounting
Drawing 1 - Strap Detail
J
B
G
D
C
E
A
1. Install screws (A) into mounting plate (B) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the canopy (E) - see Drawings 1 and 2.
2. Attach mounting plate (B) to junction box (J), using screws (G) provided and then slip supply
wires through large center hole.
1. Hang the fixture by slipping canopy (D) over screws (B) in the mounting strap - see Drawing 2.
2. Thread on ball knobs (E) onto the end of screws (B) and tighten to secure fixture to ceiling.
6.1.12
1
2
3
4
