Hinkley Lighting ATLANTIS 1644 - Manual

A J B C D
E
F
back plate
assembly instructions
Family: Atlantis Item No. 1640 1644
1640 1644

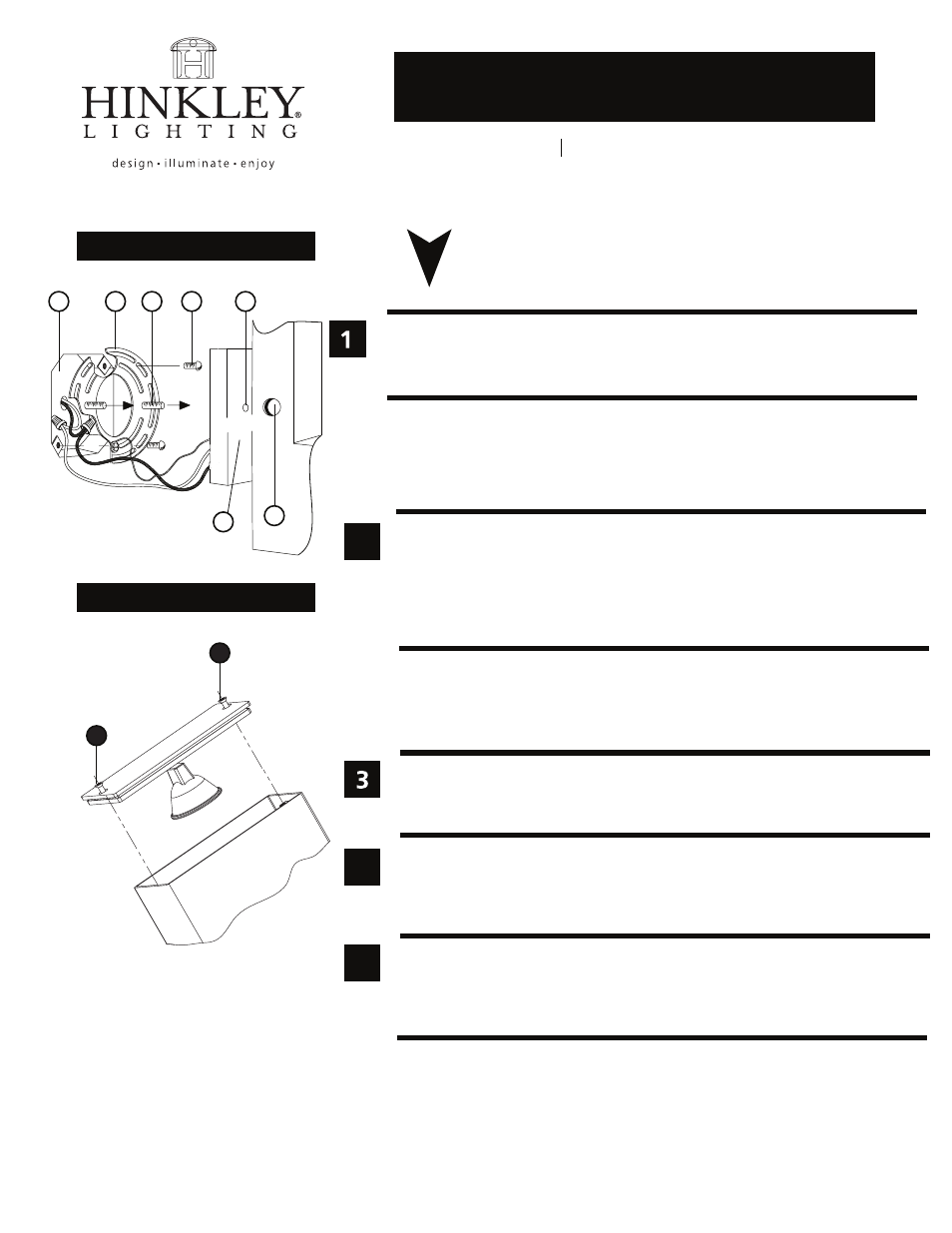

Drawing 1 - Fixture Mounting
1. Prepare mounting strap (A) by threading the two 1 1/4” long mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the backplate (E).
2. Attach mounting strap (A) to junction box (J) using two 1” screws (C) provided.
1. To mount fixture, slip the two mounting screws (B) through the two mounting holes
(D) in the backplate (E) - see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (F) on to the end
of the mounting screws (B), and tighten.
1. To lamp fixture, remove the 2 phillip head screws (1) at the top and bottom of the
fixture to gain access - see Drawing 1.
2. Fixture can now be lamped accordingly.
3. To reassemble, follow step 1 in reverse order.
1
1
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first mounting the
retaining plate to the junction box, making all necessary electrical connections,
mounting the fixture to the wall and then lamping fixture.
start here
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then
refer back to this sheet to continue installation of this fixture.
2
4
5
Drawing 2 - Relamping
Note: Maximum wattage for the 1640 1644 is GU-10, 20 watt MR-16
2.7.08
