Hinkley Lighting PRINCETON 4071BN User Manual
Start here, Assembly instructions, Bc a

assembly instructions
Item No. 4071
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the main
body of the fixture, making all necessary electrical connections, hanging the fixture
from the ceiling and then installing the fixture shade.
start here
4071
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

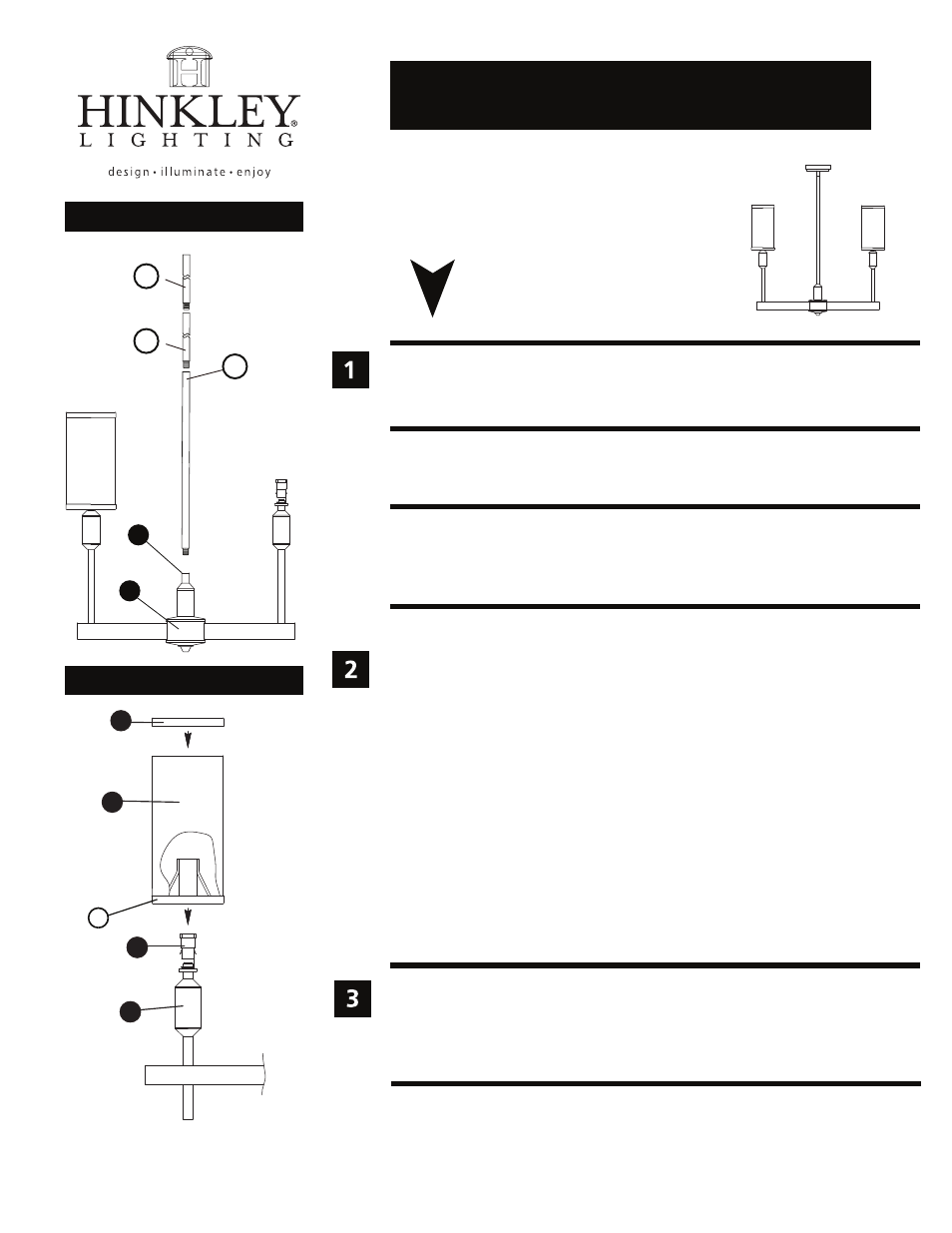

Drawing 1 - Assembly
Drawing 2 - Assembly
1.1.13
B
C
A
2
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1
6
2
3
24
5
H
1. To assembly shade first slip candle sleeve, shade harp, and glass (5) over socket (4)
on main body (3).
2
3
. Fixture should be lamped accordingly at this time.
. Slip ring (6) onto top of glass (5).
NOTE: this fixture can be mounted as a semi-flush or pendant, follow instructions below
after determining how the fixture will be installed.
Semi- flush mounting:
1. To mount as a semi flush, slip one 12” stem (A) and thread into coupler (2) at located
on top of main body (1) - see Drawing 1.
2. Then mount fixture to ceiling following instruction sheet (IS19-91).
Pendant Mounting:
1. It will be necessary to determine the height at which the fixture will be hung and the
number, and length of stems that will be required.
2. Next begin by slipping a 12” stem along wire and threading it into coupler (2) located
on the main body (1).
3. Continue added lengths of stems (B), (C), until the required length needed is assembled.
4. Fixture is ready for mounting, please follow instruction sheet (IS19-91) to complete
installation, and return to this section of the instructions to install the shade.
