assembly instructions

Family: Atlantis Item No. 1641

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

.

start here

1641

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

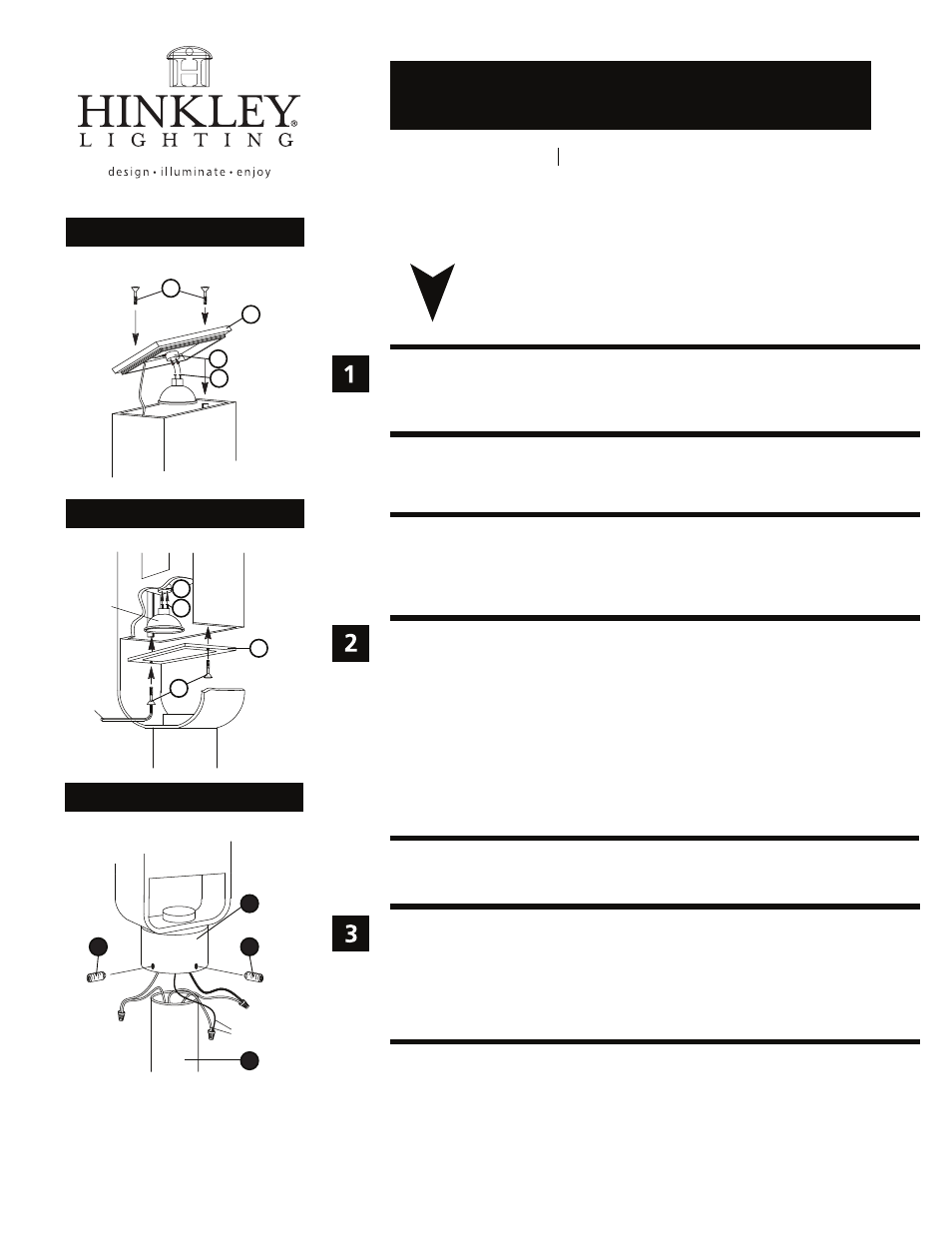

Drawing 1 - Installing top lamp

*** The construction of this fixture will be accomplished by first lamping the
fixture making all necessary electrical connections, and then mounting the

fixture to pre-installed post.

10.19.10

Drawing 2 - Installing bottom lamp

1. To install top lamp remove the 2 phillip head screws (1) - See Drawing 1.
2. Lift lid (2) and locate socket (4).

3. Take GU-10 MR 16 lamp and slip pins (3) into socket (4) and roatate bulb to lock it in
position.
4. To lamp bottom of 1641 remove bottom cover (5) by removing screws (6) using
allen wrench supplied - See Drawing 2.
5. Install GU-10 lamp by slipping pins (7) into socket (8) and rotating lamp to lock it
in position.
6. Replace top and bottom covers.
7. Fixture is ready for installation.

Drawing 3 - Fixture installation

1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 3.
2. When fixture is slipped over pole make sure no wires are being pinched between
the top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to post.

1

2

4

3

7

8

5

6

MR-16
lamp

allen
wrench

A

B

C

C

ground wires
