Hinkley Lighting WINDSOR 1892 - Manual

assembly instructions
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, attaching the mounting strap to the junction box,
making all necessary electrical connections, hanging the fixture from the
ceiling, and then installing the glass lens.
start here
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

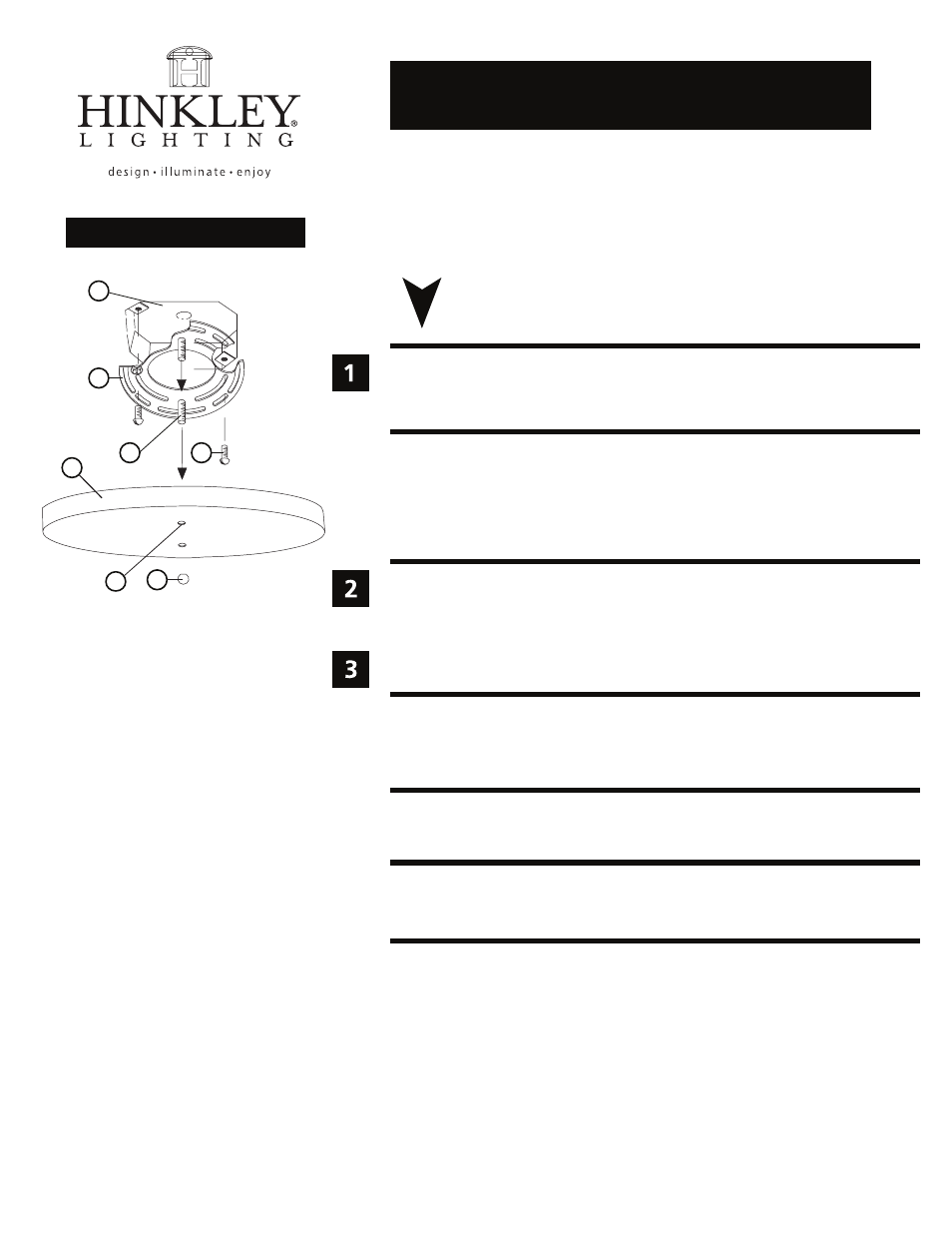

Drawing 1 - Mounting Detail
J
B
A G
E C
1. Prepare mounting strap (B) for mounting by installing screws (A) into mounting
plate (B) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (C)
in the canopy (1).
2. Attach mounting plate (B) to junction box (J), using screws (G) provided and slip
supply wires through large center hole.
1. Hang the fixture by slipping canopy (D) over screws (B) and holding in position - see
Drawings 1.
2. Thread ball knobs (E) onto end of screws (B) and tighten to secure fixture to ceiling.
D
