FR49433RCO
PROSECCO
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first spreading the arms to there
proper position, assembling main fixture assembly, installing mounting hardware to
junction box, making all necessary electrical connections, hanging the fixture and then
installing the fixture shade and crystals.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1 To assemble main body, slip center tube (b) along wire and thread into nipple (c)
located at the top of the main body assembly (a) - See Drawing 2.
2 Slip outer tubing (d) over center tube (b) followed by cap (e).
3 Slip loop (f) along wire and thread onto top of center tube (b) and tighten.
4 Rotate arms (i) until they are approximately 120 degrees apart - See Drawing 1.
STEP 2 Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer
back to this sheet to continue installation of this fixture.
STEP 3
1 To install shade, remove socket ring (1) from socket (3)- See Drawing 2.
2 Slip candle sleeve (2) followed by shade (4) over socket (3) and hold in position.
3 Thread socket ring (1) onto socket (3) and hand-tighten to secure shade.
4 Fixture can now be lamped accordingly.
STEP 4
This Prosecco chandelier uses 3 sizes of crystal pendalogues.
1 Working from the top of the fixture down, attach large crystal pendalogues (3)
to eyelets (g) - See Drawing 2.
2 Attach small crystal pendalogues (1) to eyelets (h) .
3 Attach medium crystal pendalogue (2) to eyelet (j) .

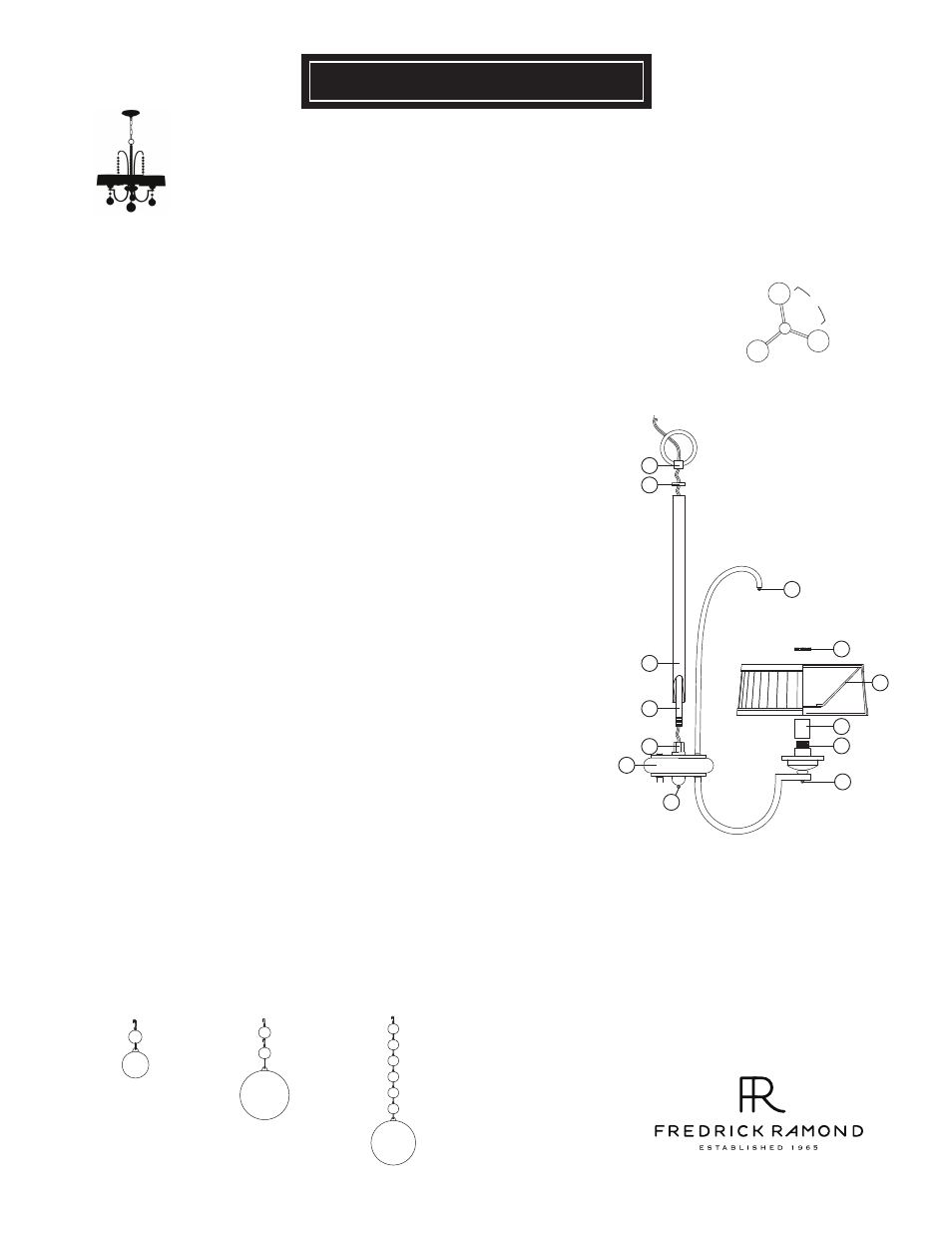

[ DRAWING 1 ]
[ DRAWING 2 ]
c
Bulbs: 60W CAND. G 16½ Replacement Parts: SHADE: R49433SH CRYSTALS: R49430CRY-B1,
` R49430CRY-C2, R49430CRY-C6
1.26.09
800.421.3517 WWW.FREDRICKRAMOND.COM
i
i
i
120°
b
d
1
g
2
3
4
e
f
a
crystal 1
R49430CRY-B1
crystal 2
R49430CRY-c2
crystal 3
R49430CRY-C6
h
j
