assembly instructions
Family: Envy Item No. 5914
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Remove barrel knobs (C) from fixture - see Drawing 1.
2. Reomve retainer plate (A) from backplate (D).
3. Attach retainer plate (A) to junction box using 2 screws (B).
4.
1. Slip holes (G) in backplate (D) over screws (F) on retainer plate (A).
2. Thread barrel knobs (C) onto end of screws (F) and tighten to secure backplate.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall and then installing the fixture glass.
start here
5914
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

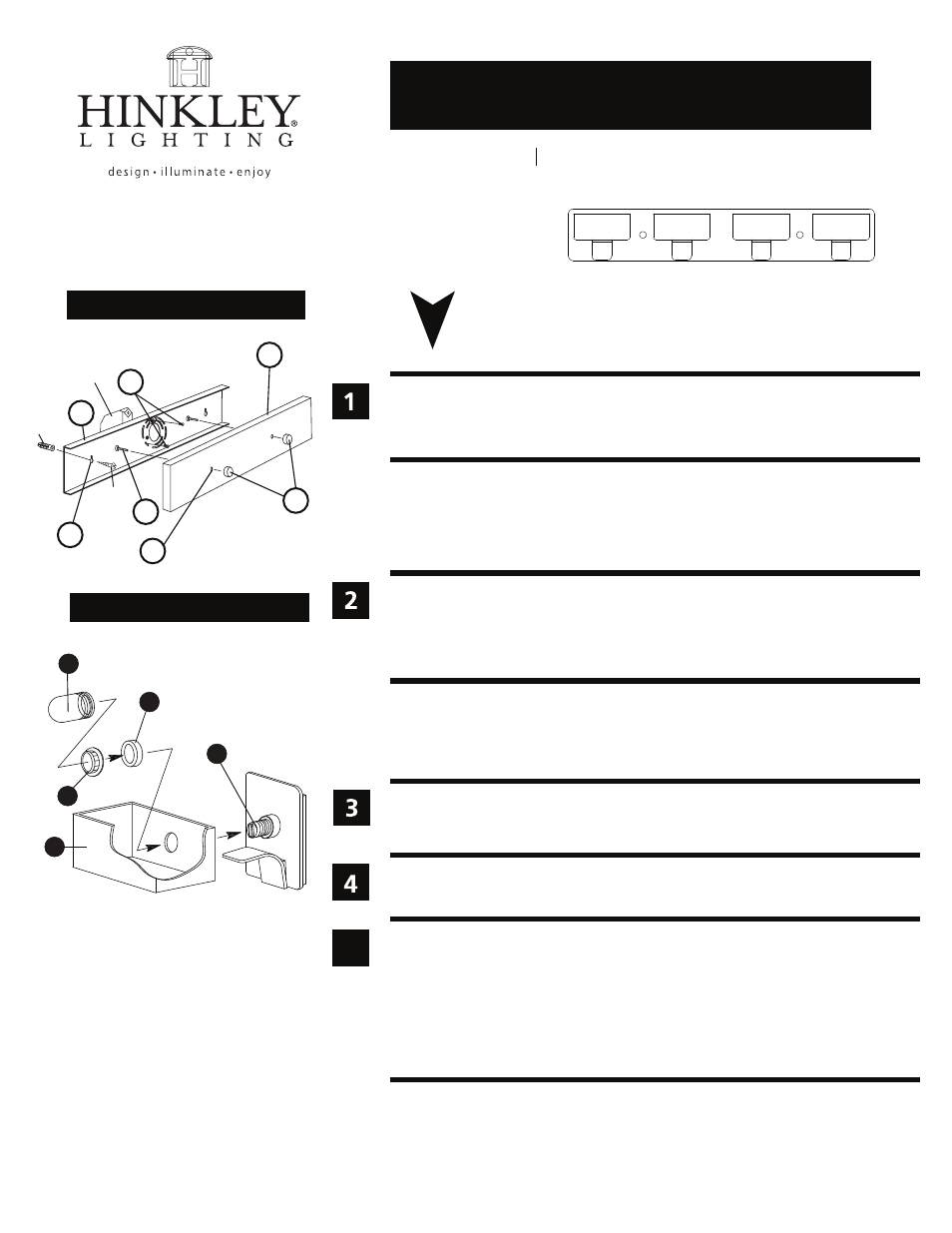

Drawing 1 - Strap Detail
Drawing 2 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to complete installation of this fixture.
5
6.1.11
1. To install glass first remove socket ring (3) and spacer (4) from socket (1) -See
Drawing 2.
2. Slip hole in glass (2) over socket.
3. Slip spacer (4) onto socket and then thread socket ring (3) back onto socket and
tighten to secure glass.
4. Fixture can now be lamped accordingly.
5. After lamping thread bulb shield (5) onto socket.
1
2
4
5 Additional wall anchors supplied can be installed at keyhole points (E).
3
B
A
C
D
F
G
E
wall
anchor
anchor
screw
junction
box
