Hinkley Lighting PARKER 4438KZ - Manual

assembly instructions
Family: Parker Item No. 4438 KZ
1. Find a clear area in which you can work.
1. Rotate arms (A) outward from current position until they are equally spaced,
approximately 60 degrees apart. Note - DO NOT rotate the two arms that line up with the
center column - see
Drawing 1 .
2. Rotate arms (B) outward from current position until they are equally spaced,
approximately 120 degrees apart.
3. Refer to hanging instruction sheet (I.S.19) provided to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
1. Remove threaded socket ring (2) from socket (1) - see Drawing 2.
2. Slip glass (3) over socket (1).
3. Thread socket ring (2) onto socket (1) to secure glass (3).
4. Fixture can now be lamped accordingly.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body structure, installing the mounting hardware to the junction box, hanging
the fixture from the ceiling and then installing the fixture glass.
start here
4438
Note: Maximum wattage for 4438 fixture is 75 watts per bulb. 4.17.09
3

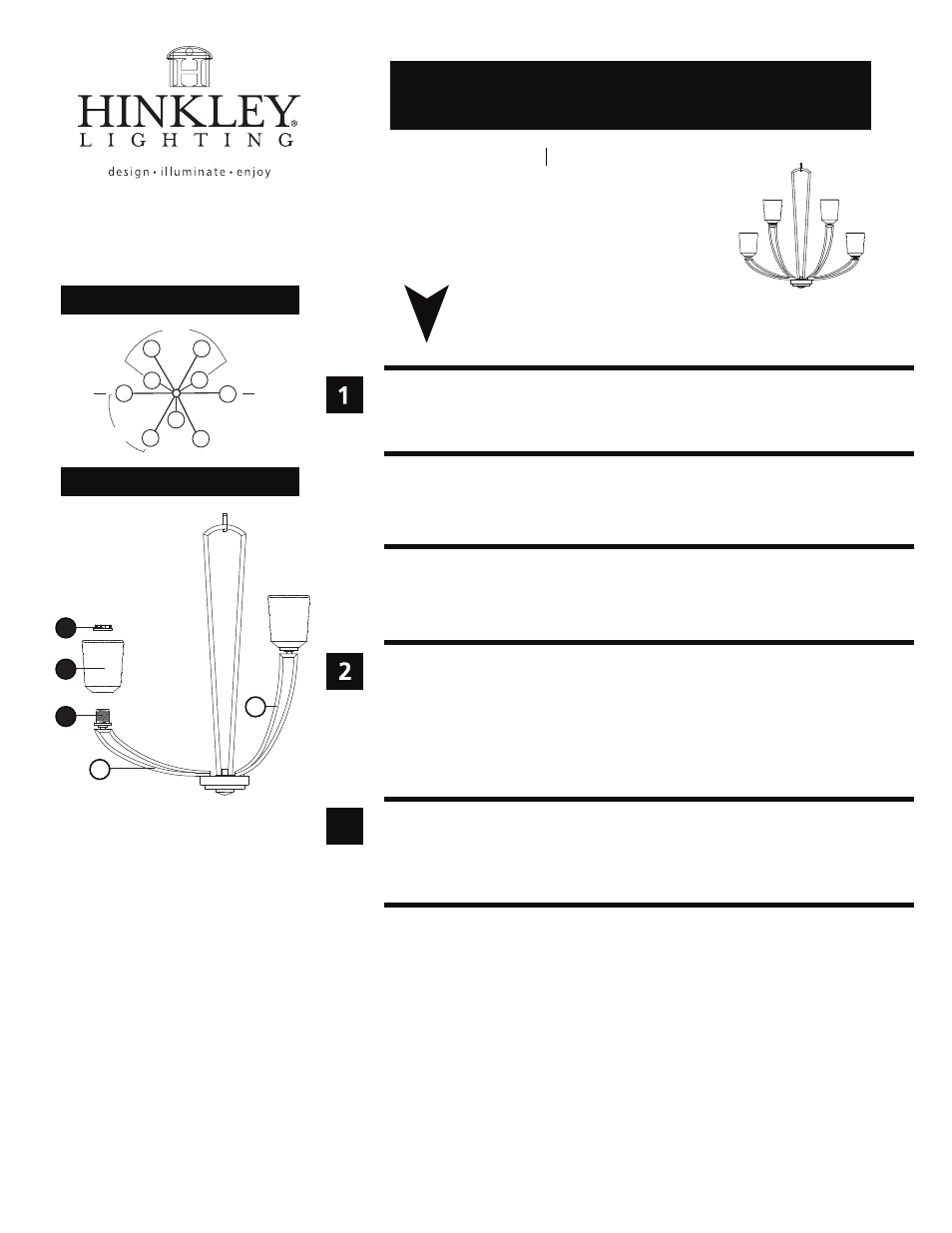

Drawing 1 - Fixtu
Drawing 2 - Fixture Assembly
re Assembly
60º
120º
2
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
3
1
A
B
A A
A
A A
A
B B
B
do not
rotate do not
rotate
