Hinkley Lighting DAPHNE 5925 - Manual

assembly instructions
Family: Daphne Item No. 5925
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prior to installing glass, fixture can now be lamped accordingly. Note: During the
installation of the bulbs, do not touch the glass portion with your fingers. Gloves are
recommended.
2. Clip glass bulb shields (2) onto socket (1) - see Drawing 2.
3. Attach bottom glass shield (3) using square screw (4).
4. Attach glass (5) using square screws (6).
*** The construction of this fixture will be accomplished by first mounting the
mounting the retainer plate to the junction box, making all necessary electrical
connections, mounting the backplate to the retainer plate and then installing the
fixture glass.
start here
5925
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5

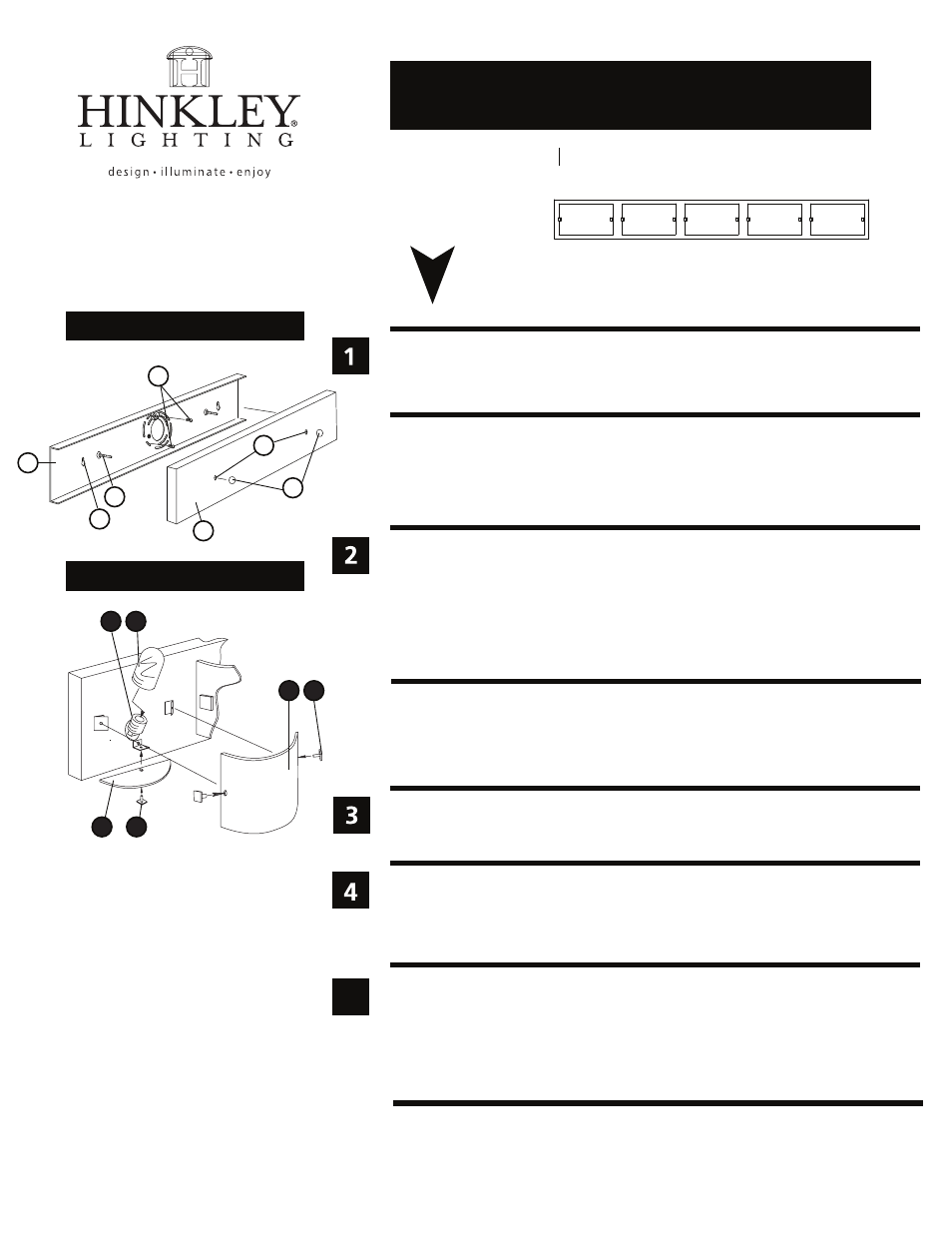

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
6.18.08
1 2
3
5 6
4
B
A
F
D
C
G
E
1. Release mounting strap (A) by removing the 2 ball knobs (C) on the front of the
fixture’s backplate (D) - see Drawing 1.
2. Remove retainer plate (A) from backplate (D).
3. Attach retainer plate (A) to junction box using two 8-32 screws (B).
4. Additional screws can be installed at points (E) for additional mounting support.
Please use apropriate anchor for material the fixture is being mounted to.
1. To mount fixture, slip holes (G) in backplate (D) over screws (F) on retainer plate (A)
- see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (C) onto the end of screws
(F), and tighten to secure backplate to the wall.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
