Hinkley Lighting DARIEN 3963PL - Manual

assembly instructions
Item No. 3963
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the main body
of the fixture, making all necessary electrical connections, hanging the fixture from the
ceiling, and then installing the glass.
star t here
3963
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

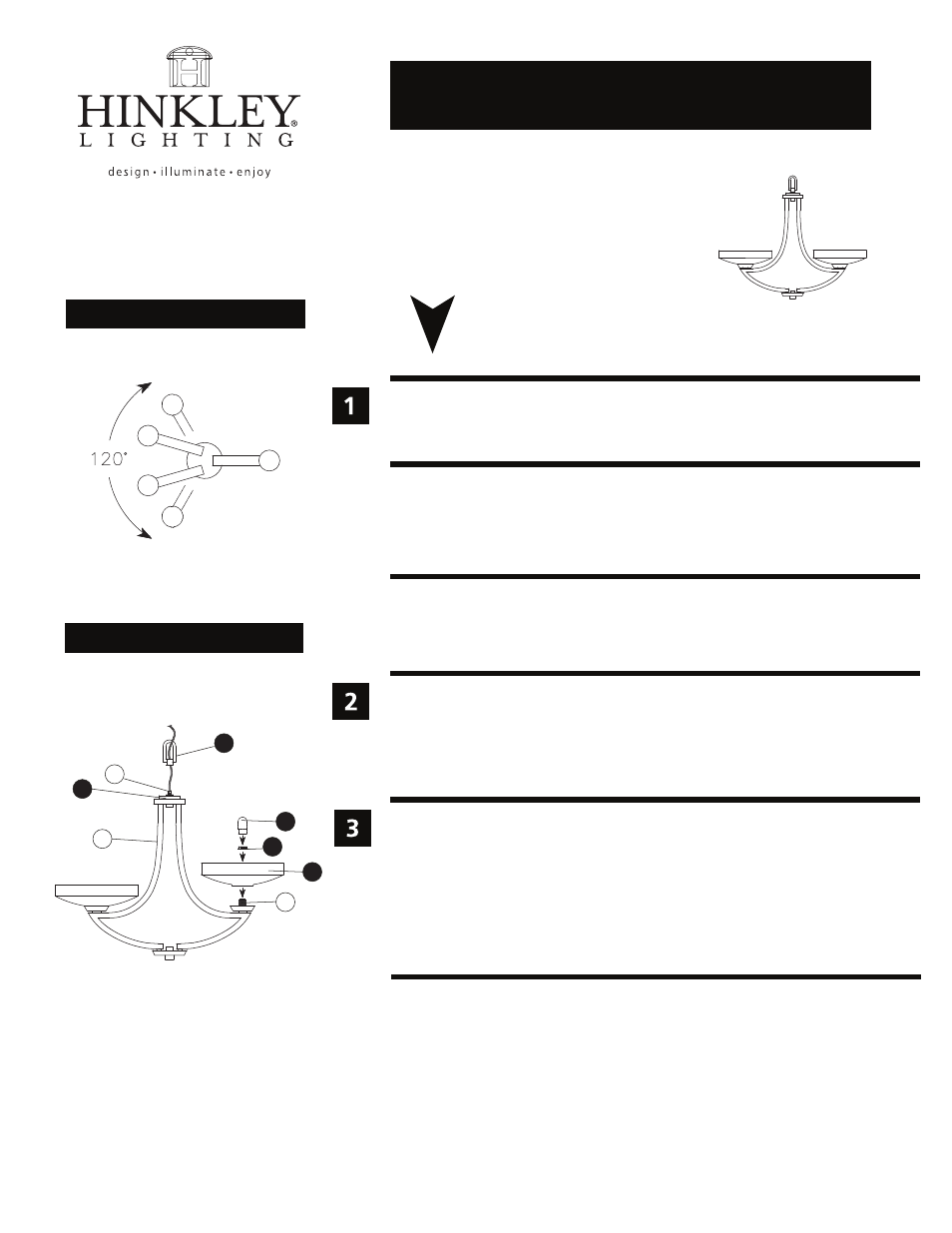

Drawing 2 - Fixture Assembly
6.1.12
1. Rotate arms (A) until they are equally spaced 60 degrees apart - see Drawing 1.
2. Slip loop (1) along wire and thread onto tube (B) at top of center plate (2).
3. Please refer to hanging instruction sheet (I.S. 19) provided to hang this fixture.
Then refer back to this sheet to install glass.
1. To install glass remove socket ring (4) from socket (C) - see Drawing 2.
2. Slip glass (3) over socket (C).
3. Thread socket ring (4) onto socket (C) and tighten to secure glass.
4. Fixture can be lamped accordingly.
5. Thread bulb sheild (5) onto socket, just until snug, do not over tighten.
6. Fixture is complete.
Drawing 1 - Arm Spacing
