assembly instructions

Family: Windgate Item No. 3009

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling
the fixture, installing the fixture glass, installing the mounting bracket to the
junction box, making all necessary electrical connections, hanging the
fixture from the ceiling, and then installing the glass.

start here

3009

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

1. To install glass slip one rubber washer (6) onto stud of decorative knob (7).

Now slip glass panel (8) onto stud (7) and hold in position - See Drawing 2.

2. Slip second rubber washer (6) onto stud (7) and then thread decorative with stud

knob (8) onto end of arm (9) to secure glass.

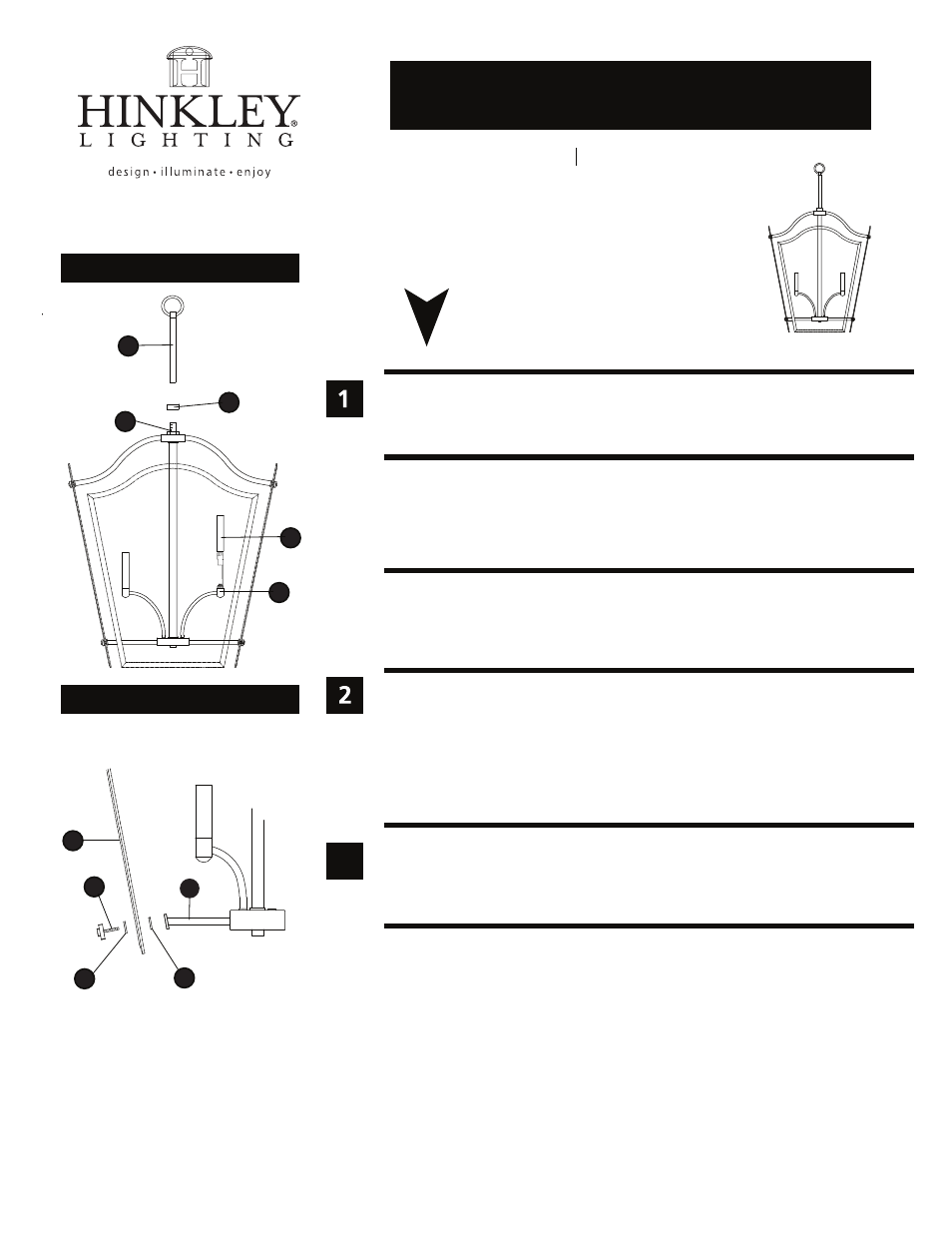

Drawing 1 - Fixture Assembly

Drawing 2 - Glass Installation

01.01.12

8

6

6

3

1

3

4

5

2

1. To assembly main fixture body first slip cap (2) along wire and over threaded

stem (1).

2. Slip top column with loop (3) along wire and thread onto threaded stem (1) and

tighten.

3. Slip candle sleeve (4) over socket (5) to complete assembly of main fixture body.

4. Fixture is ready for hanging, follow hanging instruction sheet (I.S.-19) provided.

After installation refer back to this section of instruction sheet to install glass.

7

9
