assembly instructions
Item No. 51560
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the glass.
start here
51560
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

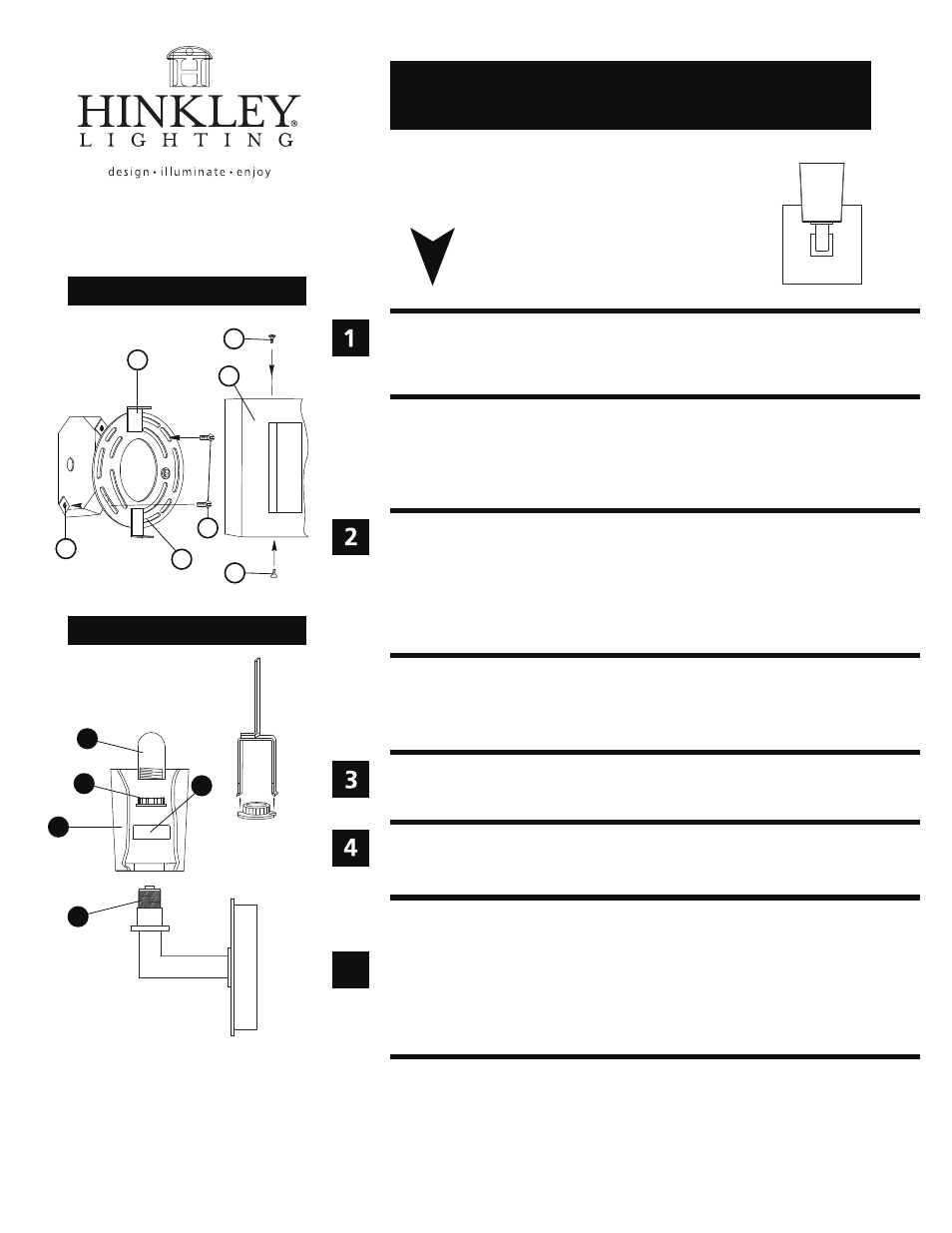

Drawing 2 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
1. Remove main mounting plate (A) from fixture back plate (B) by removing the flat
head screws (C) - see Drawing 1.
2. Slide the wires from the junction box, through the large center hole, making sure
curved slots (D) line up with the threaded holes (E) in the junction box and tabs on
mounting brakect are parallel to sides of junction box.
3. Using two 8-32 screws (F) attach the main mounting plate (A) to the junction box,
making sure side of mounting plate (A) is square to ceiling.
1. Mount the fixture by sliding the back plate (B) over mounting plate (A) - see
Drawing 1.
2. Attach the back plate (B) to the mounting plate (A) using the screws (C).
01.01.13
Drawing 1 - Fixture Mounting
A
B
C
D
E
F
C
1. Slip glass (2) over socket (1).
2. Slip socket spacer (3) over socket (1).
3. Thread socket ring (4) onto socket (1), before tightening socket ring adjust glass.
4. Tighten socket ring (4) using socket ring tool porvided. Insert tines of socket ring
tool into nothces of socke ring, and tighten to secure glass, install G-9 lamp provided,
and then thread bulb shield (5) onto socket until snug.
2
3
5
4
1
socket
ring
tool
