Hinkley Lighting PARKER 4431KZ - Manual

assembly instructions
Family: Parker Item No. 4431 KZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prepare gem strap (A) for mounting by threading two screws (B) provided into
back of gull wing bracket of gem strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the ceiling pan (1) - see Drawings 1 and 2.
2. Mount gem strap (A) to junction box (J), using the two 1” screws (C) provided.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then
refer back to this sheet to continue installation of this fixture.
1. Hang the fixture by slipping the holes (D) in the ceiling pan (1) over the screws (B)
in the mounting strap (A) - see Drawing 2.
2. Thread on ball knobs (F) to secure fixture to the ceiling.
1. Before installing glass, fixture can now be lamped accordingly.
2. Thread center stem (2) into coupler (3) - see Drawing 3.
3. Slip metal washer (4) followed by rubber washer (5) onto end of center stem (2).
4. Slip glass (6) onto center stem (2) and hold in position.
5. Thread hex nut (7) onto end of center stem (2) and tighten to secure glass (6).
6. Thread decorative cap (8) onto end of center stem (2) and tighten.
*** The construction of this fixture will be accomplished by first assembling the
main body, mounting the mounting strap to the junction box, making all
necessary electrical connections, hanging the fixture from the ceiling and then
installing the fixture glass.
start here
4431
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

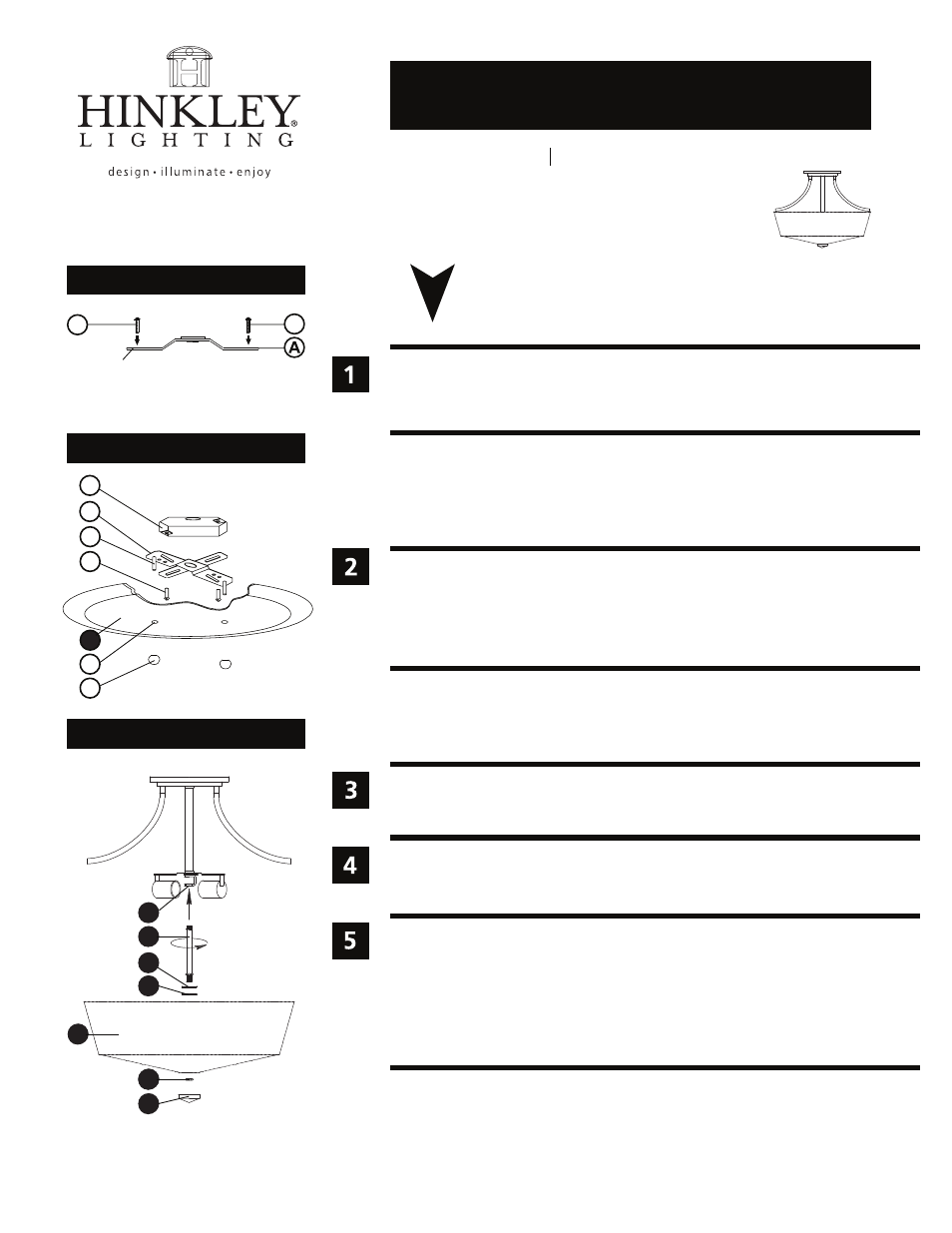

Drawing 2 - Fixture Mounting
Drawing 3 - Glass Installation
B
2
77
8
6
4
5
3
D
F
J
C
A
1
Drawing 1 - Strap Detail
B
(side view)
gull wing
bracket
B
