MUSE
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first assembling the body of the
fixture, installing the mounting hardware to the junction box, making all necessary
electrical connections, hanging the fixture and then installing the fixture glass.
SAFETY WARNING:
Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1
Slip loop (1) along wire and thread onto thread tube (2) and thighten.
2
Fixture can be installed at this point.
STEP 2
Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
STEP 3
1
Remove ring (7) and spacer (6) from socket (3) - See Drawing 1.
2
Slip mirrored glass (4) over socket followed by opal glass (5).
3
Slip spacer (6) and thread ring (7) onto socket (3) adjust glass till straight and
4
Fixture can now be lamped accordingly.

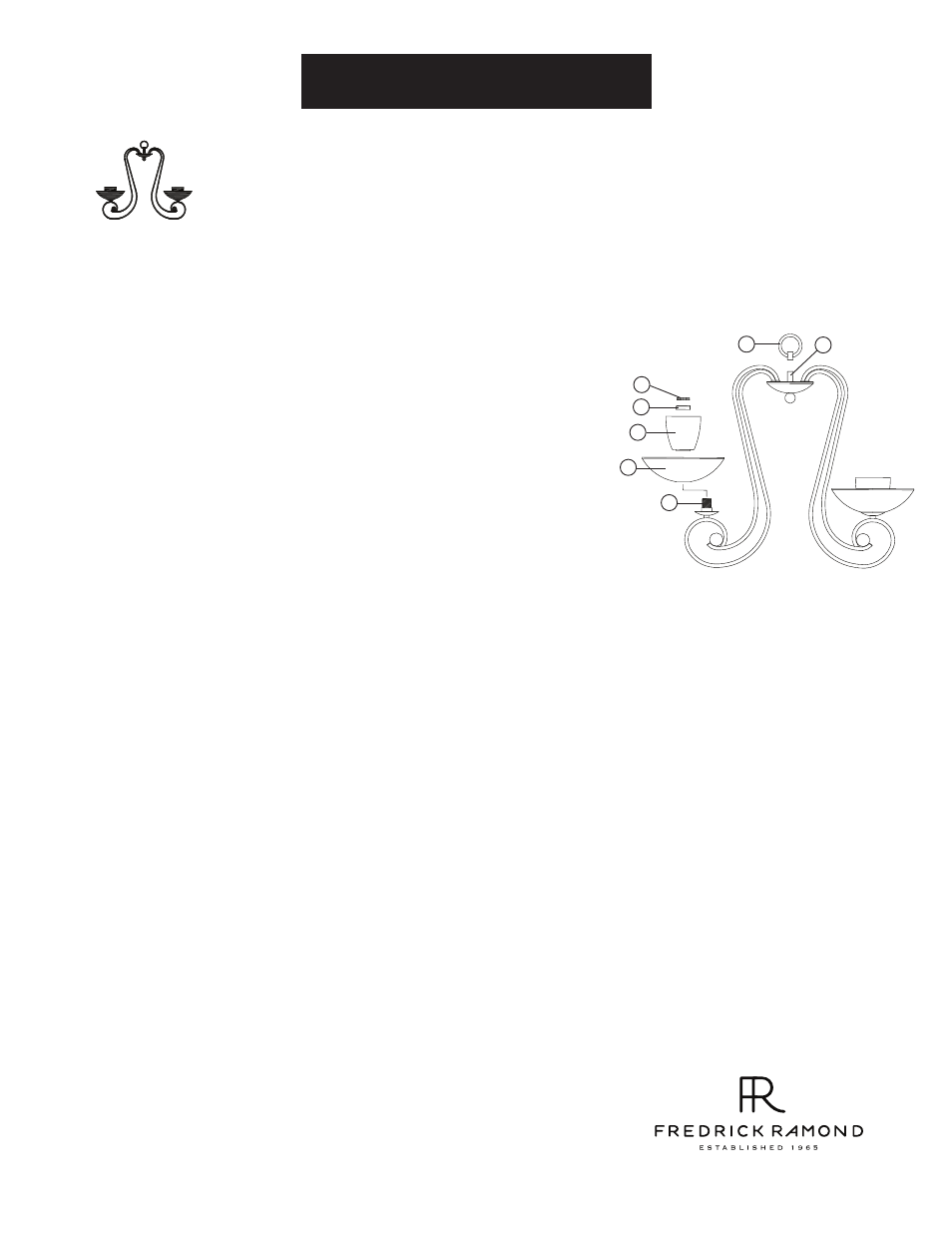

[DRAWING 1]
Bulbs:
60W g16-1/2 CAND .
Replacement Parts:
GLASS: R40600MIR; R40600OPAL
06.01.11
800.421.3517 WWW.FREDRICKRAMOND.COM
2
1
3
4
7
5
6
tighten socket ring (3) to secure glass.
