Hinkley Lighting RALEY 1606 User Manual
Start here, Assembly instructions

assembly instructions
Family: Raley Item No. 1606 MB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prepare mounting strap (A) by threading the two 1 1/4” long mounting screws (B)
into the back of the gull wing bracket - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the back plate (E) - see Drawings 1 and 2.
2. Attach mounting strap (A) to junction box (J) using two 1” screws (C) - see Drawing 2.
1. To assemble fixture, thread ball knob (2) onto top of main fixture body (1) - see
Drawing 3.
2. Remove socket ring (3) from socket (4).
3. Slip cage assembly (5) over socket (4) and hold in position.
4. Thread socket ring (3) onto socket (4) to secure cage assembly.
GLASS REPLACEMENT INSTRUCTIONS
1. Remove lamp from fixture and remove socket ring (3) from socket (4).
2. Remove cage assembly (5) from main body (1).
3. To replace glass, remove ball knob (2) from studs (5) - see Drawing 3.
4. Slip the cage assembly (3) off of the fixture roof (6).
5. Remove glass clips inside of cage and take out broken glass.
6. Replace glass and follow steps 1-3 in reverse order to reassemble fixture.
*** The construction of this fixture will be accomplished by first assembling the
fixture, installing the mounting hardware, making all necessary electrical connec-
tions, and then mounting the fixture.
start here
1606
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

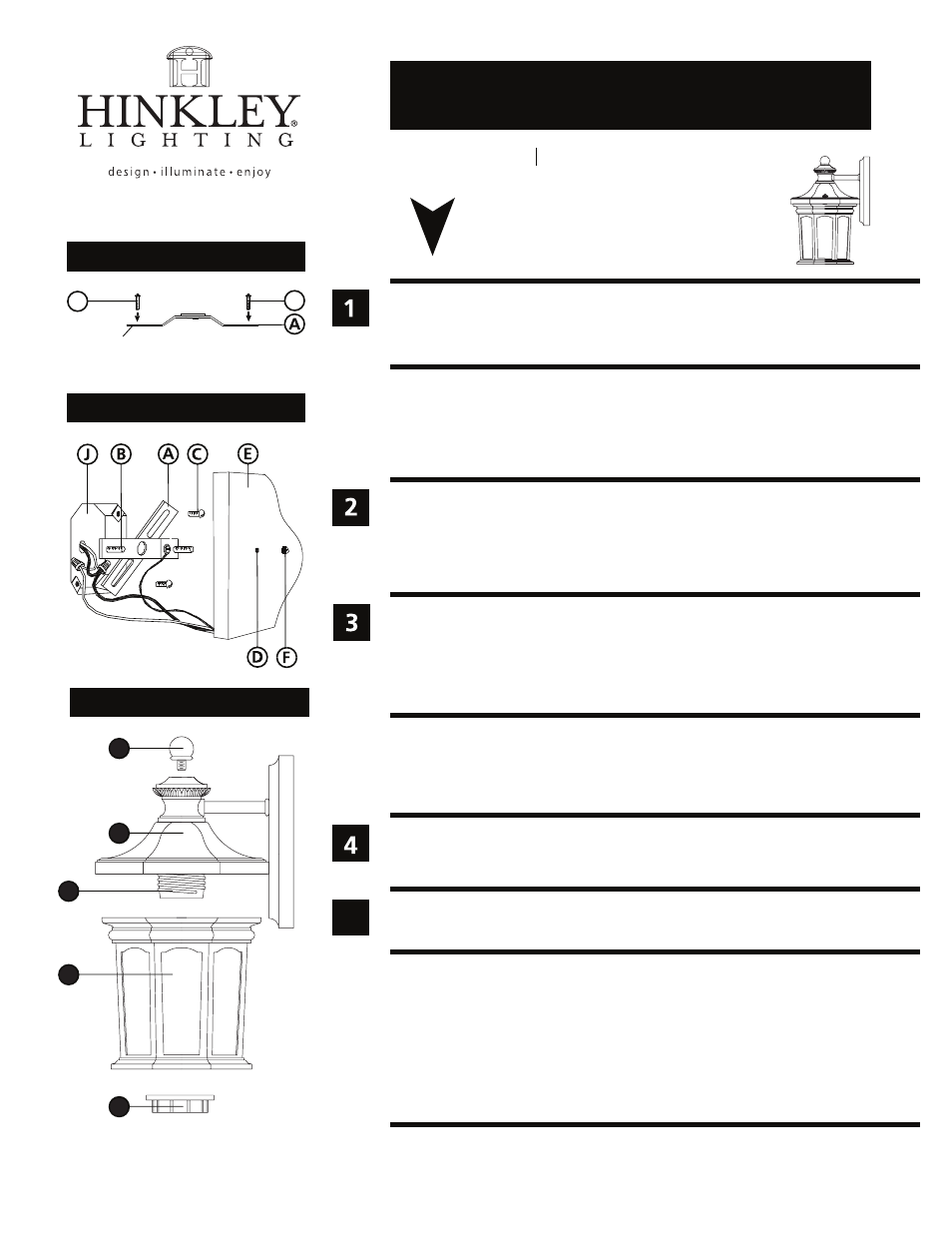

Drawing 1 - Strap Detail
Drawing 2 - Fixture Mounting
B
(side view)
gull wing
bracket
backplate
B
Drawing 3 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then
refer back to this sheet to continue installation of this fixture.
2
4
5
1
3
1. Slide backplate (E) over screws (B) and secure with ball knobs (F) - see Drawing 2.
2. Fixture can now be lamped accordingly.
5
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
