assembly instructions
Family: Casa Item No. 4309 OL
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body, installing the mounting hardware, making all necessary electrical
connections, hanging the fixture from the ceiling and then installing the glass.
start here
4309
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer to the hanging instruction sheet (I.S.19-50) provided to complete installation
of this fixture.

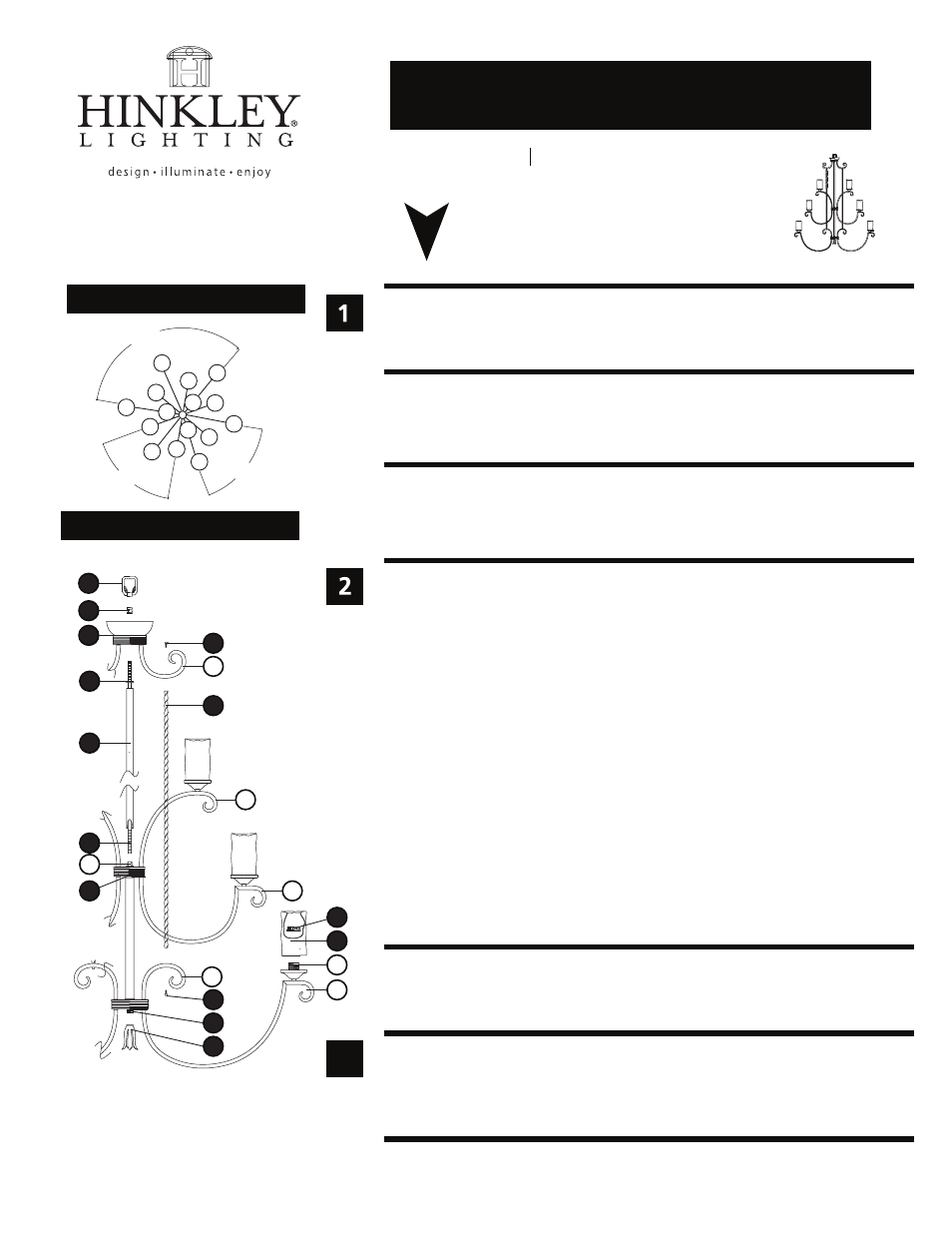

Drawing 2 - Assembly
12.29.08
1. Remove socket ring (10) from socket (G) - see Drawing 2.
2. Slip glass (11) over socket (G).
3. Thread socket ring (10) onto socket (G) and tighten to secure glass.
4. Fixture can now be lamped accordingly.
1. Slip center rod (2) along wire and thread it into coupler (D) - see Drawing 2.
2. Slip outer tube (3) over center rod (2).
3. Slip cap (4) along wire and onto top of outer tube
(3) .
4. Slide top scroll assembly (5) over center stem (2).
5. Slide spacer (6) along wire and over center stem (2).
6. Slip loop (7) along wire and thread onto center rod (2). DO NOT TIGHTEN at this time.
7. Spread top tier arms (A) until they are equally spaced 120 degrees apart - see
Drawing 1.
8. Spread middle tier arms (B) until they are equally spaced 60 degrees apart.
9. Spread the bottom tier arms (C) until they are equally spaced 60 degrees apart and
are between the middle tier arms (B).
10. Take the uprights (8) and attach one end to the top of the lower arms scroll (E),
using the ball knob screws (9) provided.
11. Adjust the top scroll assembly (5) so arms (F) line up with the uprights (8), tighten
loop to secure in position.
12. Attach the top of uprights (8) to the scroll assembly arms (F), using ball knob screws
(9) provided.
3
7
9
6
Drawing 1 - Fixture Assembly
C
C
C
C
C
B
A
A
A
B
B
B
B
B
C
120º
60º
60º
5
4
3
1
2
D
11
10
8
9
F
A
E
B
C
G
13. Thread bottom finial (12) onto threaded tube (13).
13
12
