Hinkley Lighting CAPE COD 2201 - Manual

assembly instructions
Item No. 2201
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble fixture remove coupler (1) from top of fixture along with rubber washer (2). Slip
cage (3) off of center stem (C) located on the post fitter and socket assembly - see Drawing 1.
2. Slip candle sleeve (4) over socket (S).
3. Fixture can be lamped accordingly at this time.
4. Slip cage (3) back onto center stem (C) and replace rubber washer (2) and thread coupler (1)
back onto top of center stem (C) to secure cage (3).
5. Slip top cone (5) onto top of fixture followed by cap (6), rubber washer (7) and ring (8).
6. Thread knurled knob (9) onto end of threaded tube and tighten to complete assembly.
1. Slip post fitter (A) over top of pre-installed post (B) - see Drawing 2.
2. Using the holes in the side of the post fitter as guides, drill three 1/16” diameter
holes in the pole.
3. Now screw in the three sheet metal screws (C) to secure fixture.
*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, and then mounting
the fixture to pre-installed post.
star t here
2201
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections.

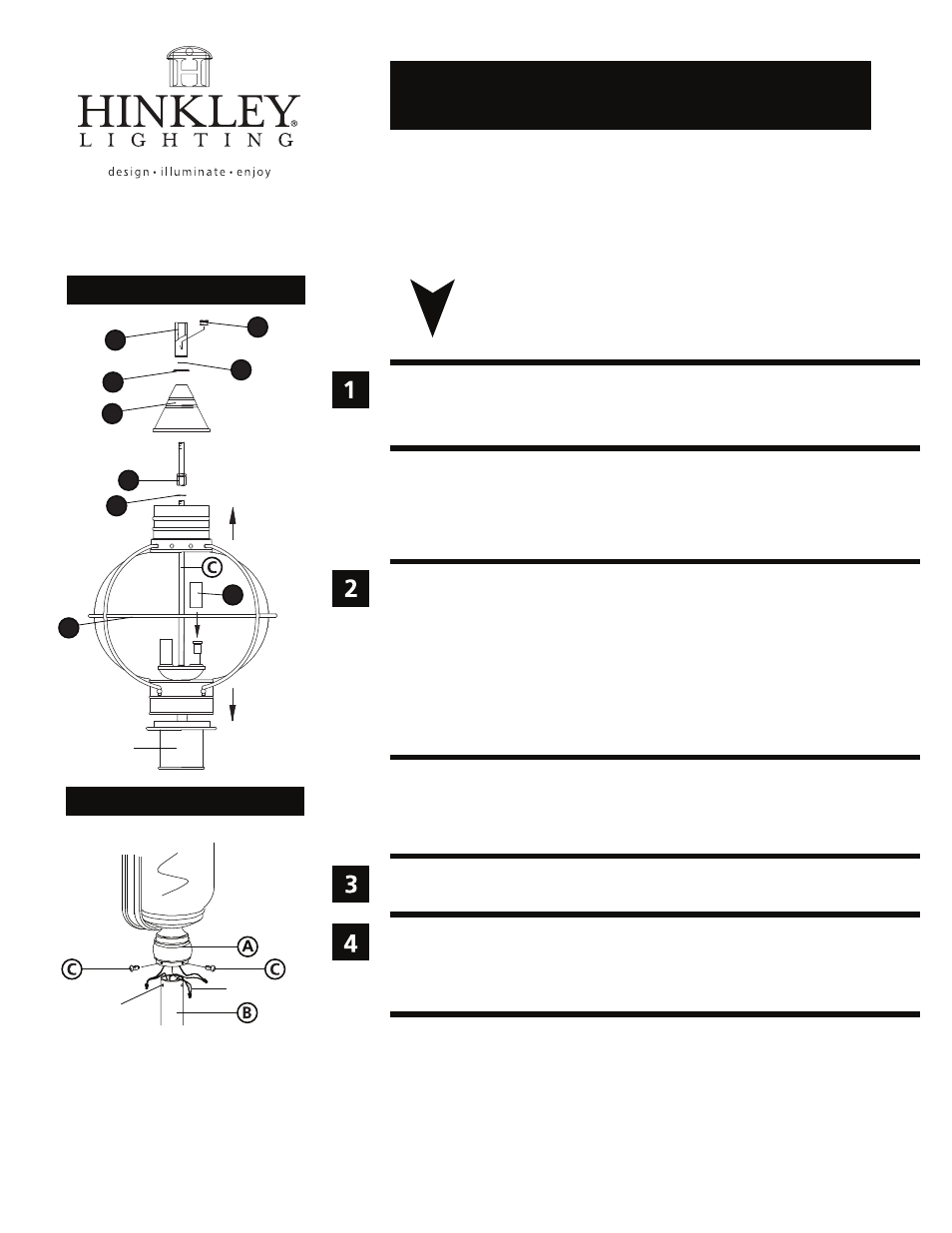

Drawing 2 - Fixture Mounting
Drawing 1 - Fixture Assembly
Mark and
drill holes
prior to
wiring
ground wires
2.7.08
1
2
3
6
5
post fitter
and socket
assembly
4
7
8
9
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
