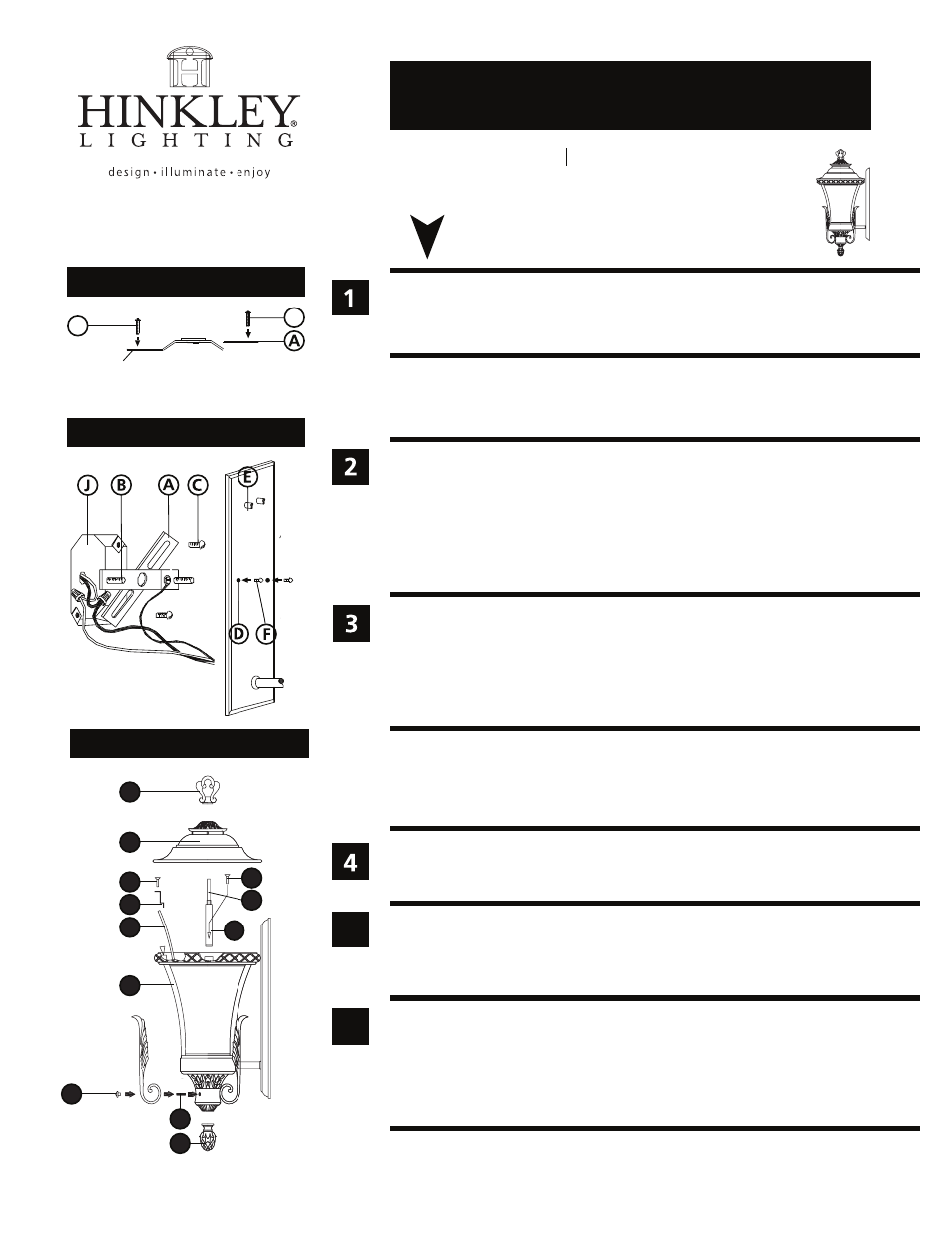

Hinkley Lighting BRYNMAR 1934 - Manual

assembly instructions
Family: Brynmar Item No. 1934 RB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prepare mounting strap (A) by threading the two 8-32 long mounting screws (B)
into the back of the gull wing bracket - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the back plate (E) - see Drawings 1 and 2.
2. Attach mounting strap (A) to junction box (J) using two 8-32 screws (C) 1” long (not
provided) - see Drawing 2.
1. Slip the two mounting screws (B) through the two mounting holes in the backplate
(E) - see Drawing 2.
2. While holding fixture in place, thread the two ball knobs (F) onto mounting screw
(B) and tighten.
1. To assemble main body, slip roof (1) over center stem (7) and seat it properly on the
cage (8) - see Drawing 3.
2. Thread top finial (9) onto end of stem (7) that is protruding from the center of roof (1).
3. To attach decorative leaves (10), screw stud (12) into hole (9).
4. Slip decorative leaf (10) over stud (11) and thread on decorative knob (12).
*** The construction of this fixture will be accomplished by first installing the glass,
making all necessary electrical connections, mounting the mounting strap to the
junction box, mounting the fixture to the wall, and then assembling main body.
start here
1934
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Drawing 1 - Strap Detail
Drawing 2 - Fixture Mounting
B
(side view)
gull wing
bracket
B
Drawing 3 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
6
9
1
3
6
4
2
8
10
11
12
1. To install glass panels, remove screws (3) which retain glass clips (4) in place - see
Drawing 3.
2. Slide glass panels into cage, making sure bottom of glass is in front of tab in bottom
of cage.
3. Replace glass clips (4) using screws (3) that were removed earlier.
4. Mount bracket (5) to top of cage by removing screws (6), putting bracket (5) in place
and threading screws (6) back into hole they were removed from.
7
5
