FR49458BNI
QUATTRO
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first assembling the main body,
installing the mounting hardware to the junction box, making all necessary electrical
connections, hanging the fixture and then attaching the fixture shades.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.

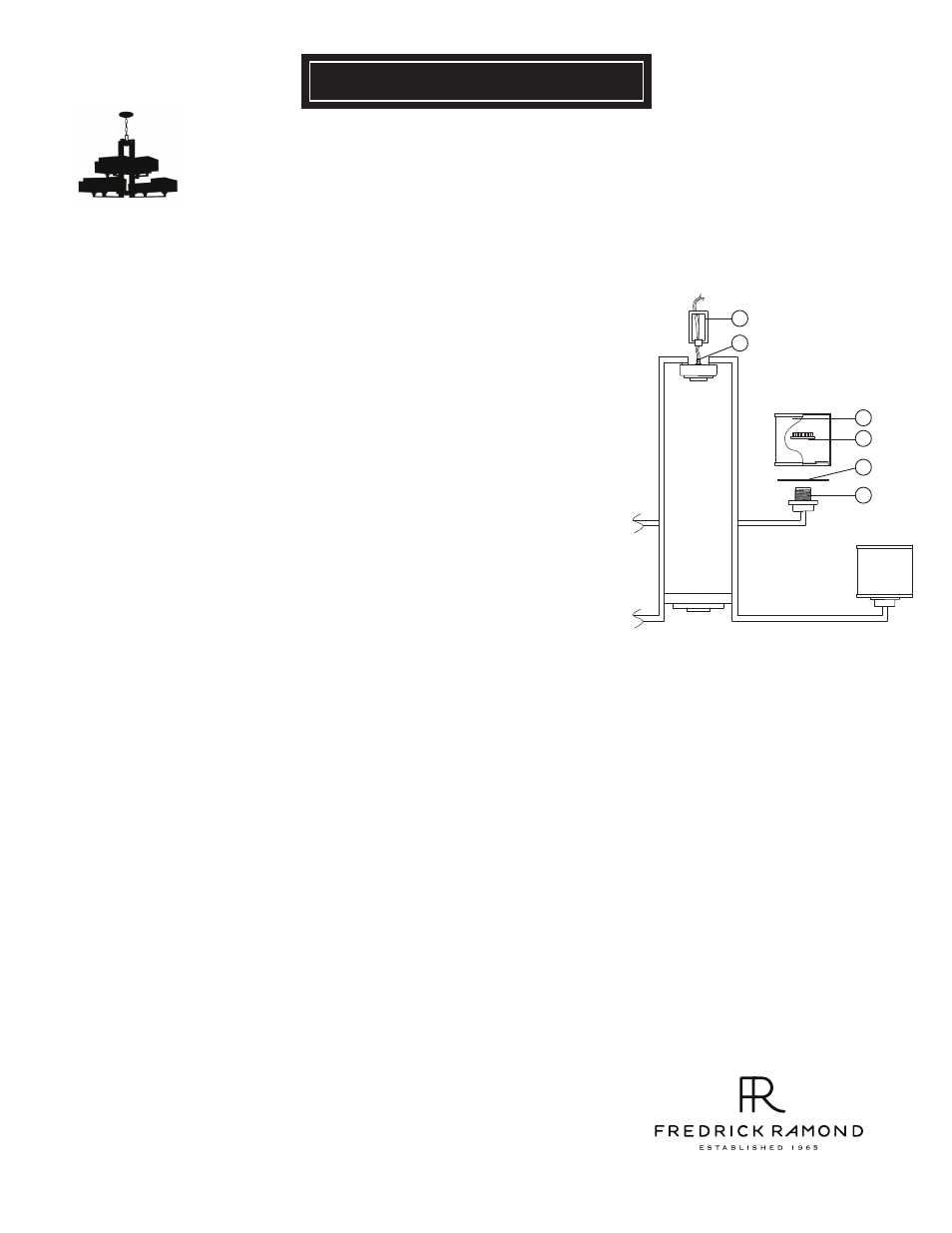

STEP 1
1 Slip loop (a) along wire and thread onto tubing (b).
STEP 2 Refer to Hanging Instruction Sheet [FRIS19] to hang fixture.Then refer back
to this sheet to installshades.
STEP 3
1 To install acrylic lens and shade, remove socket ring (1) from threaded socket (2).
2 Slip lens (3) over threaded socket (2).
3 Slip shade (4) over threaded socket (2). Making sure acrylic lens (3) seats
properly in the bottom of shade (4).
4 Thread socket ring (1) onto socket (2) and tighten to secure parts.
5 Fixture can now be lamped accordingly.
[DRAWING 1]
Bulbs: 75W MED. Replacement Parts: SHADES: R49450SH, R49458SH
DIFFUSER: R49450DF, R49458DF
2.23.10
800.421.3517 WWW.FREDRICKRAMOND.COM
a
1
4
2
3
b
