Hinkley Lighting LANZA 3161OZ User Manual
Start here, Assembly instructions

assembly instructions
Item No. 3161
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first, attaching
mounting strap to junction box, assembling main fixture body, mounting fixture
to the ceiling, lamping the fixture and then installing the acrylic lens.
start here
3161

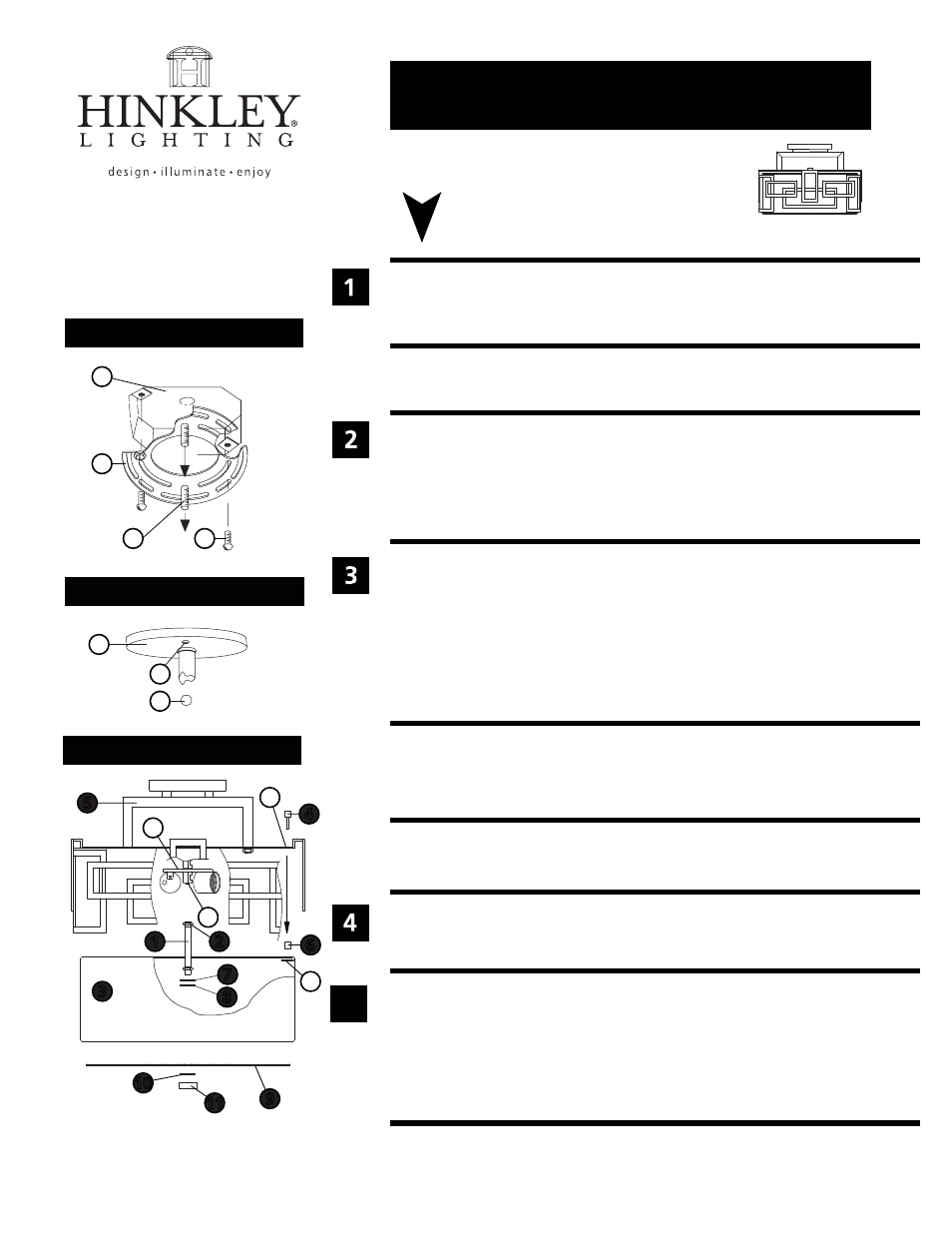

Drawing 3 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
01.01.13
Drawing 2 - Fixture Mounting
Drawing 1 - Strap Detail
J
B
A
G
D
E
C
1. Prepare mounting strap (B) for mounting by installing screws (A) into mounting
plate (B) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (C)
in the canopy (1) - see Drawings 1 and 2.
2. Attach mounting plate (B) to junction box (J), using screws (G) provided and slip
supply wires through large center hole.
1. Hang the fixture by slipping canopy (D) over screws (B) and hold in position - see
Drawings 1 and 2.
2. Thread ball knobs (E) onto end of screws (B) and tighten to secure fixture to ceiling.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1. To prepare fixture for installation, thread center tube (1) into coupler (A), located in
the center of the socket cluster (B), approximately 3/8”. Tighten hex nut (2) against
coupler (A) to secure tube - see Drawing 3.
2. Attach shade (3) to fixture by slipping screw (4) through hole (C) in top brace of main
fixture body (5).
3. Slip shade (3) into center of fixture, and slip spacer (6) over screw (4), and thread
screw into tab (D) of shade (3). Repeat on other side.
4. Fixture can be installed at this time. Please follow directions below.
5
NOTE: Prior to installing lens, fixture should be lamped accordingly.
1. To install acrylic lens (9) first slip flat washer (7) end of center tube (1), installed
earlier, followed by rubber washer (8).
2. Slip center hole of acrylic lens (9) onto end of tube (1) and hold in position.
3. Slip second rubber washer (10) onto end of tube (1) and then thread on knob (11)
to secure lens.
