Hinkley Lighting JOSIE 5375 - Manual

assembly instructions
Family: Josie Item No. 5375
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
assembling the main body of the fixture, mounting the fixture to the wall,
and then installing the glass.
start here
5375
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

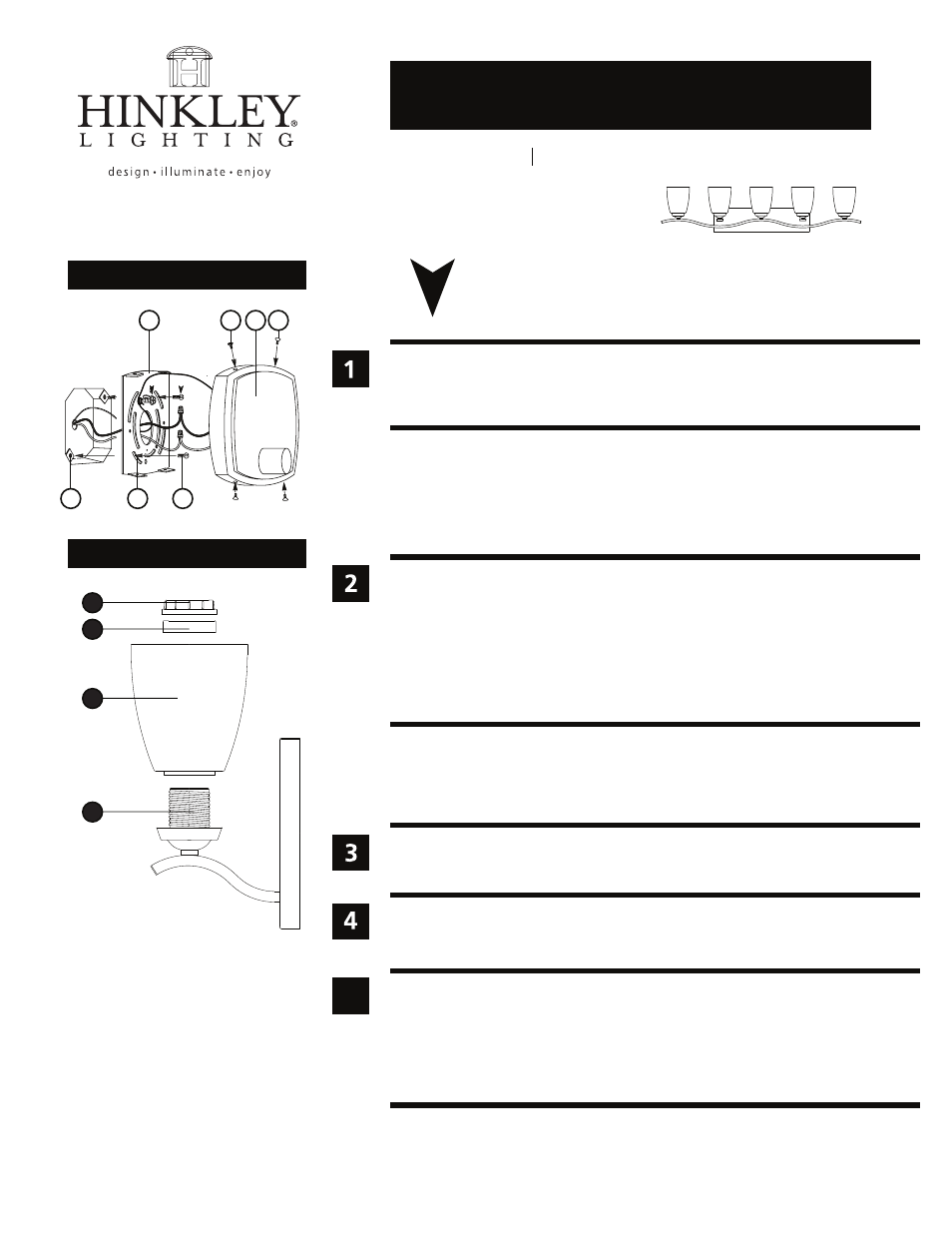

Drawing 2 - Fixture Assembly
1. To install glass, remove the spacer (3) and socket ring (4) from the socket (1) - see
Drawing 2.
2. Place glass (2) over the socket (1).
3. Slip spacer (3) and thread socket ring (4) back on to socket (1) and hand tighten.
Note: Over tightening could cause damage to glass.
4. Fixture can now be lamped accordingly.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
1. Remove main mounting plate (A) from fixture back plate (B) by removing the four
flat head screws (C) - see Drawing 1.
2. Slide the wires from the junction box, through the large center hole, making sure
curved slots (D) line up with the threaded holes (E) in the junction box.
3. Using two 8-32 screws (F) attach the main mounting plate (A) to the junction box,
making sure side of mounting plate (A) is parallel to ceiling.
1. Mount the fixture by sliding the back plate (B) over mounting plate (A) - see
Drawing 1.
2. Attach the back plate (B) to mounting plate (A) with screws (C).
Drawing 1 - Fixture Mounting
3
4
1
2
A
F
B C C
D E
10.26.10
4. Additional support can be provided for mounting plate by using screws in keyhole
slots.
