Hinkley Lighting VICTORY 4130BN User Manual

Star t here, Assembly instructions

background image

assembly instructions

Family: Bravo Item No. 4130

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. Prepare mounting strap (A) by threading the two 1 1/4” long mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.

• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the backplate (E).

2. Attach mounting strap (A) to junction box (J) using two 1” screws (C) provided.

1. To mount fixture, slip the two mounting screws (B) through the two mounting holes (D) in the
backplate (E) - see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (F) on to the end
of the mounting screws (B), and tighten.

*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the glass.

star t here

4130

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

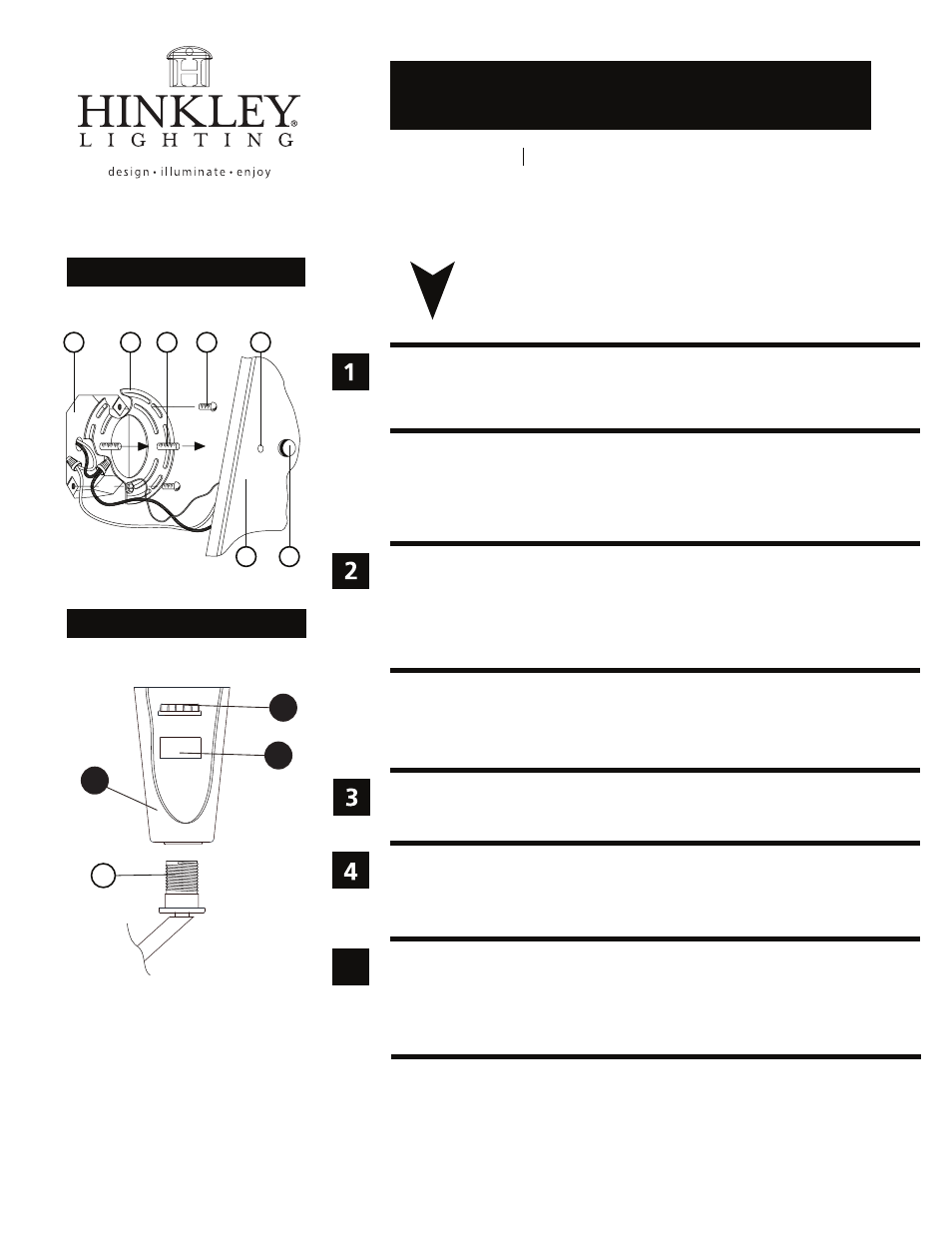

Drawing 1 - Fixture Mounting

Drawing 2 - Glass Installation

Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.

5

A

J

B

C

D

E

F

back plate

01.01.12

1. To install glass, remove socket ring (1) and socket spacer (2) from socket (S).
2. Slip glass (3) over socket (S).

3. Slip spacer (2) and thread socket ring (1) to secure glass (3).

4. Fixture can now be lamped accordingly.

1

2

3

S

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
