H I N K L E Y L I G H T I N G 12600 Berea Road Cleveland, OH 44111 800.446.5539 / 216.671.3300 www.hinkleylighting.com
assembly instructions
Item No. 1791
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first installing the
glass, making all necessary electrical connections, and then mounting the
fixture to the pole.
start here
1791
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

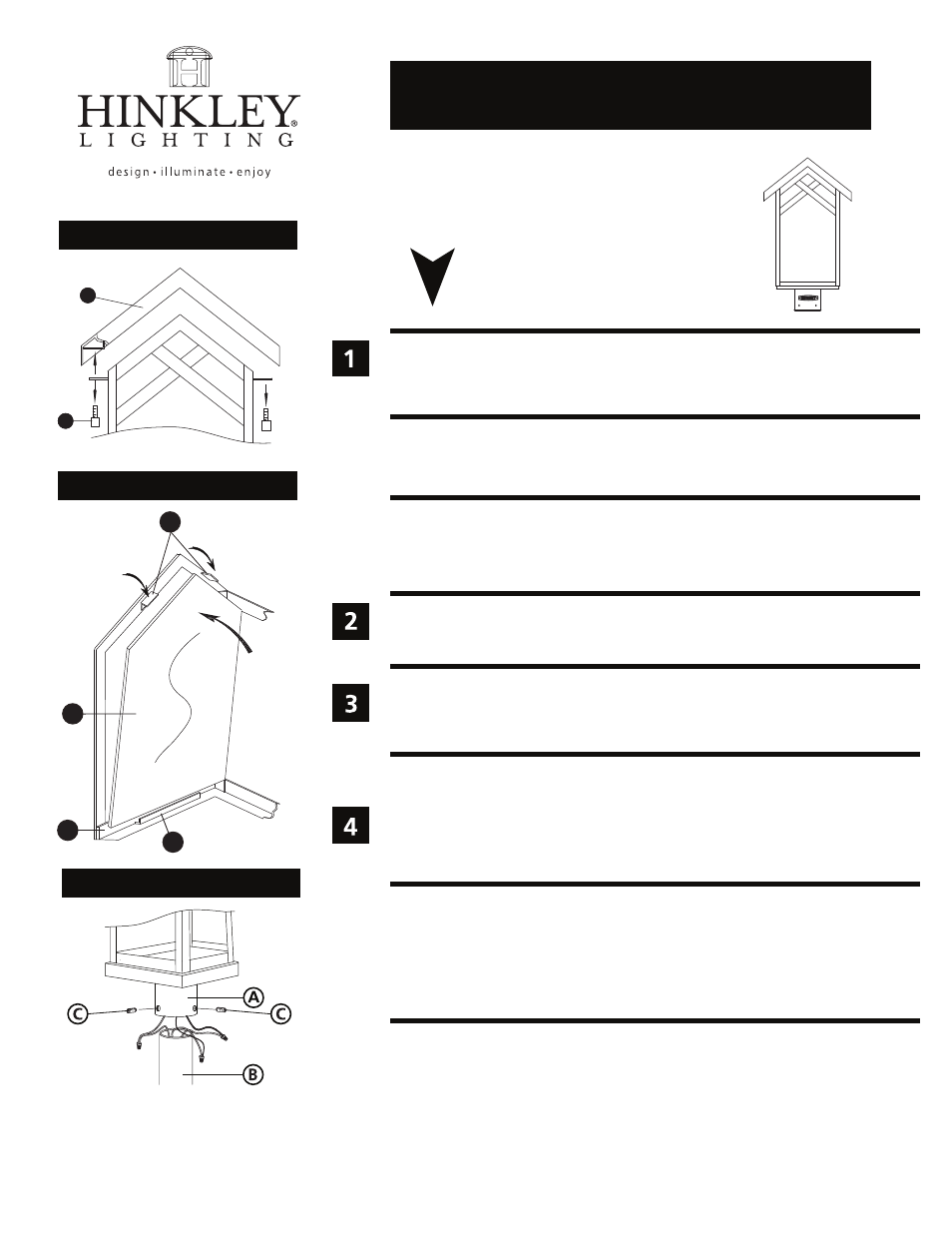

Drawing 3 - Fixture Mounting
Drawing 1 - Roof Installation
1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 3.
2. When fixture is slipped over pole make sure no wires are being pinched between the
top edge of the pole and the inside of the post fitter.
3. Thread the 3 screws (C) into pre-tapped holes in post fitter.
4. Tighten screw (C) to secure fixture to post.
01.01.13
1. To install glass, it is necessary to remove the roof (1) first. This is accomplished by first
unthreading barrel knobs with studs (2), - see Drawing 1.
2. Roof (1) can now be lifted off the cage of the fixture and glass can be installed.
Drawing 2 - Glass Installation
21
22
4
3
1
2
1. To install glass panels (2), slip them up through the open bottom of the cage (1).
- see Drawing 2.
2. Slip bottom of glass panels (2) into channel (3) in bottom of cage (1) tip top of panel
into position, and bend over clips (4) down to secure glass in cage. Repeat procedure
for remaining panels of glass.
