Star t here, Assembly instructions

background image

assembly instructions

Item No. 1741

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To assembly the main body of the fixture, first slip roof cap (2) over threaded stem (7) located on

the top of the fixture roof (1) - see Drawing 1.

2. Slip rubber washer (3) onto threaded stem (7).

3. Thread loop (4) onto threaded stem and tighten.

4. Assembly is complete and fixture my be installed. Please follow instructions below.

*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, and then mounting
the fixture to pre-installed post.

star t here

1741

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.

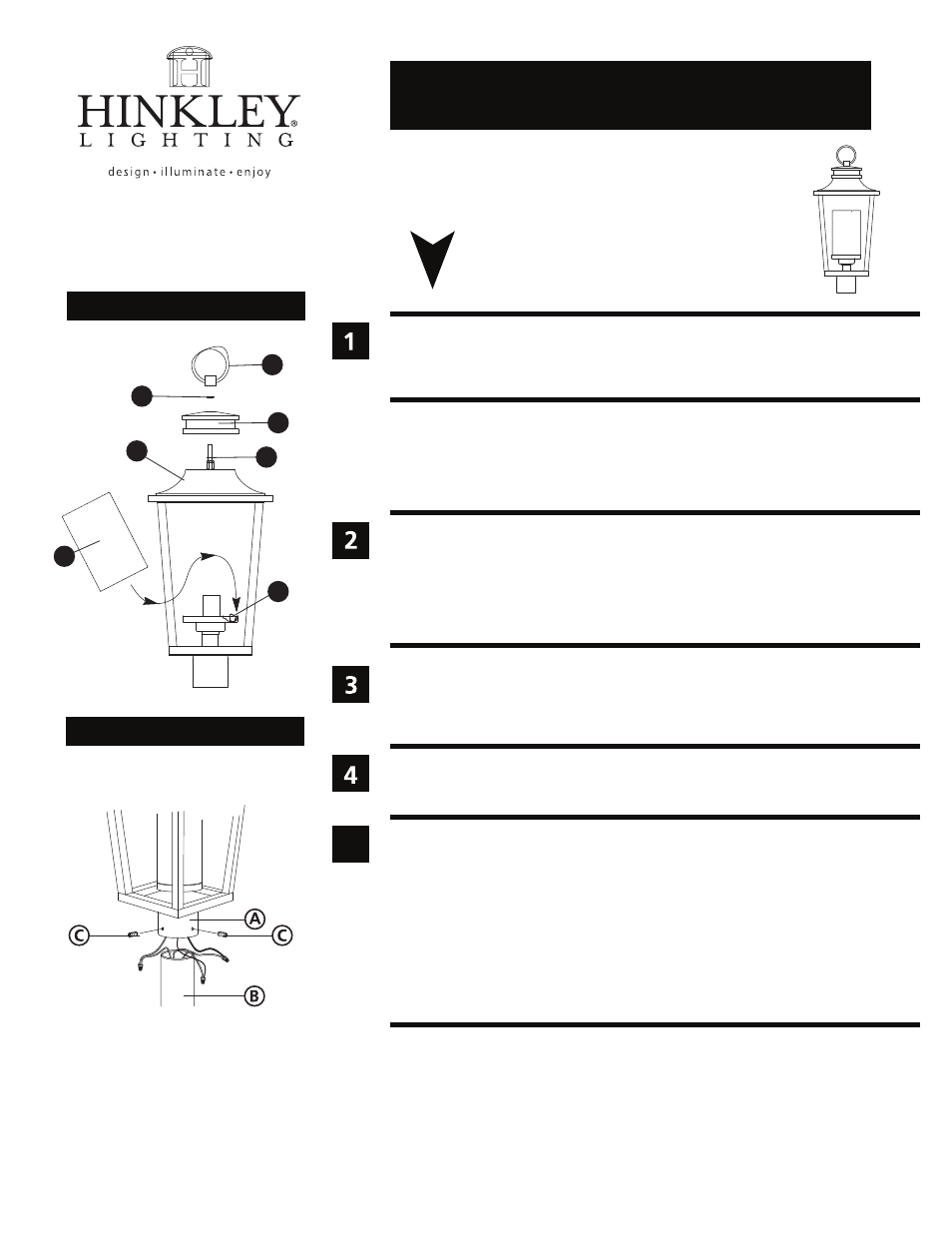

Drawing 2 - Fixture Mounting

Drawing 1 - Fixture Assembly

5

1. After wiring connections are complete, slip post fitter (A) over top of pre-installed post (B)
making sure all wire connections are tucked inside the pole - see Drawing 2.

2. When fixture is slipped over pole make sure no wires are being pinched between the top edge
of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to post.
5. After installation is complete fixture may be lamped accordingly.
6. To install glass (5), slip glass through side of cage and over socket and into glass holder. Making

sure to ingage clips (6) located in glass holder - see Drawing 1.

6.1.12

1

5

6

4

3

2

7
